| Type of Product | Basic Switch |
| Model No | Z-15GNJ55-B |
| Type | Standard |

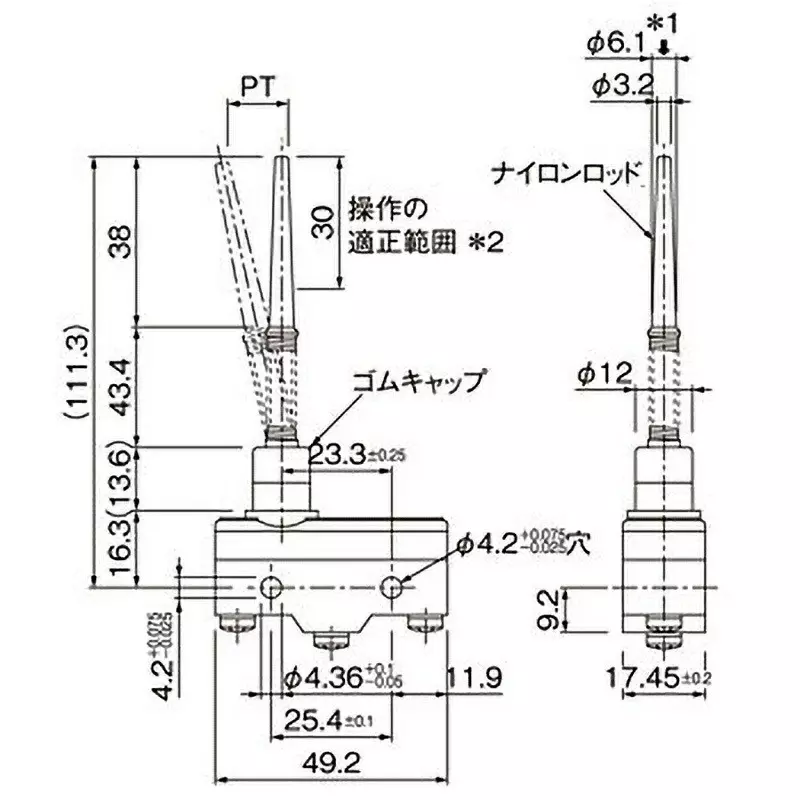

| Dimension (mm) | 120.5x49.2x17.45 |
Type of Product |
Basic Switch |
Model No |
Z-15GNJ55-B |
Type |
Standard |
Dimension (mm) |
120.5x49.2x17.45 |
Rated Voltage (V) |
AC125, 250, DC8, 14, 30, 125, 250 |
Monotaro ID |
2503751 |
Mass (g) |
About 42-48 |
Allowable Operating Speed |
1mm to 1m/s |
Terminal Type |
Screw Terminal (Internal Tooth Washer) |
Actuator Type |
Flexible Rod Type (Large Of) |
Withstand Voltage |
(Between terminals of the same polarity) AC1000V 50/60Hz 1min, (Between live metal parts and earth, between each terminal and non-live metal parts) AC2000V 50/60Hz 1min |
Mechanical Durability |
1,000,000 times or more |
Minimum Applicable Load |
DC5V 160 mA |
Protection Class |
Equivalent to IP62 (excluding terminals) |
Applicable Standard |
UL、CSA、TUV(EN61058-1)、CCC(GB14048.5) |
Lead Wire Length (mm) |
- |
Contact Configuration |
1C |
Shock Resistance |
Up to 1000m/s² |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 20 Hz, 1.5 mm return amplitude (malfunction within 1 ms) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-15-80 (no icing) |
Manufacturer Part Number |
Z-15GNJ55-B |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
Contact Resistance (ohm) |
15 or less (initial value) |
