| Type of Product | Dip Switch |
| Part No | 64-3337-42 |
| Model No | A6T-9102 |
| Electrical ratings | 24V DC 25mA, 3.5V DC 10μA (minimum current) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Dip Switch |
Part No |
64-3337-42 |
Model No |
A6T-9102 |
Electrical ratings |
24V DC 25mA, 3.5V DC 10μA (minimum current) |
Type |
Flat type (with seal tape) |
Monotaro ID |
39027317 |
Withstand Voltage |
Between terminals: AC500V 1min |
Operating Force (N) |
0.29 to 9.8 |
Electrical Durability |
1000 times or more |
Operating Humidity Range |
35 to 95% RH (at +5 to + 35 ° C) |
Operating Temperature Range |
-20 to +70℃ 60% RH or less (with no icing or condensation) |
No. of Pole |
9 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shock Resistance (Malfunction) |
300 m/s² or more |
Vibration Resistance (Malfunction) |
10-55Hz double amplitude 1.5 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (at 250 VDC) |
Contact Resistance (ohm) |
200 or less (initial value) |

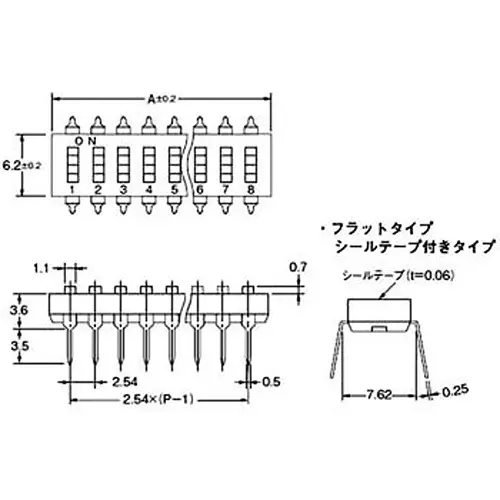

Dimension A (Φmm) |
23.8 |
