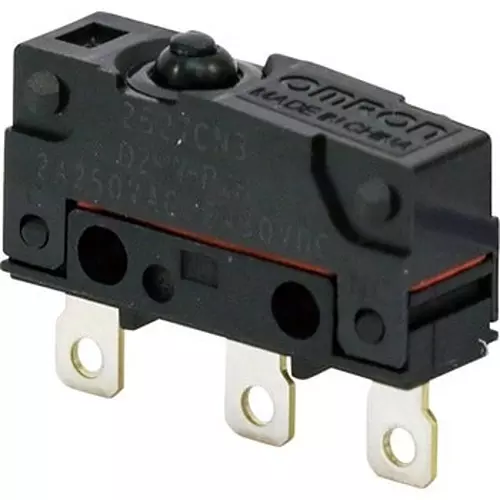

| Type of Product | Sealed Ultra-Small Basic Switch |
| Part No | 64-3352-99 |
| Model No | D2SW-P2H |
| Rated Voltage (V) | AC250 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Sealed Ultra-Small Basic Switch |
Part No |
64-3352-99 |
Model No |
D2SW-P2H |
Rated Voltage (V) |
AC250 |
Monotaro ID |
46448665 |
Mass (g) |
About 2 |
Allowable Operating Speed |
0.1 mm to 500 mm/s |
Electric Shock Protection Class |
ClassⅠ |
Terminal Type |
Solder terminal |
Actuator Type |
Pin push button type |
Mechanical Durability |
1,000,000 times or more (60 times / min) |
Minimum Applicable Load |
DC5 V 160 mA |
Inrush current (A) |
Normally closed/normally open: Max. 6 |
Electrical Durability |
Over 200,000 times (20 times/min) |
Protection Class |
Terminal type: IEC IP67 (excluding terminals), Lead wire type: IEC IP67 |
Operating Temperature Range |
-20 to 70℃ 60% RH or less (but no freezing or condensation) |
Withstand voltage (V / min) |
Between terminals of the same polarity: AC600 (50/60Hz), Between live metal parts and earth: AC1500 (50/60Hz), Between each terminal and non-live metal parts: AC1500 (50/60Hz) |
Contact Specifications |
1c (double throw type) |
Rated Carrying Current (A) |
2 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V insulation resistance meter) |
Contact Resistance (ohm) |
Terminal type: 100 or less, Lead wire type: 150 or less (initial value) |
Operating Humidity (％) |
85 % RH or less (at 5 to 35°C) |
