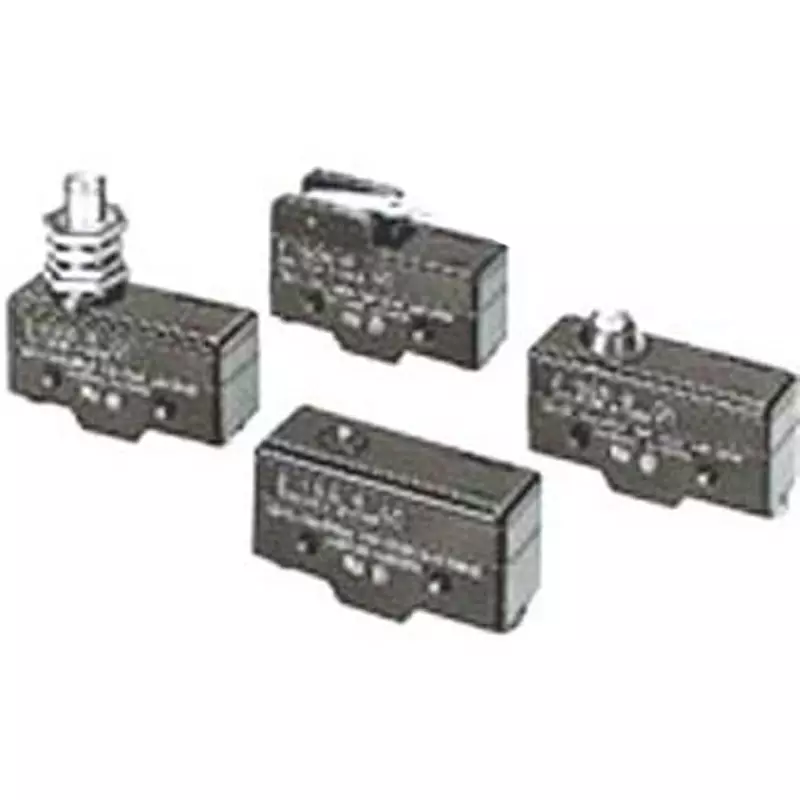

| Type of Product | Basic Switch |
| Model No | Z-15G-B |
| Dimension | 24.2x49.2x17.45 mm |
| Type | Standard |
Type of Product |
Basic Switch |
Model No |
Z-15G-B |
Dimension |
24.2x49.2x17.45 mm |
Type |
Standard |
Rated Voltage (V) |
AC125, 250, 500, DC8, 14, 30, 125, 250 |
Monotaro ID |
2503681 |
Mass (g) |
About 22-58 |
Terminal Type |
Screw Terminal (Internal Tooth Washer) |

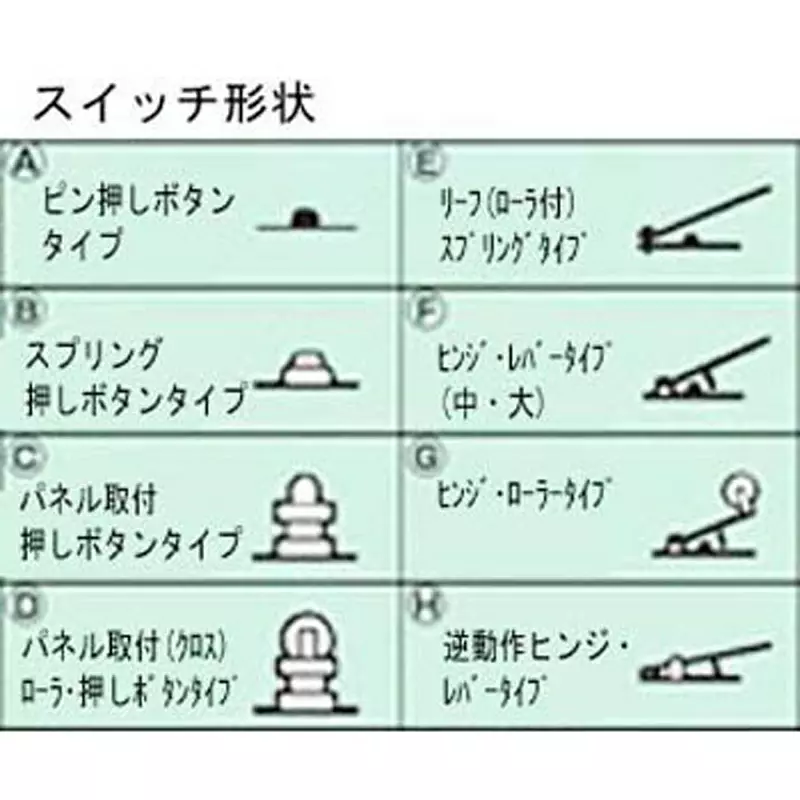

Actuator Type |
Pin Push Button Type |
Withstand Voltage |
Between Terminals Of The Same Polarity: Ac1000 (50/60 Hz) Between Live Metal Parts And Earth, Between Each Terminal And Non-Live Metal Parts: Ac2000 (50/60 Hz) |
Protection Class |
General type (IP00) |
Applicable Standard |
UL, CSA, TUV (EN61058-1), CCC (GB14048.5) |
Lead Wire Length (mm) |
- |
Contact Configuration |
1C |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Trusco Part No. |
102-0986 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Category |
Basic Switch |
