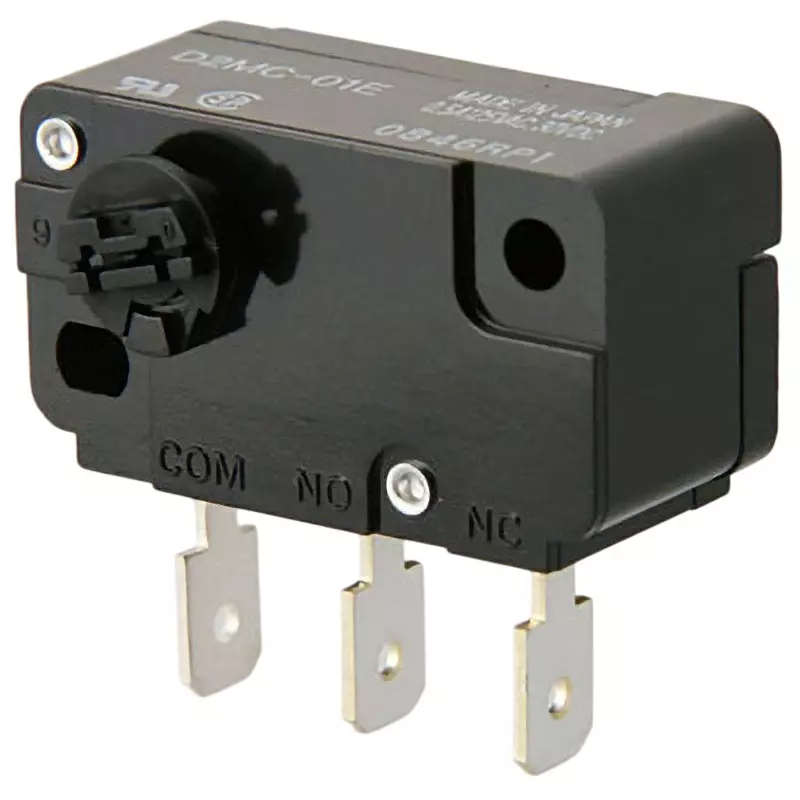

| Type of Product | Light Torque Basic Switch |
| Model No | D2MC-01E |
| Rated Voltage (V) | DC30 |
| Monotaro ID | 39036435 |
Type of Product |
Light Torque Basic Switch |
Model No |
D2MC-01E |
Rated Voltage (V) |
DC30 |
Monotaro ID |
39036435 |
Mass (g) |
About 10 |
Operation Ambient Temperature |
-25 to 85 60% RH or less (with no icing or condensation) |
Terminal Type |
#205 Tab terminal |
Insulation Resistance |
100 or more (with DC500V insulation resistance meter) |
Actuator Type |
Rotating lever type |
Withstand Voltage |
Between terminals of the same polarity: AC600V 50/60Hz 1min, Between live metal parts and earth, between each terminal and non-live metal parts: AC1500V 50/60Hz 1min |
Contact Spacing |
0.5 mm (standard value) |
Protection Class |
IEC IP40 |
Rating |
AC125V/DC30V 0.5A |
Direction of Rotation |
(Actuator) clockwise |
Contact Configuration |
1c (single pole double throw type) |
Series |
D2MC Series |
Contact Specifications |
Crossbar |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
