| Type of Product | Ultra-Compact Basic Switch |

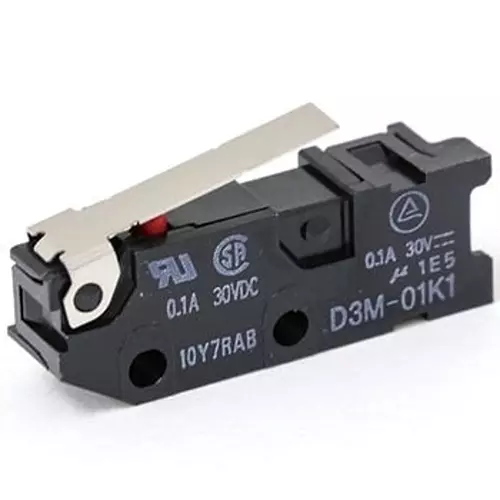

| Model No | D3M-01K1 |
| Type | Microswitch |
| Rated Voltage (V) | DC30 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Ultra-Compact Basic Switch |
Model No |
D3M-01K1 |
Type |
Microswitch |
Rated Voltage (V) |
DC30 |
Monotaro ID |
39037187 |
Mass (g) |
Approx. 2 (for pin push button type) |
Allowable Operating Speed |
0.1 mm to 1m / s (Pin pushbutton type) |
Terminal Type |
Connector terminal |
Actuator Type |
Hinge / lever type |
Withstand Voltage |
Between same-polarity terminals: AC1000V 50/60Hz 1min<br> Between live metal parts and earth, between each terminal and non-live metal parts: AC1500V 50/60Hz 1min |
Mechanical Durability |
500,000 operations or more (60 operations / min) |
Minimum Applicable Load |
DC5 V 1 mA |
Electrical Durability |
200,000 operations or more (30 operations / min) |
Protection Class |
IP40 |
Button Color |
Red |
Contact Configuration |
1b (single pole single throw - normally closed type) |
Contact Specifications |
Crossbar |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
Frequency 10 ~ 55Hz, double amplitude 1.5 mm (operating limit position) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25 to 85 60% RH or less (with no icing or condensation) |
Pack of |
1 Pcs |
Specifications |
Position close to the reference of the push button |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V insulation resistance meter) |
Contact Resistance (ohm) |
100 or less (initial value) (value including resistance of connector and lead wire (AWG # 28 length 50mm)) |
