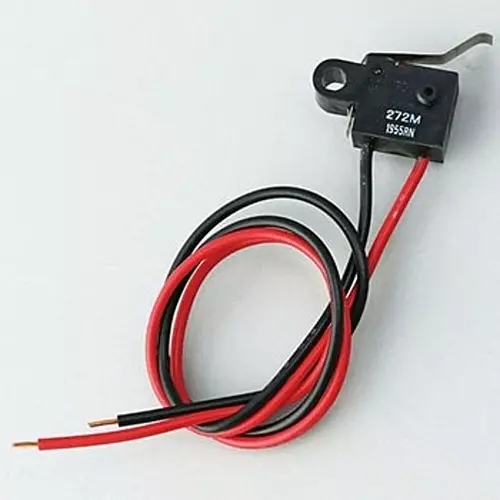

| Type of Product | M4 Mounting Seal Type Basic Switch |
| Model No | D2FW-G272M |
| Rated Voltage (V) | DC30 |
| Monotaro ID | 46431761 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
M4 Mounting Seal Type Basic Switch |
Model No |
D2FW-G272M |
Rated Voltage (V) |
DC30 |
Monotaro ID |
46431761 |
Allowable Operating Speed |
1 mm/s to 500 mm/s |
Electric Shock Protection Class |
Class I |
Terminal Type |
Lead |
Actuator Type |
Leaf lever type |
Mechanical Durability |
300,000 times or more |
Operating Force (N) |
2.4500000000000002 |
Electrical Durability |
30,000 times or more (20 times / min) |
Protection Class |
IP67 |
Resistive Load |
1A |
Type of Sign |
Screw mounting |
Contact Configuration |
1b (single pole single throw - normally closed type) |
Ambient Humidity (% RH) |
95 or less |
Operation Type |
Snap action |
Rated Carrying Current (A) |
1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Mass (Kg) |
About 0.0104 |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V insulation resistance meter) |
Contact Resistance (ohm) |
100 or less (initial value) |
Ambient Temperature (℃) |
-40 to 85 (no freezing or condensation) |
Lead Wire |
AVS0.51 core / length: 0.3m / drawer direction: downward / connection to terminal (black: COM red: NC blue: NO) |
