| Mounting | M3 screw mounting |

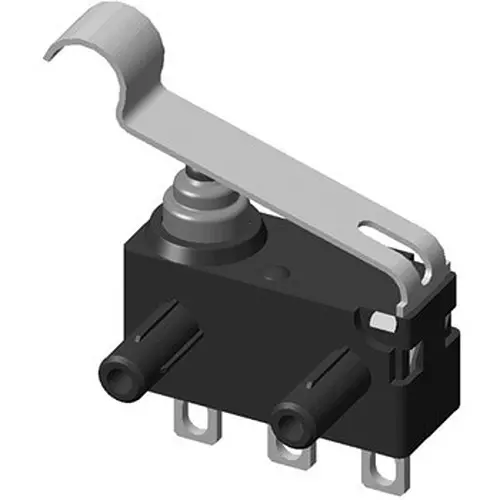

| Type of Product | Sealed Ultra-Small Basic Switch |
| Model No | D2HW-C271M |
| Rated Voltage (V) | DC5/12 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mounting |
M3 screw mounting |
Type of Product |
Sealed Ultra-Small Basic Switch |
Model No |
D2HW-C271M |
Rated Voltage (V) |
DC5/12 |
Monotaro ID |
46617173 |
Mass (g) |
Approx. 0.7 (for pin push button terminal type) |
Allowable Operating Speed |
1 mm to 500 mm / s (in case of pin push button type) |
Terminal Type |
With lead wire (underlay type) |
Actuator Type |
Earl leaf lever type |
Withstand Voltage |
Between same pole terminals: AC600V + 50 / 60Hz + 1min, between charging metal part and ground, between each terminal and non-charging metal part: AC1500V + 50 / 60Hz + 1min |
Mechanical Durability |
1,000,000 times or more (30 times/min) |
Minimum Applicable Load |
DC5 V 1 mA |
Ambient Humidity to Use |
95% RH or less (at +5 to + 35 ° C) |
Electrical Durability |
100,000 times or more (20 times / min) |
Protection Class |
IEC IP67 |
Rating |
DC5V 1mA to DC12V 2A |
Shock Resistance |
Up to 1000m / s² (operating limit position) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shock Resistance (Malfunction) |
300m / s² (operating limit position) |
Vibration Resistance (Malfunction) |
Frequency 10-55Hz, double amplitude 1.5 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-40 to 85 60% RH or less (with no icing or condensation) |
Safety Standard |
UL(UL 61058-1/cUL C22.2 No.61058-1) |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V insulation resistance meter) |
Contact Resistance (ohm) |
150 or less (initial value) |
