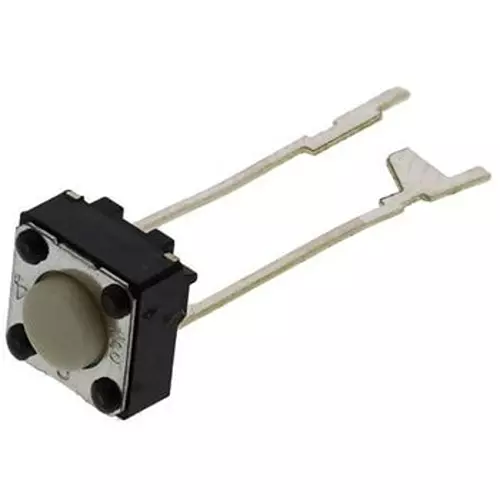

| Type of Product | Tactile Switch |
| Model No | B3F6000 |
| Type | 6mm square radial type |
| Color | (Plunger) Ivory |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Tactile Switch |
Model No |
B3F6000 |
Type |
6mm square radial type |
Color |
(Plunger) Ivory |
Dimension (mm) |
6x6x4.3 |
Monotaro ID |
47820563 |
Shape |
Blancja flat type |
Mass (g) |
About 0.25 |
Actuator Type |
Plunger |
Withstand Voltage |
AC500V 50/60Hz 1min |
Ambient Humidity to Use |
35~85% RH (at +5~+ 35 ° C) |
Contact Material |
Gold plating |
Operating Force (N) |
0.98 |
Return Force (N) |
Min 0.2 min |
Rating |
DC3~24V + 1~50mA + resistance negative |
Earth Terminal |
None |
Height (mm) |
4.3 |
Contact Configuration |
1a (normally open contact) |
Series |
Shape B3F-6000 series |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10~55Hz double amplitude 1.5 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25~+70 60% RH or less (no freezing or condensation) |
Pack of |
5 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (at 250 V DC mega) |
Contact Resistance (ohm) |
100 or less (initial value) (DC5V 1mA energized) |
