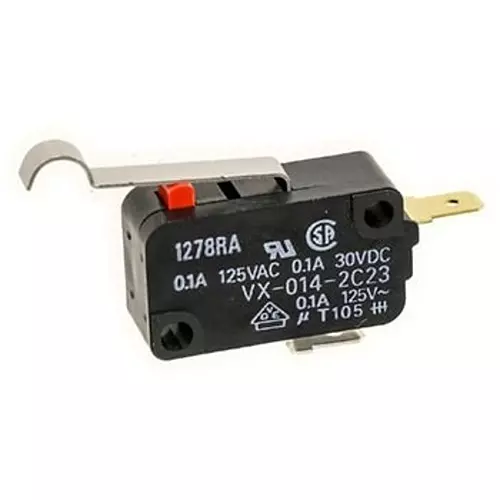

| Type of Product | Compact Basic Switch |
| Model No | VX-014-2C23 |
| Rated Voltage (V) | DC 30 |
| Monotaro ID | 66555222 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Compact Basic Switch |
Model No |
VX-014-2C23 |
Rated Voltage (V) |
DC 30 |
Monotaro ID |
66555222 |
Rated Current (A) |
0.1 |
Mass (g) |
Approx. 6.2 (for pin push button type) |
Allowable Operating Speed |
0.1 mm to 1 m/s (Pin pushbutton type) |
Electric Shock Protection Class |
ClassⅠ |
Terminal Type |
# 187 Tab terminal |
Actuator Type |
Hinge / R / lever type |
Withstand Voltage |
Between same-polarity terminals: AC1000V 50/60Hz 1min<br> Between live metal parts and earth, between each terminal and non-live metal parts: AC1500V 50/60Hz 1min<br> *When using a separator |
Mechanical Durability |
10 million times or more (60 times/min) |
Minimum Applicable Load |
DC5 V 1 mA (reference Value) |
Electrical Durability |
1,000,000 times or more (30 times/min) |
Operating Humidity Range |
85% RH or less (at 5 to 35°C) |
Protection Class |
IEC IP40 |
Operating Temperature Range |
-25 to 105°C 60% RH or less (but no freezing or condensation) |
Shock Resistance |
400 m/s ² max. (Value at the operation limit position, contact closing or opening within 1 ms) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shock Resistance (Malfunction) |
Maximum 100 m/s ² (Value at the operation limit position, contact closing or opening within 1ms) |
Vibration Resistance (Malfunction) |
Frequency 10-55Hz Double amplitude 1.5 mm (value at operating limit position, contact closed or open within 1ms) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Insulation Resistance (MOhm) |
100 or more (with DC500 V insulation resistance meter) |
Contact Resistance (ohm) |
50 or less (initial value) |
Location |
Lever: A position far from the push button (standard position) |
