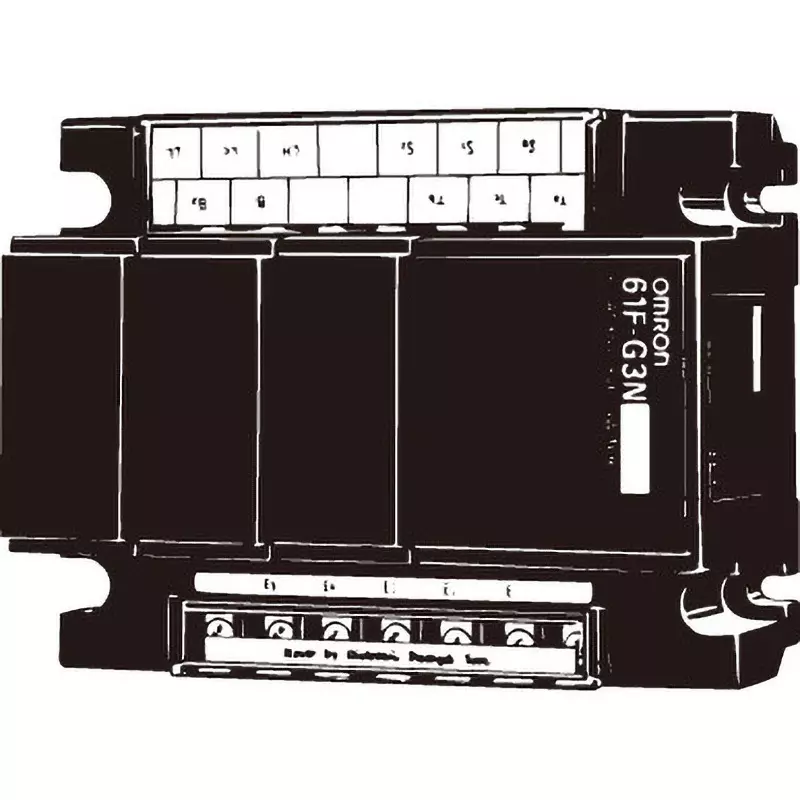

| Type of Product | Floatless Level Switch |
| Model No | 61F-G3NL-AC110/220-2KM |
| Output | AC200 V 3 A (Resistive Load) |
| Rated Voltage (V) | AC110/220 |
Type of Product |
Floatless Level Switch |
Model No |
61F-G3NL-AC110/220-2KM |
Output |
AC200 V 3 A (Resistive Load) |
Rated Voltage (V) |
AC110/220 |
Monotaro ID |
46486492 |
Mass (g) |
625 g |
Operation Ambient Temperature |
-10°C to 55°C |
Insulation Resistance |
100 mΩ or more (with DC 500 V Mega) |
Withstand Voltage |
AC2000 V/min 50/60 Hz |
Ambient Humidity to Use |
45~85%RH |
Suitable Cable |
2 km or less |
Voltage between Electrodes |
AC8 V |
Power Consumption (VA) |
5.5 VA or less |
Allowable Voltage Fluctuation |
Rated Voltage: 85 to 110% |
Frequency (Hz) |
50/60 Hz |
Width (mm) |
125 |
Length (mm) |
65 mm |
Height (mm) |
100 mm |
Service Life |
Electrical: 250000 times or more | Mechanical: 10 million times or more |
Current (mA) |
290 |
Country of Origin |
JAPAN |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
