| Type of Product | Dip Switch |
| Part No | 64-3337-60 |
| Model No | A6TN-8101 |
| Electrical ratings | 24V DC 25mA, 3.5V DC 10μA (minimum current) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Dip Switch |
Part No |
64-3337-60 |
Model No |
A6TN-8101 |
Electrical ratings |
24V DC 25mA, 3.5V DC 10μA (minimum current) |
Type |
Flat type |
Color |
(Strike) White |
Monotaro ID |
39027396 |
Mass (g) |
1.1000000000000001 |
Withstand Voltage |
Between terminals: 300 VAC 1 min |
Operating Force (N) |
0.98 to 7.9 |
Electrical Durability |
1000 times or more |
Operating Humidity Range |
35 to 95% RH (at +5 to + 35 ° C) |
Operating Temperature Range |
-30 to +85℃ 60% RH or less (with no icing or condensation) |
No. of Pole |
8 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shock Resistance (Malfunction) |
490 m/s² or more |
Vibration Resistance (Malfunction) |
10-55Hz double amplitude 1.5 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (at 100 V DC) |
Contact Resistance (ohm) |
200 or less (initial value) |

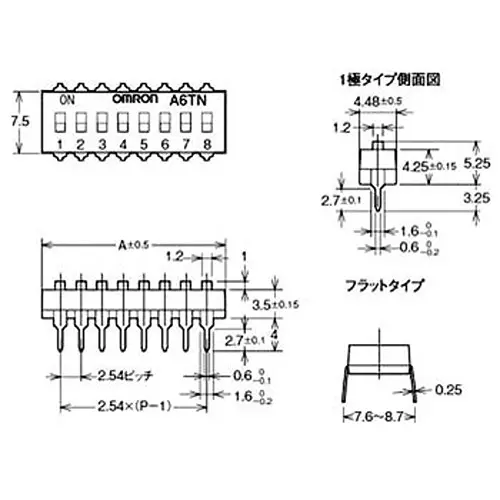

Dimension A (Φmm) |
22.3 |
