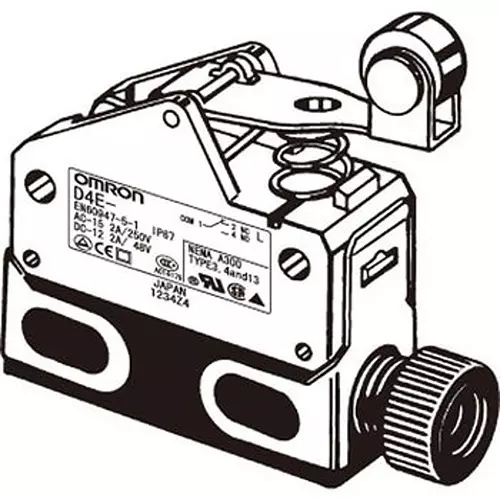

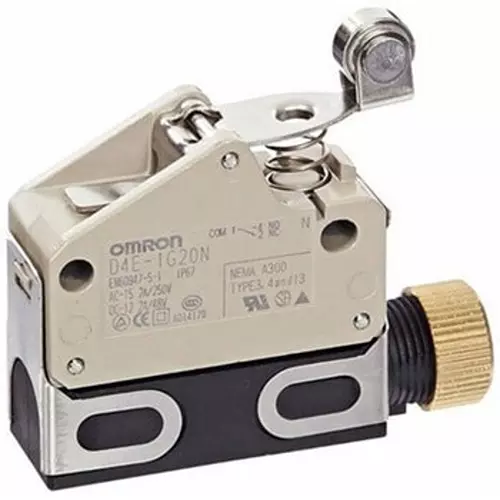

| Type of Product | Sealed Switch |
| Model No | D4E-2G20N |
| Electrical ratings | AC125V 0.1A |
| Type | Compact sealed switch |
Type of Product |
Sealed Switch |
Model No |
D4E-2G20N |
Electrical ratings |
AC125V 0.1A |
Type |
Compact sealed switch |
Monotaro ID |
46541957 |
Shape |
General-purpose horizontal type |
Allowable Operating Speed |
0.1 mm to 0.5m/s |
Electric Shock Protection Class |
Class II (double insulation with no grounding required) |
Terminal Type |
Screw terminal type, no cable, micro load type |
Actuator Type |
Roller lever type |
Withstand Voltage |
Between same-polarity terminals: AC1000V 50/60Hz 1min<br> Between each terminal and non-current-carrying metal parts: Between each terminal and non-current-carrying metal parts: AC1500V 50/60Hz 1min |
Mechanical Durability |
10 million times or more |
Electrical Durability |
500,000 times or more (AC250V 5A resistive load)<br> 5 million times or more (DC24V 10mA resistive load) (5 to 35°C, 40 to 70% RH) |
Protection Class |
IP67 |
Rated Frequency (Hz) |
50/60 |
Operation Indicator Lamp |
None |
Rated Insulation Voltage (V) |
(Ui)250 |
Contact Configuration |
1c |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10~55Hz double amplitude 1.5 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-10-80 (no icing) |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V mega) |
Contact Resistance (ohm) |
15 or less (initial value, built-in switch only) |
