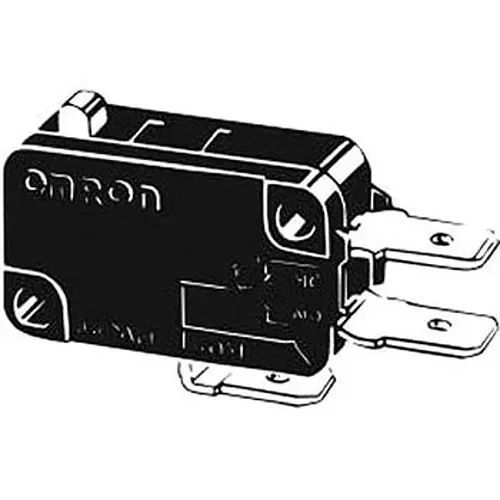

| Type of Product | Miniature Basic Switch |
| Model No | V-11-5A4 |
| Rated Voltage (V) | AC250 |
| Monotaro ID | 46527205 |
Type of Product |
Miniature Basic Switch |
Model No |
V-11-5A4 |
Rated Voltage (V) |
AC250 |
Monotaro ID |
46527205 |
Rated Current (A) |
11 |
Allowable Operating Speed |
0.1 mm to 1m / s (Pin pushbutton type) |
Heat Resistance Temperature |
105℃ |
Electric Shock Protection Class |
ClassⅠ |
Terminal Type |
Solder terminal |
Actuator Type |
Pin push button type |
Withstand Voltage |
Between same-polarity terminals: AC1000V 50/60Hz 1min<br> Between live metal parts and earth, between each terminal and non-live metal parts: AC2000V 50/60Hz 1min<br> *When using a separator |
Mechanical Durability |
50 million operations or more (60 operations / min) |
Minimum Applicable Load |
DC5 V 160 mA (reference Value) |
PTI (Proof Tracking Index) |
175 |
Inrush current (A) |
Normally closed circuit: Up to 24, normally open circuit: Up to 24 |
Electrical Durability |
300,000 operations or more (30 operations / min) |
Protection Class |
IEC IP40 |
Operating Temperature Range |
-25 to 105℃ 60% RH or less (but no freezing or condensation) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55Hz, double amplitude 1.5 mm (value at free position and operation limit position, contact closing or opening within 1ms) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V insulation resistance meter) |
Contact Resistance (ohm) |
15 or less (initial value) |
