| Mounting | Long post left |

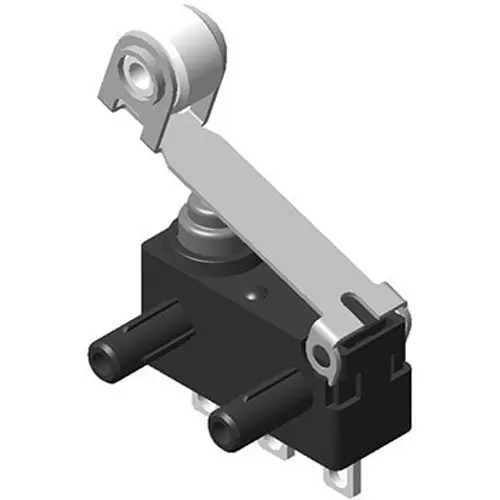

| Type of Product | Ultra-Small Basic Switch |
| Model No | D2HW-BL241H |
| Rated Voltage (V) | DC 5/12 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mounting |
Long post left |
Type of Product |
Ultra-Small Basic Switch |
Model No |
D2HW-BL241H |
Rated Voltage (V) |
DC 5/12 |
Monotaro ID |
66546786 |
Mass (g) |
Approx. 0.7 (for pin push button terminal type) |
Allowable Operating Speed |
1 mm to 500 m m/s (in case of pin push button type) |
Terminal Type |
Solder terminal |
Actuator Type |
Hinge / roller / lever type |
Withstand Voltage |
Between same pole terminals: AC600V + 50 / 60Hz + 1min, between charging metal part and ground, between each terminal and non-charging metal part: AC1500V + 50 / 60Hz + 1min |
Mechanical Durability |
1,000,000 times or more (30 times/min) |
Minimum Applicable Load |
DC5 V 1 mA |
Ambient Humidity to Use |
95% RH or less (at +5 to + 35°C) |
Electrical Durability |
100,000 times or more (20 times / min) |
Protection Class |
IEC IP67 (excluding terminals) |
Rating |
DC5 V 1 mA to DC12 V 2 Amp |
Shock Resistance |
Up to 1000 m/s ² (operating limit position) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shock Resistance (Malfunction) |
300 m/s ² (operating limit position) |
Vibration Resistance (Malfunction) |
Frequency 10-55Hz, double amplitude 1.5 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-40 to 85 60% RH or less (with no icing or condensation) |
Safety Standard |
UL(UL 61058-1/cUL C22.2 No.61058-1) |
Insulation Resistance (MOhm) |
100 or more (with DC500 V insulation resistance meter) |
Contact Resistance (ohm) |
100 or less (initial value) |
