Ships within 19 days
Type
Model No
View
View
View
View

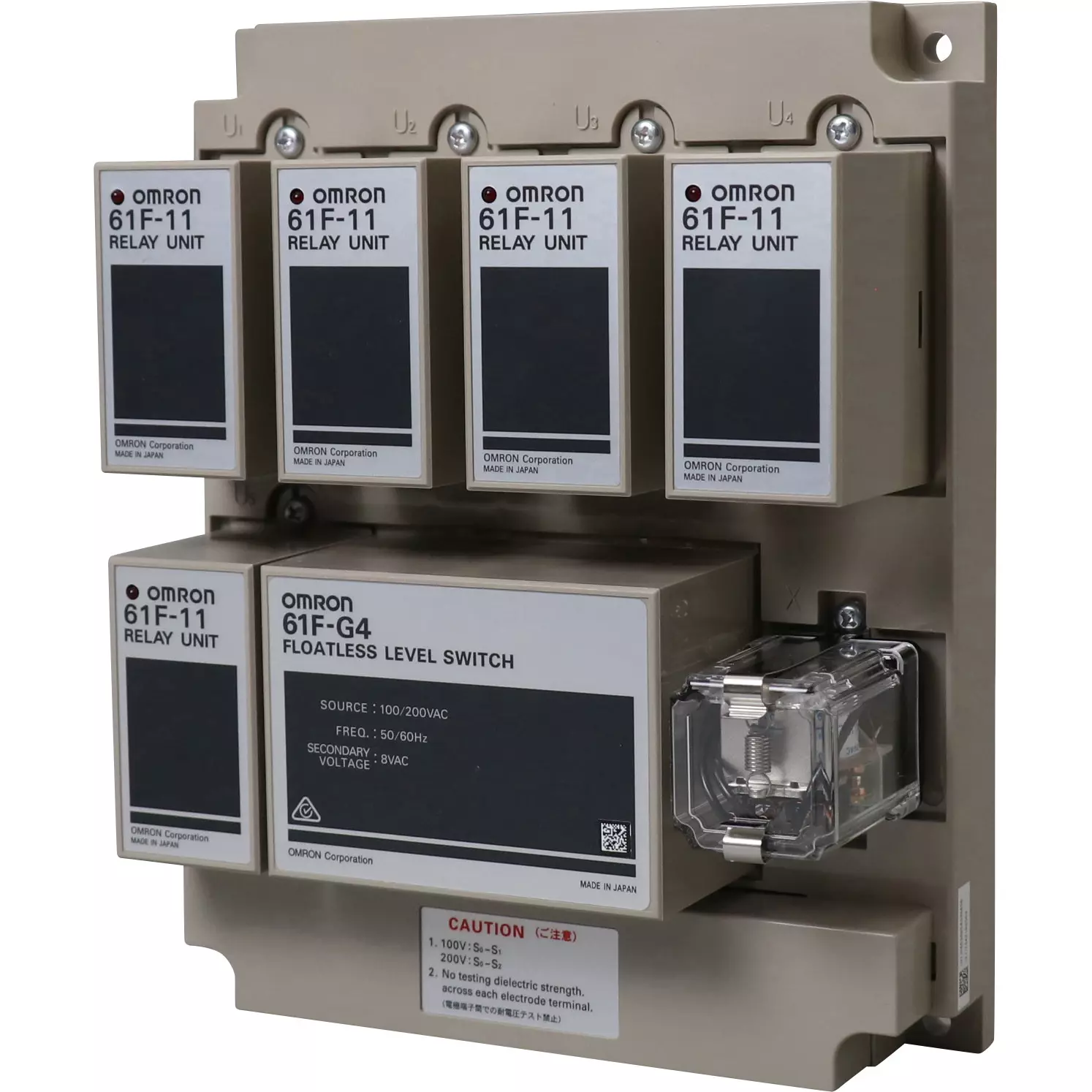

| Type of Product | Floatless switch (Base Type) |
| Model No | 61F-G4 AC100/200 |
| Output | AC220 V 5 A (Resistive Load), AC220 V 2 A (Inductive Load cosΦ = 0.4) |
| Type | G4 type |
Type of Product |
Floatless switch (Base Type) |
Model No |
61F-G4 AC100/200 |
Output |
AC220 V 5 A (Resistive Load), AC220 V 2 A (Inductive Load cosΦ = 0.4) |
Type |
G4 type |
Rated Voltage (V) |
AC100/200 |
Monotaro ID |
32648025 |
Operation Ambient Temperature |
-10°C to 55°C |
Insulation Resistance |
100 mΩ or more (with DC 500 V Mega) |
Withstand Voltage |
AC2000 V/min 50/60 Hz |
Ambient Humidity to Use |
45~85%RH |
Suitable Cable |
1 km or less |
Control Target, Condition to Use |
General Water Purification, Sewage |
Tip Shape |
Automatic Water Supply that Serves as Both Water Level and Water Level Indication and Prevention of Idling Due to Drought |
Power Consumption (VA) |
14.5 VA or less |
Allowable Voltage Fluctuation |
Rated Voltage: 85 to 110% |
Frequency (Hz) |
50/60 Hz |

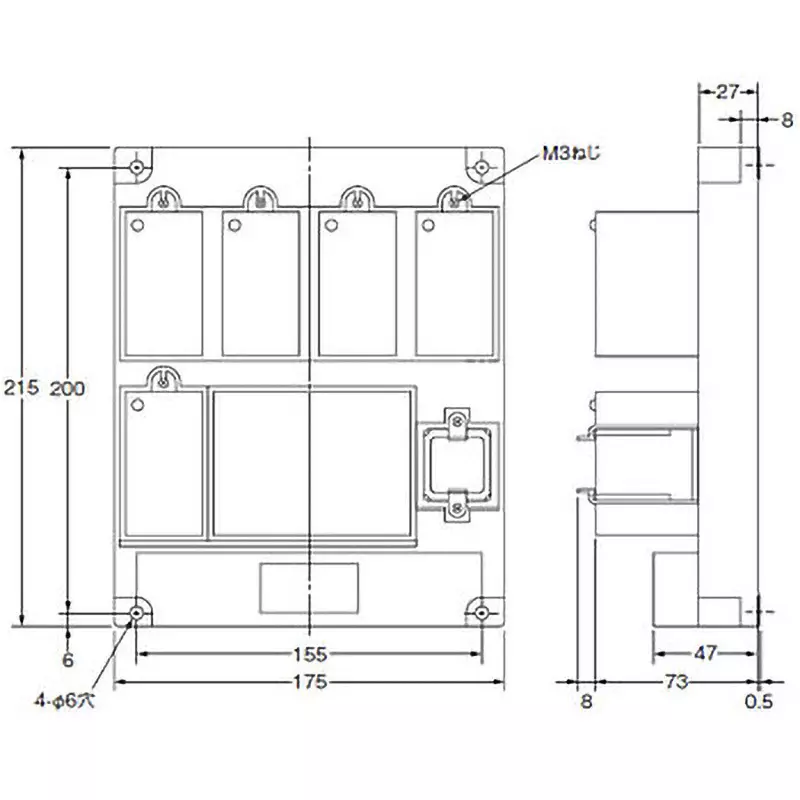

Width (mm) |
175 |
Length (mm) |
81.5 mm |
Height (mm) |
215 mm |
Service Life |
Electrical: 500000 times or more | Mechanical: 5 million times or more |
Series |
61F-G Series |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Mass (Kg) |
About 1.71 Kg |
