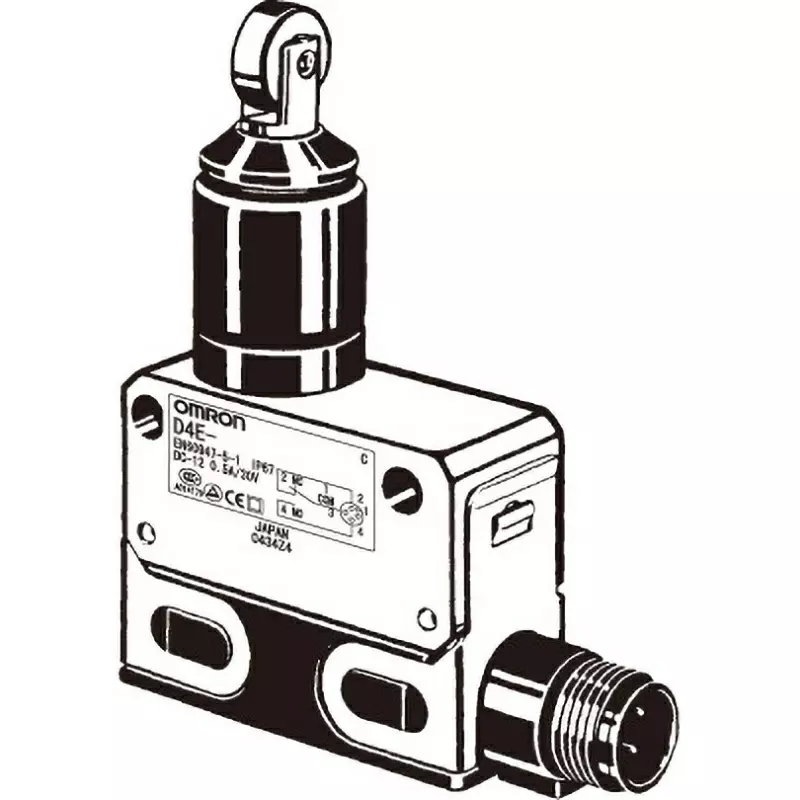

| Type of Product | Compact Sealed Switch |
| Model No | D4E-1E00N |
| Electrical ratings | AC125V 1A |
| Type | Compact SeaLED Switch |
Type of Product |
Compact Sealed Switch |
Model No |
D4E-1E00N |
Electrical ratings |
AC125V 1A |
Type |
Compact SeaLED Switch |
Monotaro ID |
46541652 |
Shape |
General-purpose horizontal type |
Operation Ambient Temperature |
-10-80 (no icing) |
Terminal Type |
AC connector type General type |
Insulation Resistance |
100 or more (with DC500V mega) |
Actuator Type |
Seal / cross / roller / plunger type |
Withstand Voltage |
Between terminals of the same polarity: AC1000 (50/60Hz) Between each terminal and non-current-carrying metal parts: Between each terminal and non-current-carrying metal parts: AC1500 (50/60Hz) |
Mechanical Durability |
10 Million Times or More |
Ambient Humidity to Use |
35~95%RH |
Contact Resistance |
15 or less (initial value, built-in switch only) |
Protection Class |
IP67 |
Rating |
AC125V 1A, DC30V 1A |
Rated Frequency (Hz) |
50/60 |
Operation Indicator Lamp |
None |
Rated Insulation Voltage (V) |
(Ui)250 |
Contact Configuration |
1c |
Country of Origin |
JAPAN |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10~55Hz double amplitude 1.5mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
