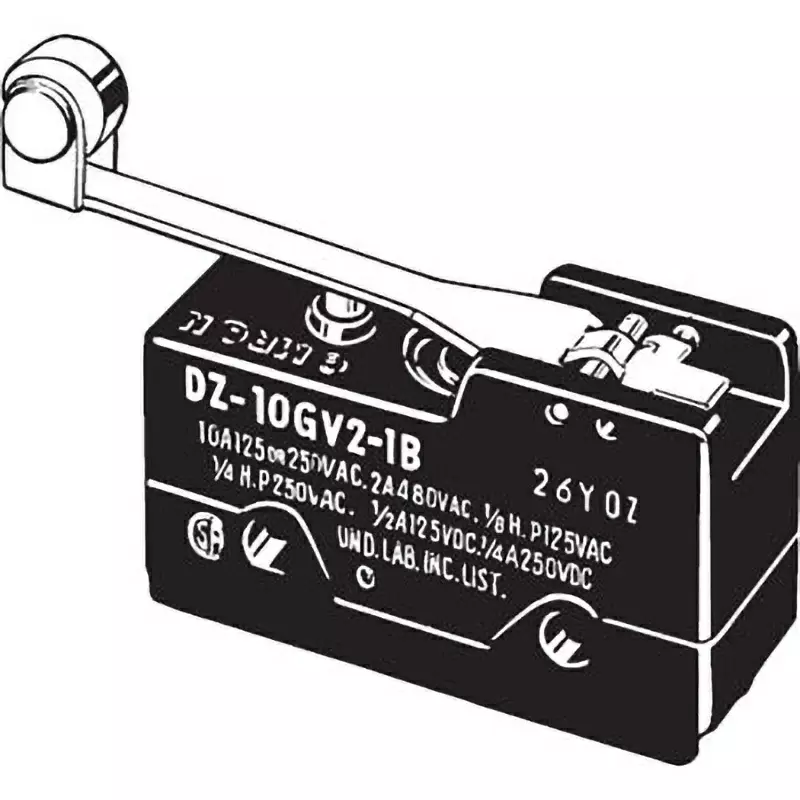

| Type of Product | Bipolar Double-Throw Basic Switch |
| Model No | DZ-10GV2-1B |
| Rated Voltage (V) | AC250 |
| Monotaro ID | 39043216 |
Type of Product |
Bipolar Double-Throw Basic Switch |
Model No |
DZ-10GV2-1B |
Rated Voltage (V) |
AC250 |
Monotaro ID |
39043216 |
Rated Current (A) |
10(AC250V) |
Mass (g) |
About 30-50 |
Terminal Type |
Screw Terminals |
Insulation Resistance |
100 or more (with DC500V insulation resistance meter) |
Actuator Type |
Hinge Roller Lever Type (Ot Small) |
Withstand Voltage |
Between terminals of the same polarity: AC1000 (50/60Hz), between live metal parts and earth, between each terminal and non-live metal parts, between terminals of different polarities: AC1500 (50/60Hz) |
Contact Spacing |
0.5 mm |
Protection Class |
IP00 |
Contact Configuration |
2C (bipole double throw type) |
Series |
DZ Series |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Category |
Basic Switch |
Operation Ambient Temperature (°C) |
-25 to 85 (but no freezing) |
