| Type of Product | Basic Switch |

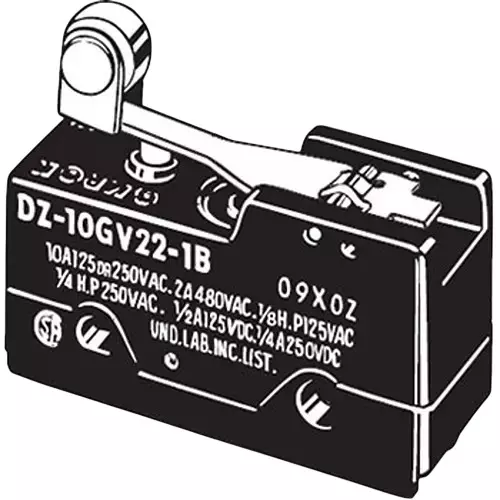

| Model No | DZ-10GV22-1B |
| Rated Voltage (V) | AC250 |
| Monotaro ID | 39043225 |
Type of Product |
Basic Switch |
Model No |
DZ-10GV22-1B |
Rated Voltage (V) |
AC250 |
Monotaro ID |
39043225 |
Rated Current (A) |
10 (AC 250 V) |
Mass (g) |
Approximately 30-50 |
Allowable Operating Speed |
0.1 mm to 1 m/s (for pin push-button type) |
Electric Shock Protection Class |
Class I |
Terminal Type |
Screw terminals |
Withstand Voltage |
Between terminals of the same polarity: AC1000V 50/60Hz 1min Between rechargeable metal parts and ground, between each terminal and non-rechargeable metal parts, Between terminals of different polarity: AC1500V 50/60Hz 1min |
Mechanical Durability |
Over 1 million times |
Contact Material |
silver alloy |
Inrush current (A) |
Normally closed: maximum 30, Normally open: maximum 15 |
Electrical Durability |
Over 500,000 times |
Movement up to operation PT |
max 3 mm |
Return Force (N) |
min 0.41 |
Operating position OP (mm) |
29.4±0.8 |
shock (malfunction) (m/s2) |
Maximum 300 (for pin push-button type) (malfunction 1ms or less) |
Contact Configuration |
2c (Dipole double-throw type) |
Withstand voltage (V / min) |
Between terminals of the same polarity: AC1000V (50/60Hz) Between rechargeable metal parts and ground, between each terminal and non-rechargeable metal parts, between terminals of different polarity: AC1500V (50/60Hz) |
Contact Spacing (mm) |
0.5 |
Vibration (Malfunction) Hz |
Frequency 10-55, Amplitude 1.5mm (Failure detection less than 1ms) |
Ambient Humidity (% RH) |
35-85 or less |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
Frequency 10-55Hz, Amplitude 1.5mm (Failure 1ms or less) |
Force |
4.22 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25 to 85 degrees Celsius (but not so cold that it freezes). |
Allowable Operating Frequency (times/min) |
Mechanical: 240, Electrical: 20 |
Insulation Resistance (MOhm) |
100 or more (measured with a DC 500V insulation resistance meter) |
Contact Resistance (ohm) |
15 or less (initial value) |
Motion of Hyperelectrics (MD) |
Maximum 0.6 mm |
Impact Resistance (Durability) (m/s²) |
max 1000 |
Protective Structure |
IP00 |
Post-operation Behavior (OT) |
Minimum 0.13 mm |
PTI (Tracking Characteristics) |
175 |
Types of Actuators |
Hinge roller short lever type (OT small) |
Procurement Type |
Direct Import from Japan |
