| Type of Product | Basic Switch |
| Model No | Z-15GW2255-B |
| Weight | 22-58 g |

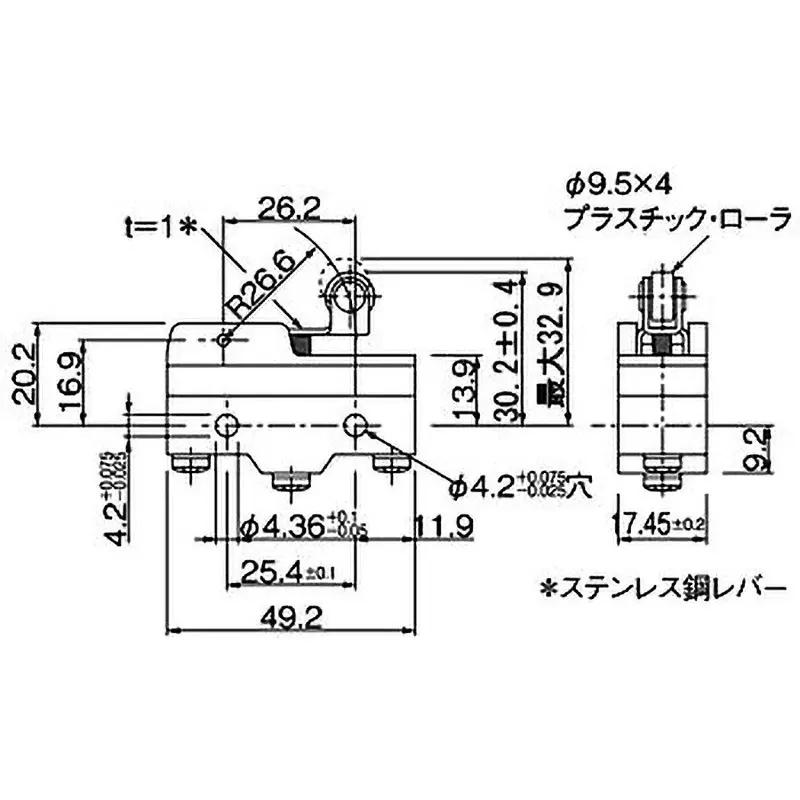

| Dimension | 42.1×49.2×17.45 mm |
Type of Product |
Basic Switch |
Model No |
Z-15GW2255-B |
Weight |
22-58 g |
Dimension |
42.1×49.2×17.45 mm |
Rated Voltage |
AC 125, 250, 500, DC 8, 14, 30, 125, 250 V |
Rated Voltage (V) |
AC125, 250, 500, DC8, 14, 30, 125, 250 |
Monotaro ID |
2503882 |
Operation Ambient Temperature |
-15-80℃ |
Allowable Operating Speed |
0.01 mm To 1 M/S (Value of Push Button) |
Terminal Type |
Screw Terminal (Internal Tooth Washer) |
Insulation Resistance |
100 or more (with DC 500 V Mega) MΩ |
Actuator Type |
Hinge, Roller, Short Lever Type |
Withstand Voltage |
(Between terminals of the same polarity) AC1000V 50/60Hz 1min (Between live metal parts and ground, each terminal and non-live metal parts) AC2000V 50/60Hz 1min |
Mechanical Durability |
20 million times or more |
Ambient Humidity to Use |
35～95%RH |
Contact Resistance |
15 mΩ or less (initial value) |
Protection Class |
Drip-proof type: Equivalent to IP62 (excluding terminals) |
Applicable Standard |
UL, CSA, TUV(EN61058-1), CCC(GB14048.5) |
Lead Wire Length (mm) |
- |
Contact Configuration |
1C |
Vibration Resistance |
10 To 55 Hz, Double Amplitude 1.5 mm (Malfunction 1 ms or Less) |
Shock Resistance |
Up to 1000m/s2 |
Country of Origin |
Japan |
Shock Resistance (Malfunction) |
300 m / S2 (malfunction within 1ms) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
