Ships within 19 days
Model No
View
View
View
View
| Type of Product | Basic Switch |

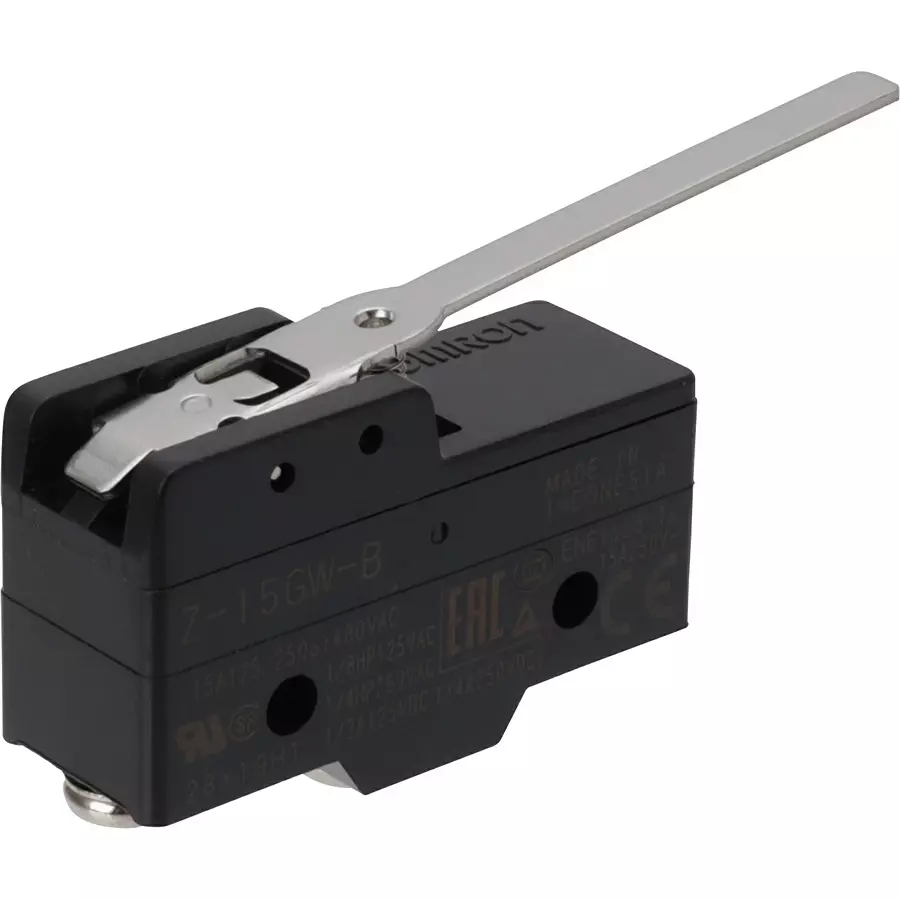

| Model No | Z-15GW-B |

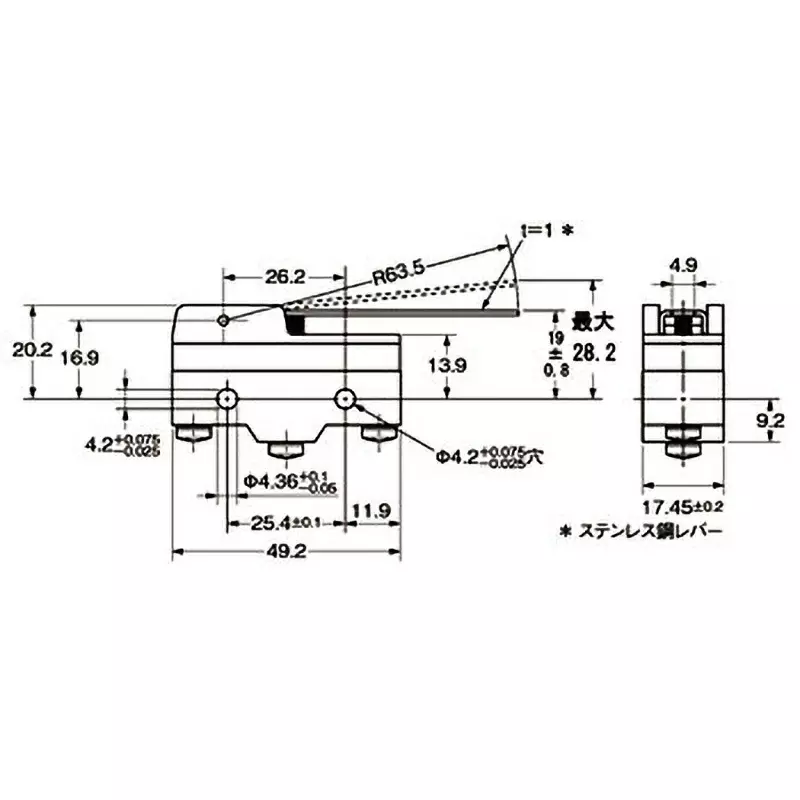

| Dimension | 37.4x49.2x17.45 mm |
| Type | Standard |
Type of Product |
Basic Switch |
Model No |
Z-15GW-B |
Dimension |
37.4x49.2x17.45 mm |
Type |
Standard |
Rated Voltage (V) |
AC125, 250, 500, DC8, 14, 30, 125, 250 |
Monotaro ID |
2504047 |
Terminal Type |
Screw Terminal (Internal Tooth Washer) |
Actuator Type |
Hinged Lever Type (Small Of) |
Withstand Voltage |
(Between Terminals Of The Same Polarity) Ac1000V 50/60 Hz 1Min, (Between Live Metal Parts And Earth, Between Each Terminal And Non-Live Metal Parts) Ac2000V 50/60 Hz 1Min |
Protection Class |
General type (IP00) |
Applicable Standard |
UL, CSA, TUV (EN61058-1), CCC (GB14048.5) |
Lead Wire Length (mm) |
- |
Contact Configuration |
1C |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Trusco Part No. |
102-0943 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Category |
Basic Switch |
