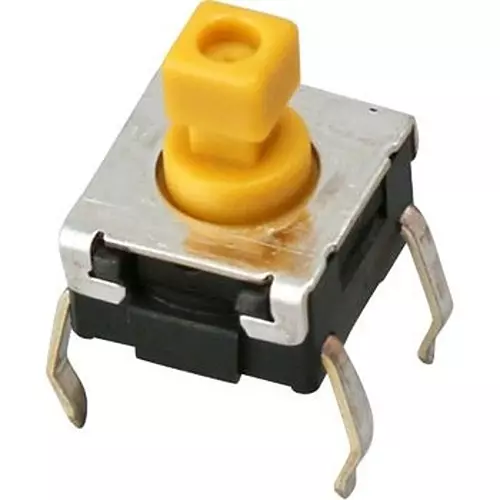

| Type of Product | Tactile Switch |
| Part No | 64-3342-82 |
| Model No | B3W-1052 |
| Electrical ratings | DC3 ~ 24V + 1 ~ 50mA + Resistive load |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Tactile Switch |
Part No |
64-3342-82 |
Model No |
B3W-1052 |
Electrical ratings |
DC3 ~ 24V + 1 ~ 50mA + Resistive load |
Type |
6mm square B3W-1000 series (plunger: convex type) |
Color |
(Plunger) Yellow |
Monotaro ID |
39029383 |
Mass (g) |
About 0.3 |
Withstand Voltage |
AC500V 50/60Hz 1min |
Operating Force (N) |
2.2599999999999998 |
Return Force (N) |
RF: minimum 0.49 |
Operating Humidity Range |
35~85% RH (at +5~+ 35 ° C) |
Earth Terminal |
None |

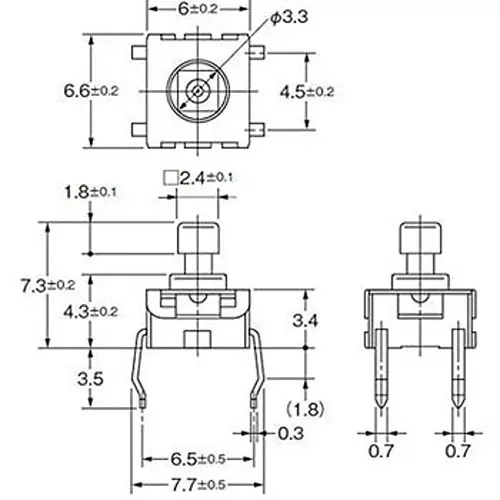

Height (mm) |
7.3 |
Durability |
300,000 times or more |
Operating Temperature Range |
-25~+70℃ 60% RH or less (no freezing or condensation) |
Contact Configuration |
1a (normally open contact) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shock Resistance (Malfunction) |
Up to 100 m/s² |
Pretravel (PT) |
0.25(-0.1 to +0.2) mm |
Vibration Resistance (Malfunction) |
10-50Hz, double amplitude 1.5 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Shock Resistance (m/s²) |
Up to 1000 |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (at 250 V DC mega) |
Contact Resistance (ohm) |
100 or less (initial value) (Rated DC5V 1mA) |
