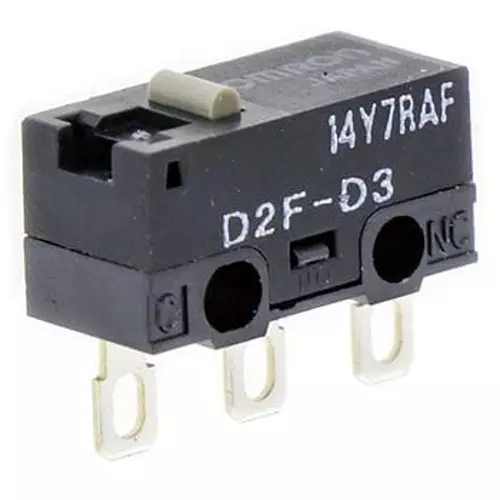

| Type of Product | Ultra-Small Basic Switch |
| Model No | D2F-D3 |
| Rated Voltage (V) | AC125, DC30 |
| Monotaro ID | 46503396 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Ultra-Small Basic Switch |
Model No |
D2F-D3 |
Rated Voltage (V) |
AC125, DC30 |
Monotaro ID |
46503396 |
Allowable Operating Speed |
1 to 500 mm/s |
Terminal Type |
Solder terminal |
Actuator Type |
Pin push button type |
Withstand Voltage |
Between same pole terminals: AC600V 50 / 60Hz 1min Between charging metal part and ground, between each terminal and non-charging metal part: Between each terminal and non-charging metal part AC1500V 50 / 60Hz 1min |
Mechanical Durability |
1,000,000 times or more (60 times / min) |
Minimum Applicable Load |
DC5 V 100 mA |
Ambient Humidity to Use |
85% RH or less (at +5~+ 35 ° C) |
Electrical Durability |
30,000 times or more (30 times / min) |
Protection Class |
IP40 |
Contact Type |
1c (double throw type) |
Resistive Load |
(AC125V)3A, (DC30V)2A |
Contact Configuration |
1c (single pole double throw type) |
Contact Specifications |
Crossbar |
Rated Carrying Current (A) |
3 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
Frequency 10 ~ 55Hz, double amplitude 1.5 mm (free position and limit position) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-40 to +85 60% RH or less (with no icing or condensation) |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V insulation resistance meter) |
Contact Resistance (ohm) |
30 or less (initial value) |
