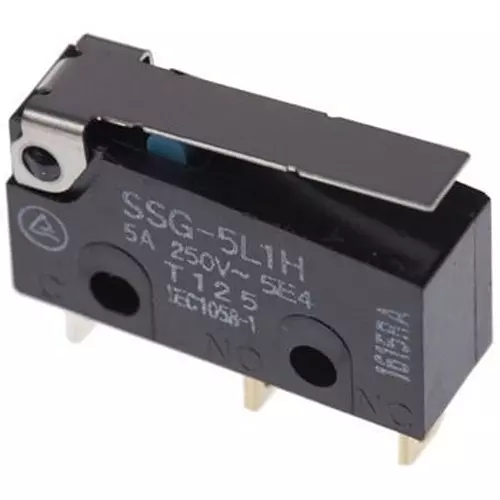

| Type of Product | Subminiature Micro Switch |
| Model No | SSG-5L1H |
| Monotaro ID | 47905053 |
| Terminal Type | Solder |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Subminiature Micro Switch |
Model No |
SSG-5L1H |
Monotaro ID |
47905053 |
Terminal Type |
Solder |
Actuator Type |
Hinge lever |
Contact Material |
Silver |
Operating Force (N) |
0.6 |
RoHS Directive |
Correspondence |
Protection Class |
IP40 |
Mechanical Life |
10 million times Operations |
Operating Temperature Range |
-25 to 125℃ |
Contact Configuration |
SPDT-NO/NC |
Contact Current Rating |
5 Amp |
Release Force (N) |
0.06 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Specifications |
UL, CSA, VDE, TUV, BEAB, IMQ. Subminiature microswitches. Subminiature microswitches housed in a V4 style housing. Compliant with EN61058-1 for RoHS Substrate terminal models are solvent resistant and have a wide operating temperature range. -25→+125℃ Contact configuration SPDT dimensions (body) H9.9 mm, W19.8 mm, D6.4 mm |
Contact Rated Voltage (V) |
AC125/DC14 |
