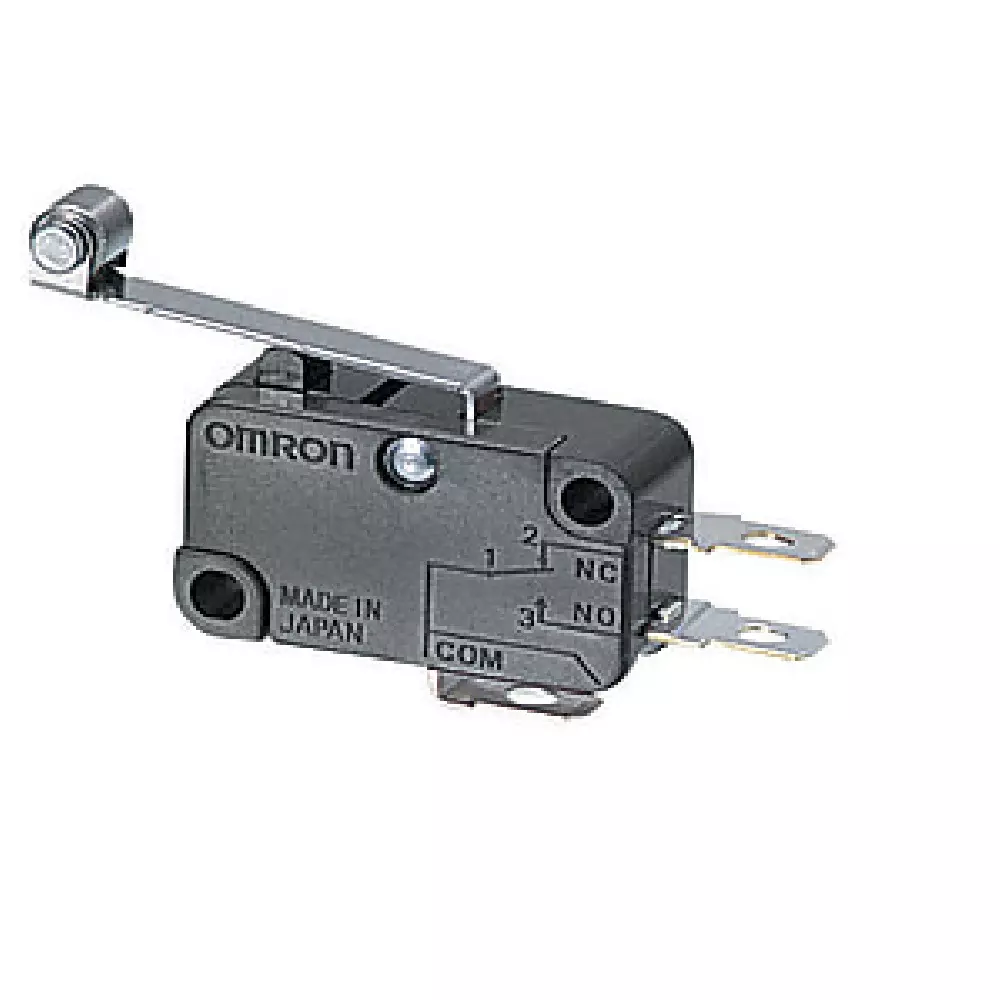

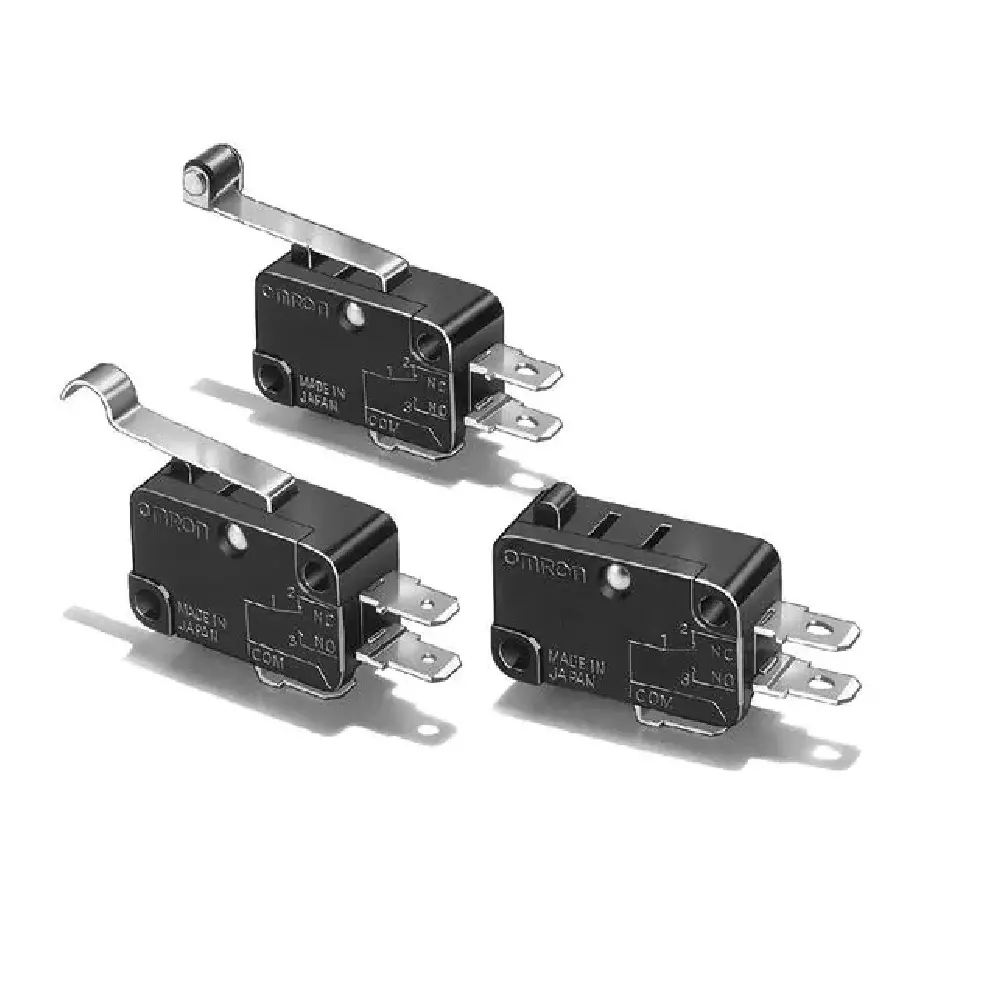

| Type of Product | Compact Basic Switch V |
| Rated Voltage (V) | AC250 |
| Monotaro ID | 39098927 |
| Rated Current (A) | 15 |
Type of Product |
Compact Basic Switch V |
Rated Voltage (V) |
AC250 |
Monotaro ID |
39098927 |
Rated Current (A) |
15 |
Allowable Operating Speed |
0.1mm to 1m / s (Pin pushbutton type) |
Heat Resistance Temperature |
105 |
Electric Shock Protection Class |
ClassⅠ |
Terminal Type |
# 187 Tab terminal |
Insulation Resistance |
100 or more (with DC500V insulation resistance meter) |
Actuator Type |
Pin push button type |
Withstand Voltage |
同極端子間：AC1000V 50/60Hz 1min 充電金属部とアース間、各端子と非充電金属部間：AC1500V 50/60Hz 1min ※セパレータ使用時 |
Mechanical Durability |
50 million operations or more (60 operations / min) |
Minimum Applicable Load |
DC5V 160mA (reference value) |
Allowable Operation Frequency |
Mechanical: 600 times / min (for pin push button type), Electrical: 60 times / min |
Contact Spacing |
Standard value: 1mm (F gap) |
PTI (Proof Tracking Index) |
175 |
Contact Material |
Silver alloy |
Vibration Resistance (Mis-operation) |
10 to 55Hz, double amplitude 1.5mm (value at free position and operation limit position, contact closing or opening within 1ms) |
Operating Force (N) |
Up to 1.96 |
Inrush current (A) |
Normally closed circuit: Up to 36, normally open circuit: Up to 36 |
Contact Resistance |
15 or less (initial value) |
Electrical Durability |
100,000 times or more (30 times / min) |
Return Force (N) |
RF: minimum 0.49 |
Operating Humidity Range |
85% RH or less (at 5 to 35 ° C) |
Contact Type |
1c (double throw type) |
Resistive Load |
AC250V + 15A, DC125V + 0.6A, DC250V + 0.3A (ambient temperature: 20 ± 2 ℃, ambient humidity: 65 ± 5% RH, operating frequency: 30 times / min) |
Rated Resistance Load Current (A) |
15 |
Shock Resistance |
1000m / s <sup>2</sup> max. (Value at free position and operation limit position, contact closing or opening within 1ms) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
