| Battery Type | 6S Li-ion (18650) |
| Type of Product | BMS Protection Board with Cell Balancing |
| Material | PCB & Electronic Components |
| Model No | 1xBAT-6S-14A-Li-Ion |
Battery Type |
6S Li-ion (18650) |
Type of Product |
BMS Protection Board with Cell Balancing |
Material |
PCB & Electronic Components |
Model No |
1xBAT-6S-14A-Li-Ion |
Internal Resistance |
= 20 mΩ |
Operating Temperature |
-20 °C to +80 °C |
Nominal Voltage |
22.2 V |
Country of Origin |
India |
Current Rating |
14 Amp (Up to 20 Amp) |
Name of Manufacturer/Packer/Importer |
AMICIKART ONLINE SERVICES PRIVATE LIMITED |
Special Features |

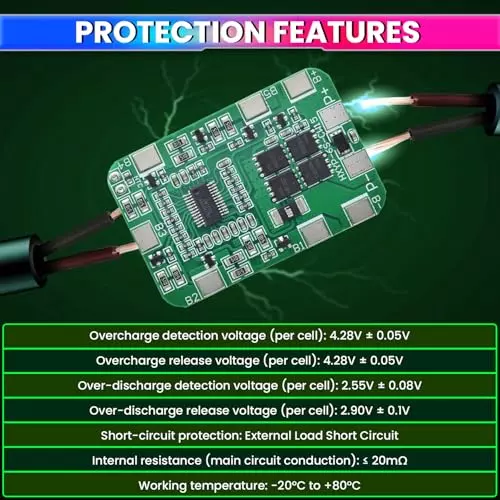

Overcharge, Over-Discharge, Short Circuit Protection |
Maximum Charge Voltage (V) |
25.2 V |
Over Discharge Protection Voltage |
2.55V ± 0.08V |
Cell Balancing |
Yes |
Overcharge Protection |
4.28 V ± 0.05 V |
