| Type of Product | Ball Bearing for Unit |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | NTN Corporation |
| Model No | UCS203LN |
Type of Product |
Ball Bearing for Unit |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Model No |
UCS203LN |
Shape |
Cylindrical hole type |
Shank Diameter (Φmm) |
17 |
Import Country |
Direct Import from Japan |
Monotaro ID |
407775 |
Load Rank |
For light loads |

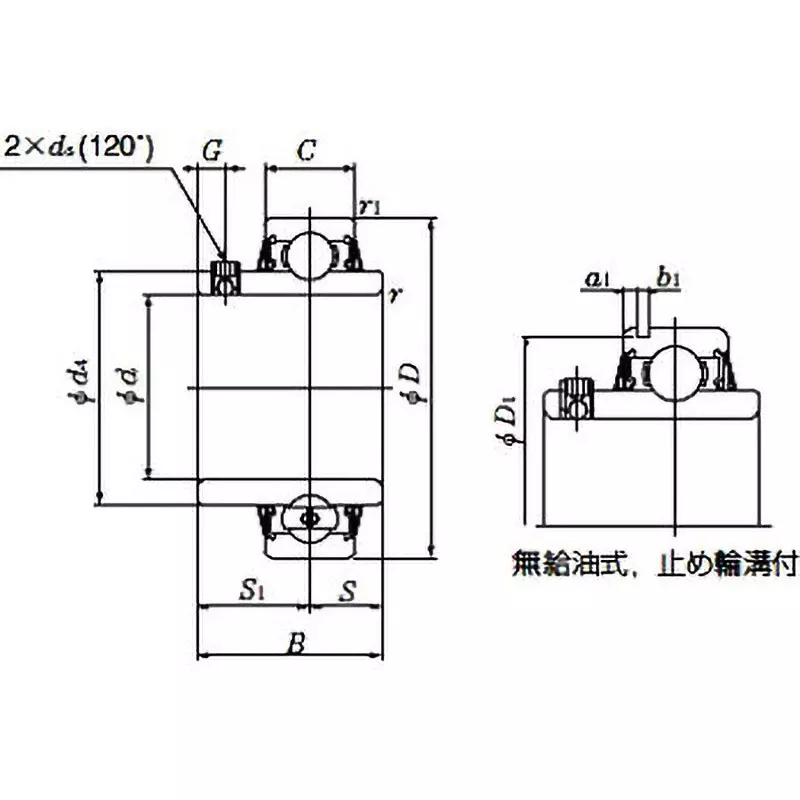

Dimensions C (mm) |
17 |
Dimensions B (mm) |
1.5 |
Dimension D1 (mm) |
44.6 |
Outer Diameter D (Φmm) |
47 |
Dimension d4 (mm) |
29.6 |
Width B (mm) |
31 |
Dimension S1 (mm) |
18.3 |
Mass (Kg) |
0.18 (reference) |
Dimensions g (mm) |
4.5 |
Dimension S |
12.7 mm |
Dimension ds (mm) |
M5×0.8 |
Basic Static Load Rating (kN) |
6.65 |
Basic Dynamic Load Rating (kN) |
12.8 |
Inner Diameter d (Φmm) |
17 |
Dimensions A (mm) |
3.1 |
Chamfer Dimension r1 (mm) |
0.6 (minimum) |
Mass (g) |
180 g (reference) |
