| Type of Product | Ball Bearing for Unit |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | NTN Corporation |
| Model No | UCS210LN |
Type of Product |
Ball Bearing for Unit |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Model No |
UCS210LN |
Shape |
Cylindrical hole type |
Shank Diameter (Φmm) |
50 |
Import Country |
Direct Import from Japan |
Monotaro ID |
407845 |
Load Rank |
For light loads |

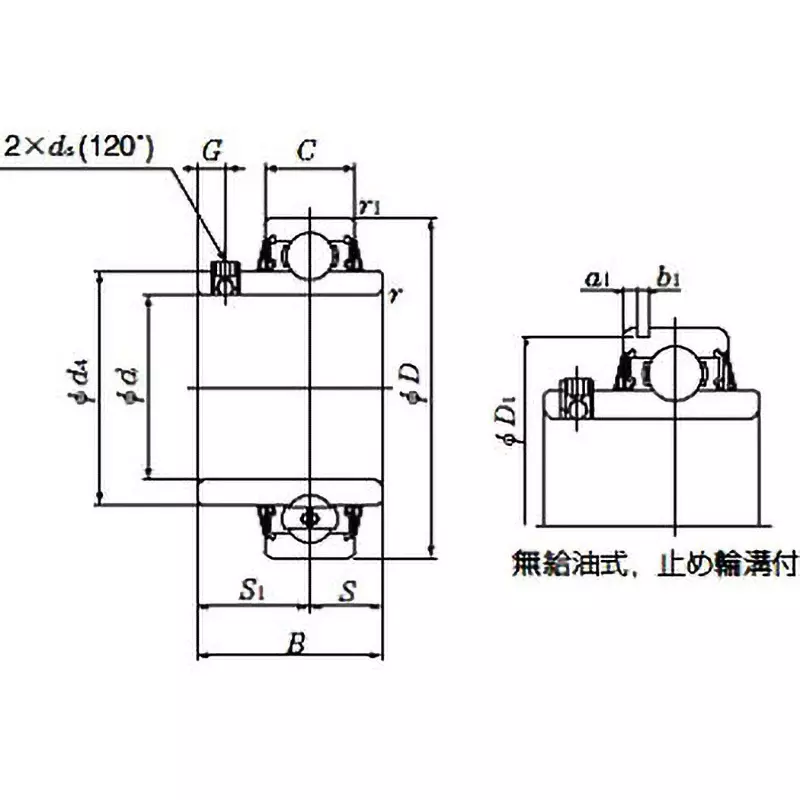

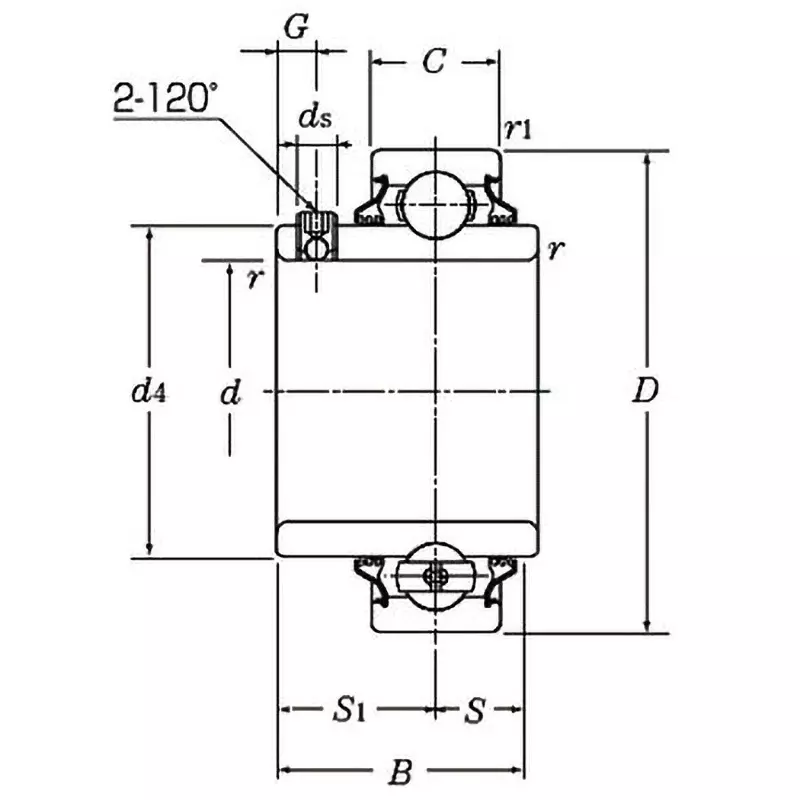

Dimensions C (mm) |
24 |
Dimensions B (mm) |
2.85 |
Dimension D1 (mm) |
86.79 |
Outer Diameter D (Φmm) |
90 |
Dimension d4 (mm) |
62.4 |
Width B (mm) |
51.6 |
Dimension S1 (mm) |
32.6 |
Mass (Kg) |
0.8 (reference) |
Dimensions g (mm) |
9 |
Dimension S |
19 mm |
Dimension ds (mm) |
M8×1 |
Basic Static Load Rating (kN) |
23.2 |
Basic Dynamic Load Rating (kN) |
35 |
Inner Diameter d (Φmm) |
50 |
Dimensions A (mm) |
3.7 |
Chamfer Dimension r1 (mm) |
1.5 (minimum) |
Mass (g) |
800 g (reference) |
