Cylindrical Roller Bearings

Get to Know About Cylindrical Roller Bearings Here

Cylindrical roller bearings are a type of rolling-element bearing designed to provide support for radial loads (perpendicular to the shaft axis). They have cylindrical rollers as rolling elements and are often used in applications where high radial loads and moderate to high speeds are involved. These bearings are common in various industries, including automotive, aerospace, construction, and manufacturing.


How do cylindrical roller bearings work?

1. Basic Structure:

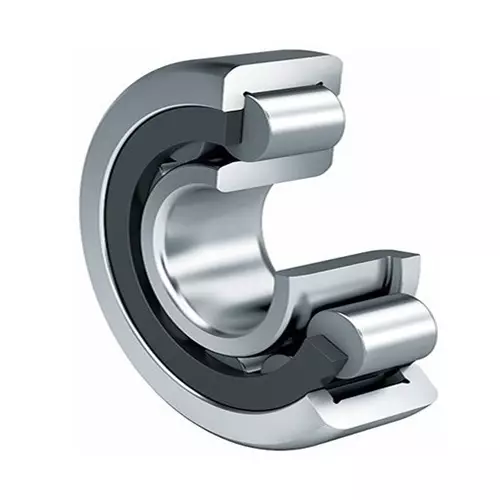

- Cylindrical roller bearings consist of two main components: an inner ring (also called the inner race) and an outer ring (also called the outer race).
- Between the inner and outer rings, cylindrical rollers are placed. These rollers are in contact with both the inner and outer raceways.

2. Rolling Motion:
- As the shaft rotates, the cylindrical rollers facilitate a rolling motion between the inner and outer raceways.
- The cylindrical shape of the rollers allows them to distribute the load evenly over a larger surface area compared to ball bearings, which reduces stress and wear on the bearing.

3. Load Distribution:
- The primary function of cylindrical roller bearings is to support radial loads, which are forces perpendicular to the shaft axis.
- The cylindrical rollers distribute the radial load along their length, providing a higher load-carrying capacity.

4. Axial Load Support (if applicable):
- Some cylindrical roller bearings are designed to support axial loads as well. In such cases, additional features like integral flanges on the outer or inner ring may be incorporated to help withstand axial forces.

5. Separable Design:
- Many cylindrical roller bearings have a separable design, allowing the inner and outer rings, as well as the roller and cage assembly, to be mounted or dismounted separately. There are many bearing accessories that help in installation, maintenance, and replacement.

6. Cage Functionality:
- Cylindrical roller bearings often include a cage to keep the rollers evenly spaced and prevent them from coming into direct contact with each other. This helps maintain proper alignment and reduces friction.

7. Lubrication:
- Proper lubrication is crucial for the efficient operation of cylindrical roller bearings. Lubricants reduce friction and wear, ensuring smooth rotation and extending the bearing's lifespan.

Where is a cylindrical roller bearing commonly used?

a) Industrial Applications: Cylindrical roller bearings are extensively employed in various industrial applications due to their versatility and ability to support radial loads efficiently. One common usage is in the automotive industry, where these bearings find application in wheel hubs, transmissions, and engine components. The automotive sector often relies on cylindrical roller bearings for their durability and capacity to handle diverse load conditions.
b) Machinery and construction equipment: In heavy machinery and construction equipment, particularly in gearboxes and power transmission systems, the use of cylindrical roller thrust bearings is prevalent. These specialized bearings, designed to withstand axial loads, contribute to the reliable performance of such machinery.
c) Manufacturing processes: Within manufacturing processes, machinery such as pumps and compressors benefit from the use of cylindrical roller bearings. The cylindrical shape of the rollers allows for efficient load distribution, ensuring smooth and precise rotational motion in these critical applications.
d) Agricultural machinery: Moreover, in agricultural machinery, the incorporation of insert ball bearings is widespread. These bearings are often used in applications like conveyor systems and agricultural equipment, providing reliable performance in challenging environments.


What are the types of cylindrical roller bearings?

1. Standard Cylindrical Roller Bearings: Standard cylindrical roller bearings are the most common type, featuring cylindrical rollers arranged in parallel. They are suitable for applications with radial loads.

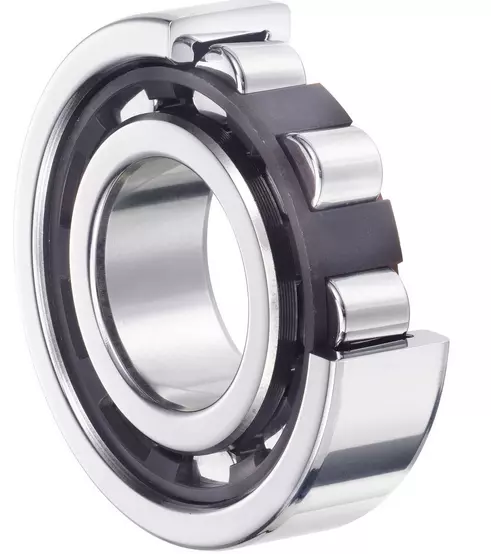

2. Single Row Cylindrical Roller Bearings: Single row cylindrical roller bearings have a single set of cylindrical rollers and are commonly used when radial load support is the primary requirement.
3. Double Row Cylindrical Roller Bearings: Double row cylindrical roller bearings have two sets of cylindrical rollers, arranged in a way that allows them to handle higher radial loads. They provide increased load-carrying capacity compared to single row bearings.
4. Multi-Row Cylindrical Roller Bearings: Multi-row cylindrical roller bearings consist of more than two rows of rollers. These are used in applications where extremely high radial load capacity is necessary.
5. Cylindrical Roller Thrust Bearings: Cylindrical roller thrust bearings are designed to handle axial loads in addition to radial loads. They incorporate cylindrical rollers and are crucial in applications where both types of loads are present.
6. Axial Cylindrical Roller Bearings: Axial cylindrical roller bearings specifically focus on supporting axial loads. They are essential in scenarios where thrust forces are predominant.
7. Separable Cylindrical Roller Bearings: Many cylindrical roller bearings have a separable design, allowing for easy mounting and dismounting. This is particularly beneficial for maintenance and replacement processes.
8. High-Capacity Cylindrical Roller Bearings: High-capacity cylindrical roller bearings are engineered to provide increased radial load capacity. These special bearings often have such designs and materials which enhances performance in demanding applications.
9. Precision Cylindrical Roller Bearings: Precision cylindrical roller bearings are manufactured with tight tolerances to meet the exacting requirements of precision machinery. They find use in applications such as machine tools.
10. Customized and Specialty Bearings: In addition to standard types, cylindrical roller bearings can be customized for specific applications. This includes considerations such as unique dimensions, materials, and special features like integrated cross bearings for particular mechanical systems.
11. Cost Considerations: When selecting a type of cylindrical roller bearing, it's important to consider factors such as cylindrical roller bearing price to ensure cost-effectiveness without compromising performance.


What are the advantages of cylindrical roller bearings?

i) High Radial Load Capacity: Cylindrical roller bearings excel at supporting high radial loads due to their cylindrical roller design. This characteristic allows them to distribute loads evenly over a larger surface area, reducing stress on the bearing.
ii) Versatility in Load Handling: These bearings are versatile and can handle a combination of radial and axial loads, especially in the case of cylindrical roller thrust bearings. This dual-load capability makes them suitable for a wide range of applications.
iii) Efficient in Axial Load Support: For applications with predominant axial loads, such as heavy thrust forces, axial cylindrical roller bearings provide effective axial load support without compromising radial load capacity.
iv) Smooth Operation at High Speeds: Cylindrical roller bearings are capable of operating at high speeds while maintaining stability and minimizing friction. This feature is essential in applications where rotational speed is a critical factor.
v) Separable Design for Easy Maintenance: Many cylindrical roller bearings feature a separable design, allowing the inner and outer rings, along with the roller and cage assembly, to be mounted or dismounted independently. This simplifies maintenance tasks and facilitates replacement.


Why Choose Industrybuying?

Product Variety: Industrybuying offers a wide range of cylindrical roller bearings, including various types, sizes, and configurations to meet different industrial needs.
Quality and Reliability: Industrybuying provides high-quality bearings from reputable manufacturers. Reliability and durability are crucial factors, especially in industrial applications.

Which brands selling cylindrical roller bearings are available on Industrybuying?

a) SKF (Svenska Kullagerfabriken): SKF is a leading global supplier of bearings, seals, lubrication systems, and services. They offer a wide range of cylindrical roller bearings for various industries.
b) FAG (Fischers Aktien-Gesellschaft): FAG, part of the Schaeffler Group, is a renowned German brand known for producing high-quality bearings, including cylindrical roller bearings.
c) NSK (Nippon Seiko K.K.): NSK is a Japanese multinational corporation that manufactures bearings, among other products. They produce a variety of cylindrical roller bearings for different applications.
d) NTN Corporation: NTN is a Japanese manufacturer of bearings and precision machinery. They offer a diverse range of cylindrical roller bearings for industrial applications.
