Ships within 30 days
Clamping Force
Screw Torque
View
View
View
View

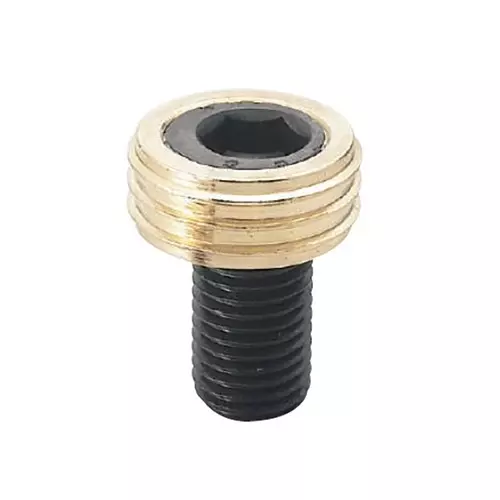

| Type of Product | Groove Type Nut with Bolt |
| Material | Steel SCM440 |
| Model No | 3102-02 |
| Finish Type | Black Oxide Finish |
Type of Product |
Groove Type Nut with Bolt |
Material |
Steel SCM440 |
Model No |
3102-02 |
Finish Type |
Black Oxide Finish |
Country of Origin |
India |
Weight |
40 g |
Hardness |
HRC 38~45 |
Name of Manufacturer/Packer/Importer |
Steel-Smith |

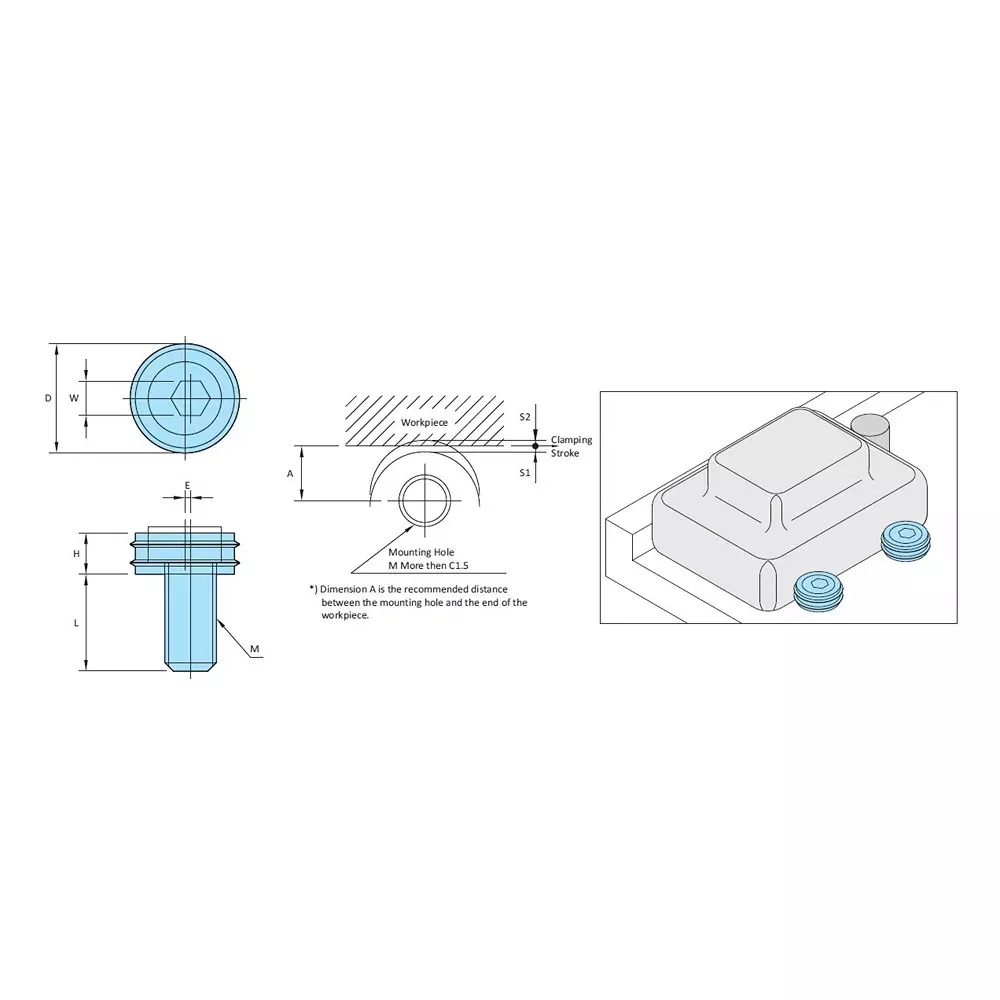

Dimension S1 (mm) |
1 mm |
Washer Material |
Brass |
Dimension M |
M12x1.75 |
Dimension W |
8 mm |
Clamping Force |
17000 N |
Dimension L (mm) |
23 mm |
Dimension A |
12.7 mm |
Dimension S2 (mm) |
1 mm |
Dimension H |
9.5 mm |
Dimension E |
1 mm |
Screw Torque |
88 N.m |
