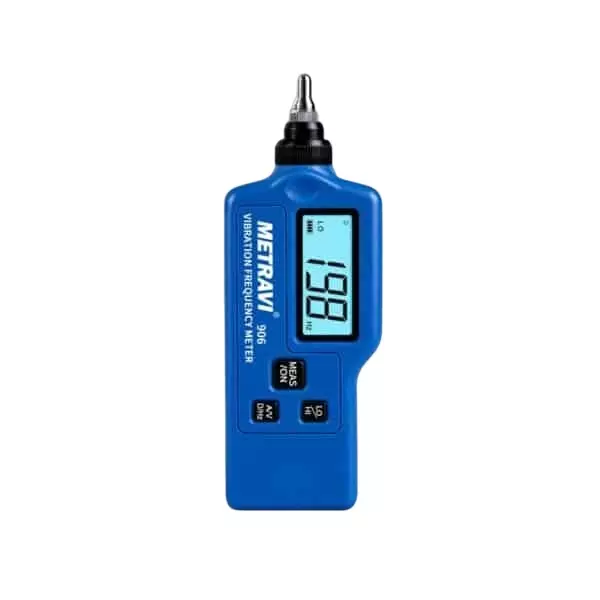

Metravi Vibration Meter

Introduction This product adopts piezoelectric effect of artificial polarized ceramic for design, it is suitable for monitoring of all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement. It also measures temperature of the object under test. Application It is widely used in mechanical equipment manufacturing, motor installation and testing, electric power, metallurgy and general aviation field. Since this instrument can measure temperature up to 80° C, it becomes an ideal tool for mechanical engineers working on motor, generator or any fixed mounted rotating devise. Features LCD displays measurement result and conditions directly. Measures acceleration (mis2 peak), velocity (mm/s RMS) and displacement (mm p-p) Selective vibration characteristic. Uses hi- sensitive vibration sensor for accurate measurements. Magnetic probe is provided, to be used for holding the sensor in un-easy conditions. Equipped with two probes (SHORT and LONG) to adapt to the different measurement requirements. Low battery Indication. Auto Power Off. Backlit LCD Display. Maximum Value Hold function. Measures Temperature in °C 1°F

Its function is comprehensive. It can measure three parameters as acceleration, speed and displacement. Its size is not large. It is light and easy to carry. You can control the meter with two keys. The operation is simple. Auto Power Off facility

Accordance with ISO recommendation 2372 Vibration Tester AVD-80 Micro Controller based has been designed as a simple diagnostic tool for preventive maintenance. The instrument and the monitoring technique are based on the recommendabons of ISO. Need based maintenance is the latest trend of industry with which maintenance costs are low and life of machinery is most optimum. Condition monitoring is basic need for need maintenance. All three useful measurements are possible. Displacement Velocity and acceleration modes allow a user to perform basic vibration analysis. Vibration measurement in terms of RMS velocity in mm/s. Pk-Pk and Acceleration in m/s* RMS. Pk-Pk and Displacement in pm RMS. Pk-Pk). Machine Classes The vibration class of a machine depends on its size, function, and the stiffness of its foundation. The standards define six classes, ranging from small electric motors to vibrating screens. For each class, vibration severity levels are given in four bands, ranging from very good condition through average and poor to bad. Measure and Record Vibration severity is normally measured on the bearing housings. The measuring direction, horizontal, vertical or axial, and the numbers of readings taken on each machine depend on the mechanical problem one can expect. Out of balance in a fan. for example, will mostly affect the readings taken horizontally on the fan-end bearing.

Micro Controller based. Measuring Vibration Velocity True RMS. Wide range frequency. True RMS & PEAK measurement. Suitable for monitoring machinery vibration. Caused by Imbalance, Misalignment and Gear faults. Back Light Display. Auto Off. Low Battery Indication. Pocket size & Light weight. Sealed Membrane Keypad. Casing: ABS.

The Metravi Vibration Meter Dot-matrix LCD Display ±2% Grey & Pink, BCA-111 is a precision instrument designed to measure and analyze vibrations in various mechanical and structural systems. It plays a crucial role in assessing the health and performance of machinery, ensuring safety in construction, monitoring industrial equipment, and conducting research and diagnostics. This highly specialized device is an essential tool for engineers, maintenance personnel, and professionals across multiple industries. Key features of the Metravi Vibration Meter Dot-matrix LCD Display ±2% Grey & Pink, BCA-111 include its ability to accurately measure vibration levels, frequency, and acceleration. It typically employs sensitive accelerometers to detect and convert mechanical vibrations into electrical signals, providing valuable data for analyzing machine condition and structural integrity. The meter's user-friendly interface usually includes a digital display that presents real-time vibration measurements in units such as velocity (mm/s), acceleration (m/s²), or displacement (mm). This information helps users assess whether vibration levels fall within acceptable limits or if corrective actions are needed to prevent equipment failure or structural damage. One of the standout features of this meter is its versatility in analyzing vibrations in a variety of systems, including rotating machinery, vehicles, bridges, buildings, and more. By monitoring vibrations, users can identify irregularities, misalignments, imbalances, and wear in machinery, helping to prevent breakdowns and costly repairs. The Metravi Vibration Meter Dot-matrix LCD Display ±2% Grey & Pink, BCA-111 often includes additional functionalities such as data logging, allowing users to record vibration data over time for trend analysis and maintenance planning. Some models may also offer spectral analysis capabilities to pinpoint the frequency components of vibrations, aiding in the identification of specific issues. Furthermore, this instrument is typically designed to be rugged and portable, making it suitable for on-site measurements and inspections. Its durability ensures it can withstand harsh industrial environments. In summary, the Metravi Vibration Meter Dot-matrix LCD Display ±2% Grey & Pink, BCA-111 is a high-precision and adaptable instrument that provides precise vibration measurement and analysis capabilities across various industries and applications. Its accuracy, versatility, and user-friendly design make it an indispensable tool for professionals who require reliable data to assess and maintain the health and safety of mechanical and structural systems. Trust Metravi's dedication to quality and innovation with the Vibration Meter for all your vibration analysis needs.
