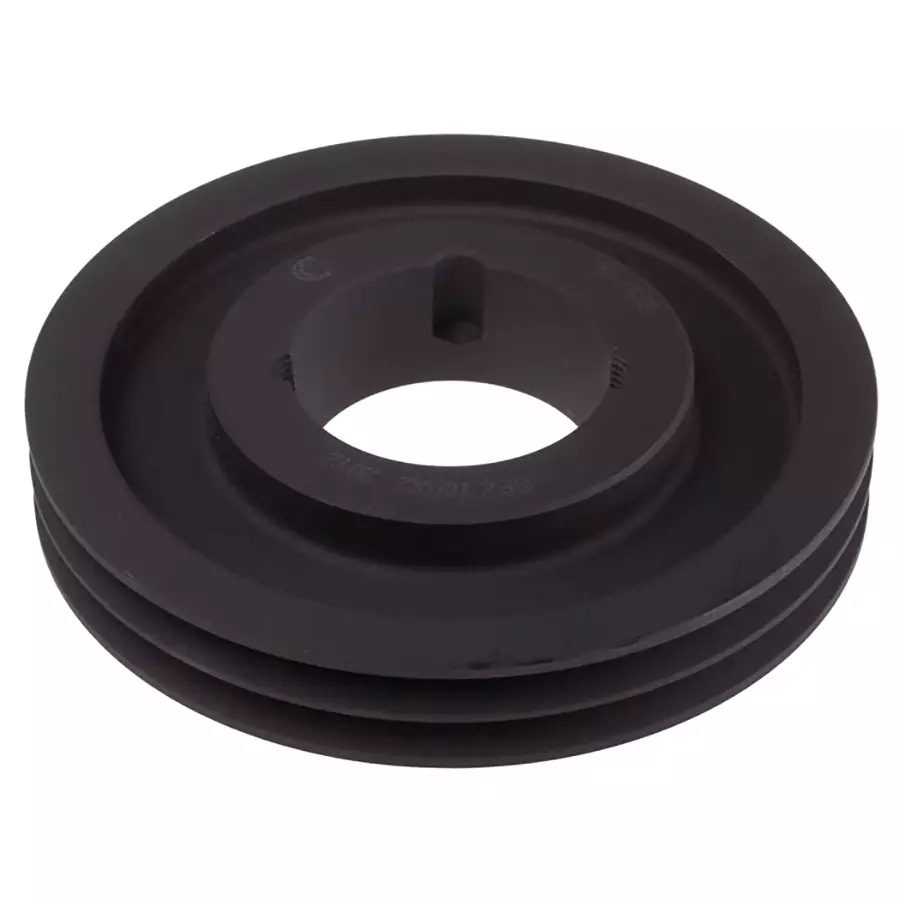

RS PRO Pulley, Cast Iron, Steel Model No 183912 is a simple machine used to change the direction or transmit force in a mechanical system. It consists of a grooved wheel mounted on an axle or shaft, and a rope, belt, or chain passes through the groove. Pulleys are widely used in various applications to lift heavy objects, transfer power, and provide mechanical advantage.
There are two main types of pulleys: fixed pulleys and movable (or "block and tackle") pulleys.
Fixed Pulleys: In a fixed pulley, the wheel is attached to a fixed point, such as a beam or a ceiling, and does not move. When force is applied to one end of the rope or belt, the object attached to the other end moves in the opposite direction. While a fixed pulley does not provide any mechanical advantage in terms of reducing the force required, it changes the direction of the force, which can be beneficial in various lifting and pulling tasks.
Movable Pulleys (Block and Tackle): A movable pulley is suspended from a fixed point, and both the pulley and the load are free to move. When force is applied to one end of the rope or chain, the pulley moves with the load, lifting it. Movable pulleys provide a mechanical advantage, reducing the amount of force needed to lift a heavy load. In a block and tackle system, multiple movable pulleys can be combined to increase the mechanical advantage further.
Pulleys are used in a wide range of applications, including:
Elevators and cranes: Pulleys are an integral part of elevator systems, cranes, and other lifting machinery, allowing heavy loads to be raised or lowered with relative ease.
Automotive engines: Pulleys are used in engines to transfer power from the engine to various components, such as the alternator, water pump, and air conditioning compressor, through a serpentine belt.
Exercise equipment: Pulleys are incorporated into exercise machines, such as cable machines and weightlifting systems, to provide resistance and adjustability.
Flagpoles and sails: Pulleys are used in sailboats and flagpoles to adjust the height and angle of sails and flags.
Overall, pulleys are essential mechanical devices that play a crucial role in making work more manageable, efficient, and convenient in various industries and everyday applications.
