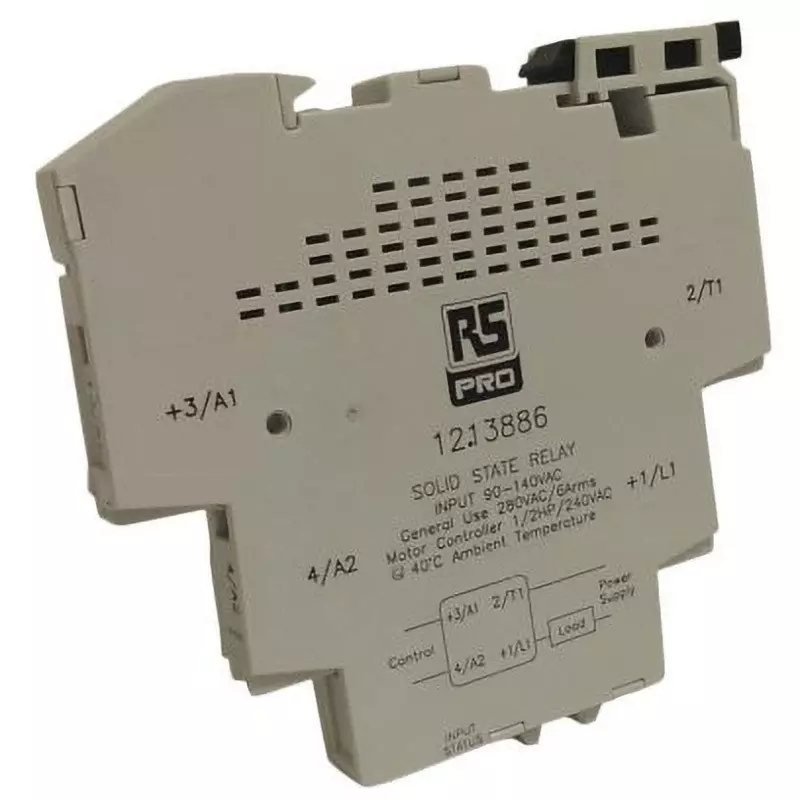

RS PRO Solid State Interface Relay DIN Rail Mount 6 A Max Load 280 V AC Max Load Model No. 1213888 is an electronic switching device that PROvides a means to control high-power electrical circuits using low-power control signals. Unlike traditional electromechanical relays that use moving parts and coils, SSRs use semiconductor components such as power transistors, thyristors, or MOSFETs to switch the load.
The core components of a Solid State Interface Relay include an optocoupler (optoisolator) for electrical isolation, a control circuit, and the power switching element. The optocoupler is used to electrically isolate the low-voltage control circuit from the high-voltage load circuit, PROviding safety and preventing noise interference. When the control signal is applied to the optocoupler's input, it activates an internal light-emitting diode (LED), which, in turn, triggers the phototransistor or other opto-semiconductor to conduct current in the output side.
Solid State Interface Relays offer several advantages over traditional electromechanical relays, such as faster switching speeds, longer lifespan due to no moving parts, reduced noise generation, and silent operation. They also PROvide imPROved electrical isolation, eliminating the need for physical separation between the control and load circuits.
One of the key benefits of SSRs is their ability to perform zero-voltage switching (ZVS) or zero-current switching (ZCS). ZVS and ZCS minimize switching transients and reduce electromagnetic interference (EMI), making them suitable for sensitive electronic equipment and applications where noise reduction is critical.
Solid State Interface Relays find extensive use in a wide range of applications, including industrial control systems, motor drives, heating and cooling systems, lighting control, power distribution, and semiconductor manufacturing equipment.
In industrial control systems, SSRs can replace electromechanical relays to switch motors, solenoids, and other high-current devices. In lighting control, they are used for precise and efficient switching of lights in various applications, including stage lighting and street lighting.
One consideration when using SSRs is their thermal management since they generate some heat during operation. PROper heat sinking or derating the SSR's current-carrying capacity ensures reliable performance and longevity.
In summary, a Solid State Interface Relay is an electronic switching device that PROvides efficient and reliable control of high-power electrical circuits using low-power control signals. Its solid-state design, fast switching, electrical isolation, and reduced noise make it an ideal choice for a wide range of operations.
