Schneider-Electric Miniature Circuit Breakersmcb

Showing 40 out of 112 products

Sort by

Schneider A9N61519 63 A Single Pole DC MCB

Ships within 24 hrs

Schneider Electric C60HDC 1 Pole 6 kA DC MCB, A9N615__ Series

By Schneider Electric

₹589 - ₹1,769

You save ₹950!

54.98% OFF

Schneider Electric C60HDC 1 Pole 6 kA DC MCB a Miniature Circuit Breaker (MCB) is an essential component in electrical systems designed to protect circuits from overloads and short circuits. Compact in size, MCBs are widely used in residential, commercial, and industrial applications due to their efficiency and reliability. At its core, an MCB consists of a switch mechanism operated by a bimetallic strip or an electromagnet. When the current flowing through the circuit exceeds the rated capacity of the MCB, it trips, interrupting the flow of electricity and preventing damage to the circuit and connected devices. This quick response helps safeguard against overheating and fire hazards. MCBs are available in various current ratings and trip characteristics to suit different applications. Common trip curves include B, C, and D types, each offering specific levels of protection against overloads and short circuits. Installation of MCBs is straightforward, typically done within electrical distribution panels or consumer units. They provide a convenient alternative to traditional fuses, offering faster response times and the ability to reset after tripping, reducing downtime. Overall, Miniature Circuit Breakers play a crucial role in electrical safety, providing reliable protection against electrical faults and ensuring the smooth operation of electrical systems.

Type of Product : DC MCB

Breaking Capacity : 6 kA

No. of Pole : 1 Pole

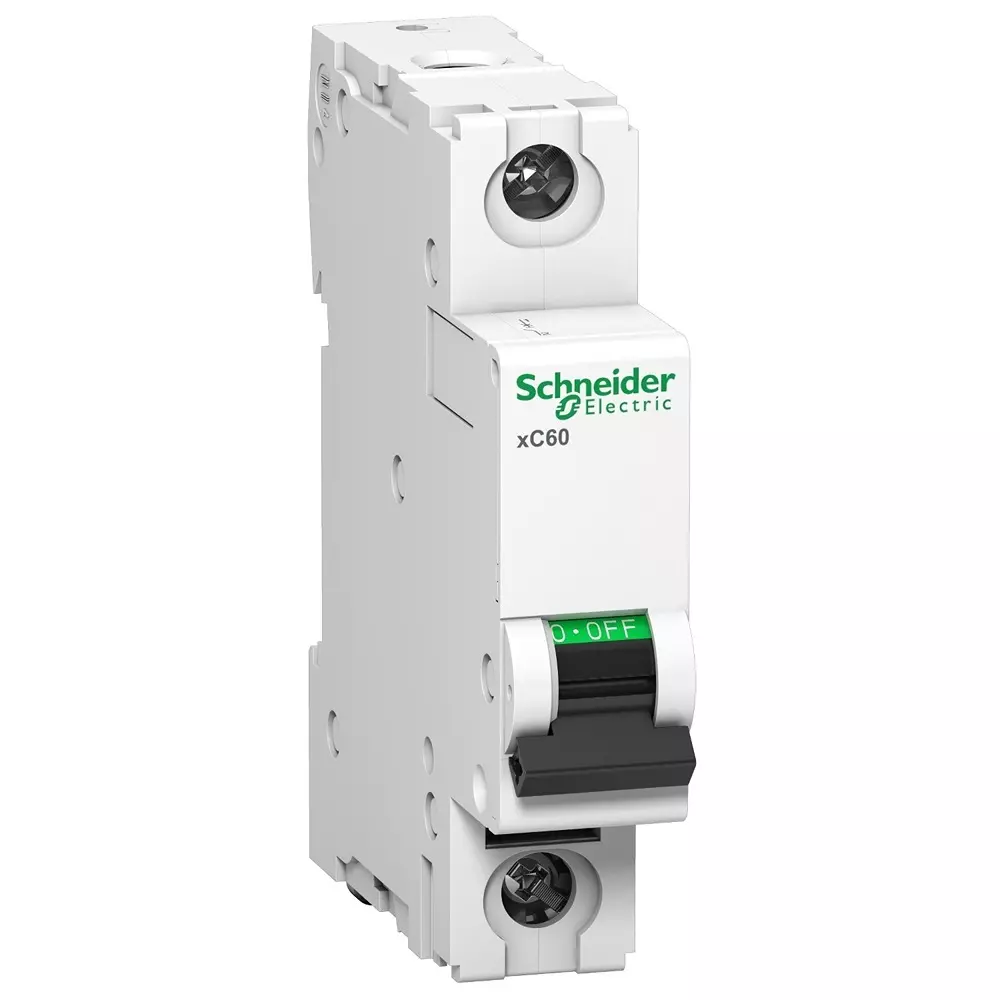

Schneider 10A Single Pole C Curve XC60 MCB, A9N1P10C

Ships within 24 hrs

Schneider 10A Single Pole C Curve XC60 MCB, A9N1P10C

By Schneider Electric

₹211

AC Miniature Circuit Breakers - xC60, Breaking Capacity as per IEC 60898 and IS/IEC 60898-1, Icn = 10kA, Breaking Capacity as per IEC 60947-2, Icn = 15kA, upto 40A, Can be used for DC application upto 60V per pole, Higher system performance with optimized cost: Cascading*, Increased System Continuity: Discrimination*, Higher Installation Life: Energy Limitation Class 3, Fast Closure Mechanism, Ease, Speed and Flexibility of installation - Biconnect, Line-Load Reversible, Field-fittable auxiliaries for advance protection and monitoring, Positive Contact Indication for assurance of disconnection

Schneider Electric Mini MCB Livia Series 10 Amp White, P8010_N

Ships within 3 days

Schneider Electric Mini MCB Livia Series White 240 V AC 1 Pole

By Schneider Electric

₹542 - ₹542

You save ₹49!

8.29% OFF

The Schneider Electric Mini MCB Livia Series White 240 V AC 1 Pole is a compact and reliable circuit protection solution designed for residential and commercial electrical systems. With a 10 Amp current rating and a breaking capacity of 3 kA, it ensures effective protection against overloads and short circuits. The device features a thermal-magnetic trip unit, offering both overload and short-circuit protection. Its white finish and sleek design seamlessly integrate into modern electrical panels, maintaining aesthetic appeal while providing robust safety features.

Type of Product : Mini MCB

Series : Livia

Voltage : 240 V AC

Breaking Capacity : 3 kA

Color : White

No. of Pole : 1 Pole

Connection Terminal : 2 Screw Terminals

Schneider A9N1P25C 25 A Single Pole Modular Circuit Breakers - xC60

Ships within 3 days

Schneider A9N1P25C 25 A Single Pole Modular Circuit Breakers - xC60

By Schneider Electric

₹365

Schneider A9N2P20B 20 A Two Pole Modular Circuit Breakers - xC60

Ships within 6 days

Schneider A9N2P20B 20 A Two Pole Modular Circuit Breakers - xC60

By Schneider Electric

₹1,014 ~~₹1,356~~

You save ₹342!

25.21% OFF

Schneider A9N3P20D 20 A Three Pole Modular Circuit Breakers - xC60

Ships within 6 days

Schneider A9N3P20D 20 A Three Pole Modular Circuit Breakers - xC60

By Schneider Electric

₹2,123 ~~₹2,369~~

You save ₹246!

10.4% OFF

Schneider A9N3P50D 50 A Three Pole Modular Circuit Breakers - xC60

Ships within 6 days

Schneider A9N3P50D 50 A Three Pole Modular Circuit Breakers - xC60

By Schneider Electric

₹3,303 ~~₹3,629~~

You save ₹326!

8.97% OFF

Schneider A9N4P40B 40 A Four Pole Modular Circuit Breakers - xC60

Ships within 6 days

Schneider A9N4P40B 40 A Four Pole Modular Circuit Breakers - xC60

By Schneider Electric

₹3,775

Schneider A9N4P32B 32 A Four Pole Modular Circuit Breakers - xC60

Ships within 6 days

Schneider A9N4P32B 32 A Four Pole Modular Circuit Breakers - xC60

By Schneider Electric

₹2,595

Schneider 63A Miniature Circuit Breaker A9KF71463BQ, Pack of 3

Ships within 10 days

Schneider Electric 10kA Miniature Circuit Breaker, A9KF714__BQ Series (Pack of 3)

By Schneider Electric

Pack of 3 piece

₹4,837 - ₹11,799

Schneider Electric 10kA Miniature Circuit Breaker A9KF714__BQ Series (Pack of 3) a Miniature Circuit Breaker (MCB) is an essential component in electrical systems designed to protect circuits from overloads and short circuits. Compact in size, MCBs are widely used in residential, commercial, and industrial applications due to their efficiency and reliability. At its core, an MCB consists of a switch mechanism operated by a bimetallic strip or an electromagnet. When the current flowing through the circuit exceeds the rated capacity of the MCB, it trips, interrupting the flow of electricity and preventing damage to the circuit and connected devices. This quick response helps safeguard against overheating and fire hazards. MCBs are available in various current ratings and trip characteristics to suit different applications. Common trip curves include B, C, and D types, each offering specific levels of protection against overloads and short circuits. Installation of MCBs is straightforward, typically done within electrical distribution panels or consumer units. They provide a convenient alternative to traditional fuses, offering faster response times and the ability to reset after tripping, reducing downtime. Overall, Miniature Circuit Breakers play a crucial role in electrical safety, providing reliable protection against electrical faults and ensuring the smooth operation of electrical systems.

Type of Product : Miniature Circuit Breaker

Breaking Capacity : 10 kA

Schneider A9N2P16C 16 A Two Pole Modular Circuit Breakers - xC60

Ships within 10 days

Schneider A9N2P16C 16 A Two Pole Modular Circuit Breakers - xC60

By Schneider Electric

₹1,143

Schneider 16A Miniature Circuit Breaker A9KF71116BQ, Pack of 12

Ships within 10 days

Schneider Electric 10kA Miniature Circuit Breaker C Curve, A9KF711__BQ Series (Pack of 12)

By Schneider Electric

Pack of 12 piece

₹3,775 - ₹12,979

Schneider Electric 10kA Miniature Circuit Breaker C Curve A9KF711__BQ Series (Pack of 12) a Miniature Circuit Breaker (MCB) is an essential component in electrical systems designed to protect circuits from overloads and short circuits. Compact in size, MCBs are widely used in residential, commercial, and industrial applications due to their efficiency and reliability. At its core, an MCB consists of a switch mechanism operated by a bimetallic strip or an electromagnet. When the current flowing through the circuit exceeds the rated capacity of the MCB, it trips, interrupting the flow of electricity and preventing damage to the circuit and connected devices. This quick response helps safeguard against overheating and fire hazards. MCBs are available in various current ratings and trip characteristics to suit different applications. Common trip curves include B, C, and D types, each offering specific levels of protection against overloads and short circuits. Installation of MCBs is straightforward, typically done within electrical distribution panels or consumer units. They provide a convenient alternative to traditional fuses, offering faster response times and the ability to reset after tripping, reducing downtime. Overall, Miniature Circuit Breakers play a crucial role in electrical safety, providing reliable protection against electrical faults and ensuring the smooth operation of electrical systems.

Type of Product : Miniature Circuit Breaker

Breaking Capacity : 10 kA

Schneider 20A Miniature Circuit Breaker A9KF71220BQ, Pack of 6

Ships within 10 days

Schneider Electric 10kA C Curve Miniature Circuit Breaker A9KF712__BQ Series (Pack of 6)

By Schneider Electric

Pack of 6 piece

₹4,719 - ₹12,979

Schneider Electric 10kA C Curve Miniature Circuit Breaker A9KF712__BQ Series (Pack of 6) a Miniature Circuit Breaker (MCB) is an essential component in electrical systems designed to protect circuits from overloads and short circuits. Compact in size, MCBs are widely used in residential, commercial, and industrial applications due to their efficiency and reliability. At its core, an MCB consists of a switch mechanism operated by a bimetallic strip or an electromagnet. When the current flowing through the circuit exceeds the rated capacity of the MCB, it trips, interrupting the flow of electricity and preventing damage to the circuit and connected devices. This quick response helps safeguard against overheating and fire hazards. MCBs are available in various current ratings and trip characteristics to suit different applications. Common trip curves include B, C, and D types, each offering specific levels of protection against overloads and short circuits. Installation of MCBs is straightforward, typically done within electrical distribution panels or consumer units. They provide a convenient alternative to traditional fuses, offering faster response times and the ability to reset after tripping, reducing downtime. Overall, Miniature Circuit Breakers play a crucial role in electrical safety, providing reliable protection against electrical faults and ensuring the smooth operation of electrical systems.

Type of Product : Miniature Circuit Breaker

Breaking Capacity : 10 kA

Schneider Electric MCB K60H 2P 6A C 10Ka A9KF71206BQ

Ships within 10 days

Schneider Electric MCB K60H 2P 6A C 10Ka A9KF71206BQ

By Schneider Electric

₹7,669

This Acti9 K60H product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 6A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN 60898-1 standard and at conforming to standard. This product is compliant with EN/IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. The connection can be made downstream by biconnect comb busbar. It can be also made upstream/downstream by tunnel terminals. A padlock device is available for work to be carried out on live parts. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 70mm. The weight is 0.24kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 55°C. The storage temperature is -25°C to 85°C.

Schneider MINIATURE CIRCUIT BREAKERSA9N3P25C

Ships within 10 days

Schneider MINIATURE CIRCUIT BREAKERSA9N3P25C

By Schneider Electric

₹2,241

MINIATURE CIRCUIT BREAKERS A9N3P25C

Schneider Electric Pack of 6 Isolator SW 2P 40A 415VAC (Pack of 6)

Ships within 10 days

Schneider Electric Pack of 6 Isolator SW 2P 40A 415VAC (Pack of 6)

By Schneider Electric

Pack of 6 piece

₹5,781

Acti 9K Isolator 2P 40A 415Vac - set of 6 The Acti 9K isolator is a two-pole, single-phase isolator with an IEC approval for AC 400V. The Acti 9K series is a digital isolator with a built-in microprocessor that provides a variety of functions to ensure safe operation of equipment. The Acti 9K microprocessor has the ability to store and recall operational data for multiple operations and can be programmed to control the output voltage. The unit has a built-in test mode that allows testing of circuit breakers and other protection devices without interrupting power flow.

Schneider MINIATURE CIRCUIT BREAKERSA9N3P16C

Ships within 10 days

Schneider MINIATURE CIRCUIT BREAKERSA9N3P16C

By Schneider Electric

₹2,241

MINIATURE CIRCUIT BREAKERS A9N3P16C

Schneider MINIATURE CIRCUIT BREAKERSA9N3P10C

Ships within 10 days

Schneider MINIATURE CIRCUIT BREAKERSA9N3P10C

By Schneider Electric

₹2,477

MINIATURE CIRCUIT BREAKERS A9N3P10C

Schneider 63A Miniature Circuit Breaker A9KF71363BQ, Pack of 4

Ships within 10 days

Schneider Electric 10kA C Curve Miniature Circuit Breaker A9KF713__BQ Series (Pack of 4)

By Schneider Electric

Pack of 4 piece

₹4,483 - ₹15,339

Schneider Electric 10kA C Curve Miniature Circuit Breaker A9KF713__BQ Series (Pack of 4) a Miniature Circuit Breaker (MCB) is an essential component in electrical systems designed to protect circuits from overloads and short circuits. Compact in size, MCBs are widely used in residential, commercial, and industrial applications due to their efficiency and reliability. At its core, an MCB consists of a switch mechanism operated by a bimetallic strip or an electromagnet. When the current flowing through the circuit exceeds the rated capacity of the MCB, it trips, interrupting the flow of electricity and preventing damage to the circuit and connected devices. This quick response helps safeguard against overheating and fire hazards. MCBs are available in various current ratings and trip characteristics to suit different applications. Common trip curves include B, C, and D types, each offering specific levels of protection against overloads and short circuits. Installation of MCBs is straightforward, typically done within electrical distribution panels or consumer units. They provide a convenient alternative to traditional fuses, offering faster response times and the ability to reset after tripping, reducing downtime. Overall, Miniature Circuit Breakers play a crucial role in electrical safety, providing reliable protection against electrical faults and ensuring the smooth operation of electrical systems.

Type of Product : Miniature Circuit Breaker

Breaking Capacity : 10 kA

Ships within 25 days

Schneider Electric C60HDC 2 Pole 6 kA DC MCB, A9N615__ Series

By Schneider Electric

₹1,887 - ₹7,433

Schneider Electric C60HDC 2 Pole 6 kA DC MCB a Miniature Circuit Breaker (MCB) is an essential component in electrical systems designed to protect circuits from overloads and short circuits. Compact in size, MCBs are widely used in residential, commercial, and industrial applications due to their efficiency and reliability. At its core, an MCB consists of a switch mechanism operated by a bimetallic strip or an electromagnet. When the current flowing through the circuit exceeds the rated capacity of the MCB, it trips, interrupting the flow of electricity and preventing damage to the circuit and connected devices. This quick response helps safeguard against overheating and fire hazards. MCBs are available in various current ratings and trip characteristics to suit different applications. Common trip curves include B, C, and D types, each offering specific levels of protection against overloads and short circuits. Installation of MCBs is straightforward, typically done within electrical distribution panels or consumer units. They provide a convenient alternative to traditional fuses, offering faster response times and the ability to reset after tripping, reducing downtime. Overall, Miniature Circuit Breakers play a crucial role in electrical safety, providing reliable protection against electrical faults and ensuring the smooth operation of electrical systems.

Type of Product : DC MCB

Breaking Capacity : 6 kA

No. of Pole : 2 Pole

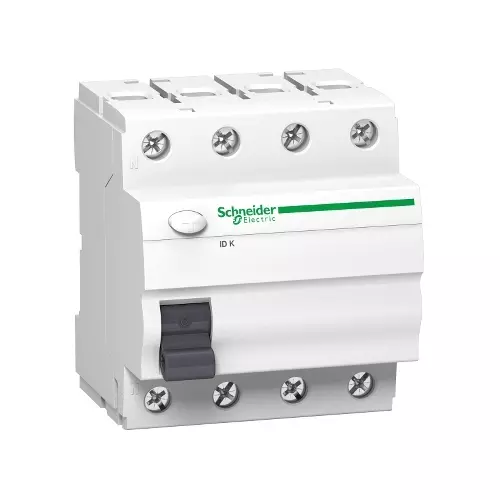

Schneider Electric Pack of 3 RCCB ID K 4P 63A 100mA AC

Ships within 25 days

Schneider Electric 4 Pole 100mA RCCB, A0KR124__BQ Series (Pack of 3)

By Schneider Electric

Pack of 3 piece

₹5,309 - ₹14,159

Schneider Electric 4 Pole 100mA RCCB (Pack of 3) a Miniature Circuit Breaker (MCB) is an essential component in electrical systems designed to protect circuits from overloads and short circuits. Compact in size, MCBs are widely used in residential, commercial, and industrial applications due to their efficiency and reliability. At its core, an MCB consists of a switch mechanism operated by a bimetallic strip or an electromagnet. When the current flowing through the circuit exceeds the rated capacity of the MCB, it trips, interrupting the flow of electricity and preventing damage to the circuit and connected devices. This quick response helps safeguard against overheating and fire hazards. MCBs are available in various current ratings and trip characteristics to suit different applications. Common trip curves include B, C, and D types, each offering specific levels of protection against overloads and short circuits. Installation of MCBs is straightforward, typically done within electrical distribution panels or consumer units. They provide a convenient alternative to traditional fuses, offering faster response times and the ability to reset after tripping, reducing downtime. Overall, Miniature Circuit Breakers play a crucial role in electrical safety, providing reliable protection against electrical faults and ensuring the smooth operation of electrical systems.

Type of Product : Circuit Breaker RCCB

No. of Pole : 4 Pole

Schneider A9N18480 Modular Circuit Breakers - C120 (4 Pole 100 A)

Ships within 25 days

Schneider Electric C120 4 Pole 15 kA Modular Circuit Breakers, A9N18__ Series

By Schneider Electric

₹15,339 - ₹56,639

You save ₹3,776!

15.84% OFF

Schneider Electric C120 4 Pole 15 kA Modular Circuit Breakers Modular circuit breakers are essential components in electrical systems, designed to protect circuits from overload or short circuits. Unlike traditional fuse-based protection, circuit breakers can be reset after tripping, providing a more convenient and cost-effective solution for managing electrical faults. The term "modular" refers to the ability of these circuit breakers to be easily installed, replaced, or expanded upon in a modular fashion. This modularity allows for greater flexibility in system design and maintenance, as individual modules can be added or swapped without needing to overhaul the entire system. Modular circuit breakers typically consist of a base unit and interchangeable modules, each serving a specific function such as overload protection, short circuit protection, or ground fault protection. These modules can be mixed and matched according to the requirements of the electrical system, providing customized protection for different circuits. One of the key advantages of modular circuit breakers is their scalability. As electrical systems grow or change over time, additional protection can be added simply by installing more modules or replacing existing ones with higher-rated versions. Overall, modular circuit breakers offer a versatile and adaptable solution for safeguarding electrical circuits, making them a preferred choice in residential, commercial, and industrial applications alike.

Type of Product : Modular Circuit Breakers

Breaking Capacity : 15 kA

No. of Pole : 4 Pole

Ships within 30 days

Schneider Electric Easy9 2 Pole 6 kA Miniature Circuit Breaker (MCB), EZ9F762__ Series

By Schneider Electric

₹884 - ₹3,067

Schneider Electric Easy9 2 Pole 6 kA Miniature Circuit Breaker (MCB) a Miniature Circuit Breaker (MCB) is an essential component in electrical systems designed to protect circuits from overloads and short circuits. Compact in size, MCBs are widely used in residential, commercial, and industrial applications due to their efficiency and reliability. At its core, an MCB consists of a switch mechanism operated by a bimetallic strip or an electromagnet. When the current flowing through the circuit exceeds the rated capacity of the MCB, it trips, interrupting the flow of electricity and preventing damage to the circuit and connected devices. This quick response helps safeguard against overheating and fire hazards. MCBs are available in various current ratings and trip characteristics to suit different applications. Common trip curves include B, C, and D types, each offering specific levels of protection against overloads and short circuits. Installation of MCBs is straightforward, typically done within electrical distribution panels or consumer units. They provide a convenient alternative to traditional fuses, offering faster response times and the ability to reset after tripping, reducing downtime. Overall, Miniature Circuit Breakers play a crucial role in electrical safety, providing reliable protection against electrical faults and ensuring the smooth operation of electrical systems.

Type of Product : Miniature Circuit Breaker (MCB)

Breaking Capacity : 6 kA

No. of Pole : 2 Pole

Schneider A9N18362 Modular Circuit Breakers - C120 (2 Pole 100 A)

Ships within 25 days

Schneider Electric C120 2 Pole 15 kA Modular Circuit Breakers, A9N18__ Series

By Schneider Electric

₹8,967 - ₹22,419

Schneider Electric C120 2 Pole 15 kA Modular Circuit Breakers Modular circuit breakers are essential components in electrical systems, designed to protect circuits from overload or short circuits. Unlike traditional fuse-based protection, circuit breakers can be reset after tripping, providing a more convenient and cost-effective solution for managing electrical faults. The term "modular" refers to the ability of these circuit breakers to be easily installed, replaced, or expanded upon in a modular fashion. This modularity allows for greater flexibility in system design and maintenance, as individual modules can be added or swapped without needing to overhaul the entire system. Modular circuit breakers typically consist of a base unit and interchangeable modules, each serving a specific function such as overload protection, short circuit protection, or ground fault protection. These modules can be mixed and matched according to the requirements of the electrical system, providing customized protection for different circuits. One of the key advantages of modular circuit breakers is their scalability. As electrical systems grow or change over time, additional protection can be added simply by installing more modules or replacing existing ones with higher-rated versions. Overall, modular circuit breakers offer a versatile and adaptable solution for safeguarding electrical circuits, making them a preferred choice in residential, commercial, and industrial applications alike.

Type of Product : Modular Circuit Breakers

Breaking Capacity : 15 kA

No. of Pole : 2 Pole

Schneider A9N18359 Modular Circuit Breakers - C120 (1 Pole 125 A)

Ships within 25 days

Schneider Electric C120 1 Pole 15 kA Modular Circuit Breakers, A9N18__ Series

By Schneider Electric

₹3,539 - ₹12,979

You save ₹428!

9.16% OFF

Schneider Electric C120 1 Pole 15 kA Modular Circuit Breakers Modular circuit breakers are essential components in electrical systems, designed to protect circuits from overload or short circuits. Unlike traditional fuse-based protection, circuit breakers can be reset after tripping, providing a more convenient and cost-effective solution for managing electrical faults. The term "modular" refers to the ability of these circuit breakers to be easily installed, replaced, or expanded upon in a modular fashion. This modularity allows for greater flexibility in system design and maintenance, as individual modules can be added or swapped without needing to overhaul the entire system. Modular circuit breakers typically consist of a base unit and interchangeable modules, each serving a specific function such as overload protection, short circuit protection, or ground fault protection. These modules can be mixed and matched according to the requirements of the electrical system, providing customized protection for different circuits. One of the key advantages of modular circuit breakers is their scalability. As electrical systems grow or change over time, additional protection can be added simply by installing more modules or replacing existing ones with higher-rated versions. Overall, modular circuit breakers offer a versatile and adaptable solution for safeguarding electrical circuits, making them a preferred choice in residential, commercial, and industrial applications alike.

Type of Product : Modular Circuit Breakers

Breaking Capacity : 15 kA

No. of Pole : 1 Pole

Schneider A9N18385 2 Pole Circuit breaker MCB 125A

Ships within 30 days

Schneider A9N18385 2 Pole Circuit breaker MCB 125A

By Schneider Electric

₹21,239 ~~₹23,220~~

You save ₹1,981!

8.53% OFF

The Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 125A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity. The Acti9 C120N is suitable for use in domestic appliances such as washing machines, fridges, freezers, ovens etc that require more than 200VA but less than 2000W. The X-Terminal is a terminal for input and output in the electrical field. It is available in two different versions: the XT-40 and the XT-50. The XT-40 has a 16A output current which can be used for example to supply a PLC. The XT-50 has a 32A output current which can be used for example to supply a light bulb or an electric motor. The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is going from 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 81mm x (D) 73mm. The weight is 0.41kg. It has an IP20 degree of protection (as per IEC/EN 60529)

Schneider A9N1P04C 4 A Single Pole Modular Circuit Breakers - xC60

Ships within 25 days

Schneider A9N1P04C 4 A Single Pole Modular Circuit Breakers - xC60

By Schneider Electric

₹648

Ships within 30 days

Schneider Electric Easy9 4 Pole 10 kA Miniature Circuit Breaker (MCB), EZ9F714__ Series

By Schneider Electric

₹2,359 - ₹6,253

Schneider Electric Easy9 4 Pole 10 kA Miniature Circuit Breaker (MCB) a Miniature Circuit Breaker (MCB) is an essential component in electrical systems designed to protect circuits from overloads and short circuits. Compact in size, MCBs are widely used in residential, commercial, and industrial applications due to their efficiency and reliability. At its core, an MCB consists of a switch mechanism operated by a bimetallic strip or an electromagnet. When the current flowing through the circuit exceeds the rated capacity of the MCB, it trips, interrupting the flow of electricity and preventing damage to the circuit and connected devices. This quick response helps safeguard against overheating and fire hazards. MCBs are available in various current ratings and trip characteristics to suit different applications. Common trip curves include B, C, and D types, each offering specific levels of protection against overloads and short circuits. Installation of MCBs is straightforward, typically done within electrical distribution panels or consumer units. They provide a convenient alternative to traditional fuses, offering faster response times and the ability to reset after tripping, reducing downtime. Overall, Miniature Circuit Breakers play a crucial role in electrical safety, providing reliable protection against electrical faults and ensuring the smooth operation of electrical systems.

Type of Product : Miniature Circuit Breaker (MCB)

Breaking Capacity : 10 kA

No. of Pole : 4 Pole

Schneider Electric Pack of 4 MCB K60H 3P 50A C 10kA

Ships within 25 days

Schneider Electric K60H 3 Pole 10kA MCB, A9KF713__BQ Series (Pack of 4)

By Schneider Electric

Pack of 4 piece

₹4,483 - ₹6,489

Schneider Electric K60H 3 Pole 10kA MCB (Pack of 4) a Miniature Circuit Breaker (MCB) is an essential component in electrical systems designed to protect circuits from overloads and short circuits. Compact in size, MCBs are widely used in residential, commercial, and industrial applications due to their efficiency and reliability. At its core, an MCB consists of a switch mechanism operated by a bimetallic strip or an electromagnet. When the current flowing through the circuit exceeds the rated capacity of the MCB, it trips, interrupting the flow of electricity and preventing damage to the circuit and connected devices. This quick response helps safeguard against overheating and fire hazards. MCBs are available in various current ratings and trip characteristics to suit different applications. Common trip curves include B, C, and D types, each offering specific levels of protection against overloads and short circuits. Installation of MCBs is straightforward, typically done within electrical distribution panels or consumer units. They provide a convenient alternative to traditional fuses, offering faster response times and the ability to reset after tripping, reducing downtime. Overall, Miniature Circuit Breakers play a crucial role in electrical safety, providing reliable protection against electrical faults and ensuring the smooth operation of electrical systems.

Type of Product : Circuit Breaker MCB

No. of Pole : 3 Pole

Schneider A9N18365 Modular Circuit Breakers - C120 (3 Pole 80 A)

Ships within 25 days

Schneider Electric C120 3 Pole 15 kA Modular Circuit Breakers, A9N18__ Series

By Schneider Electric

₹10,383 - ₹41,299

Schneider Electric C120 3 Pole 15 kA Modular Circuit Breakers Modular circuit breakers are essential components in electrical systems, designed to protect circuits from overload or short circuits. Unlike traditional fuse-based protection, circuit breakers can be reset after tripping, providing a more convenient and cost-effective solution for managing electrical faults. The term "modular" refers to the ability of these circuit breakers to be easily installed, replaced, or expanded upon in a modular fashion. This modularity allows for greater flexibility in system design and maintenance, as individual modules can be added or swapped without needing to overhaul the entire system. Modular circuit breakers typically consist of a base unit and interchangeable modules, each serving a specific function such as overload protection, short circuit protection, or ground fault protection. These modules can be mixed and matched according to the requirements of the electrical system, providing customized protection for different circuits. One of the key advantages of modular circuit breakers is their scalability. As electrical systems grow or change over time, additional protection can be added simply by installing more modules or replacing existing ones with higher-rated versions. Overall, modular circuit breakers offer a versatile and adaptable solution for safeguarding electrical circuits, making them a preferred choice in residential, commercial, and industrial applications alike.

Type of Product : Modular Circuit Breakers

Breaking Capacity : 15 kA

No. of Pole : 3 Pole

Ships within 30 days

Schneider Electric Easy9 2 Pole 10 kA Miniature Circuit Breaker (MCB), EZ9F_12_ Series

By Schneider Electric

₹1,061 - ₹4,601

Schneider Electric Easy9 2 Pole 10 kA Miniature Circuit Breaker (MCB) a Miniature Circuit Breaker (MCB) is an essential component in electrical systems designed to protect circuits from overloads and short circuits. Compact in size, MCBs are widely used in residential, commercial, and industrial applications due to their efficiency and reliability. At its core, an MCB consists of a switch mechanism operated by a bimetallic strip or an electromagnet. When the current flowing through the circuit exceeds the rated capacity of the MCB, it trips, interrupting the flow of electricity and preventing damage to the circuit and connected devices. This quick response helps safeguard against overheating and fire hazards. MCBs are available in various current ratings and trip characteristics to suit different applications. Common trip curves include B, C, and D types, each offering specific levels of protection against overloads and short circuits. Installation of MCBs is straightforward, typically done within electrical distribution panels or consumer units. They provide a convenient alternative to traditional fuses, offering faster response times and the ability to reset after tripping, reducing downtime. Overall, Miniature Circuit Breakers play a crucial role in electrical safety, providing reliable protection against electrical faults and ensuring the smooth operation of electrical systems.

Type of Product : Miniature Circuit Breaker (MCB)

Breaking Capacity : 10 kA

No. of Pole : 2 Pole

Schneider Electric Pack of 12 MCB K60H 1P 1A C 10kA

Ships within 25 days

Schneider Electric Pack of 12 MCB K60H 1P 1A C 10kA

By Schneider Electric

Pack of 12 piece

₹3,756

This Acti9 K60H product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 1A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 240/415VAC conforming to EN 60898-1 standard and at conforming to standard. This product is compliant with EN/IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. The connection can be made downstream by biconnect comb busbar. It can be also made upstream/downstream by tunnel terminals. A padlock device is available for work to be carried out on live parts. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 81mm x (D) 70mm. The weight is 0.12kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 55°C. The storage temperature is -25°C to 85°C.

Schneider A9R21463 4 Pole Circuit breaker MCB 63A

Ships within 30 days

Schneider A9R21463 4 Pole Circuit breaker MCB 63A

By Schneider Electric

₹14,159 ~~₹16,877~~

You save ₹2,718!

16.1% OFF

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 63A In rated current, 30mA earth leakage sensitivity and A type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles A protective relay provides additional protection against over-currents and short circuits that can occur on feeder busses where there are many RCCBs installed together or close together. It also helps to protect against earth faults that are not detected by RCCBs due This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 63A In rated current, 30mA earth leakage sensitivity and A type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles A protective relay provides additional protection against over-currents and short circuits that can occur on feeder busses where there are many RCCBs installed together or close together. It also helps to protect against earth faults that are not detected by RCCBs due

Schneider EZC250N3200 3 Pole Circuit Breaker

Ships within 25 days

Schneider EZC250N3200 3 Pole Circuit Breaker

By Schneider Electric

₹14,170

EasyPact EZC250N is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 200A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (105mm x 165mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC250N is compliant with international standards (IEC 60947, UL 508) and marine certifications. EasyPact EZC250N is designed to protect low voltage installations from short circuits and overloads in industrial environments such as factories, workshops, warehouses, etc... It provides overcurrent protection for both single phase and three-phase power systems up to 415 VAC 50/60 Hz nominal voltage or 250 VDC nominal voltage.

Schneider Electric 16 A 1 Pole Miniature Circuit Breaker 10 kA, A9KF21116BQ (Pack of 12)

Ships within 30 days

Schneider Electric 16 A 1 Pole Miniature Circuit Breaker 10 kA, A9KF21116BQ (Pack of 12)

By Schneider Electric

₹2,451

The Schneider Electric Acti9 K60H 16A B-Curve Single Pole MCB, identified by the model A9KF21116BQ, is a miniature circuit breaker (MCB) designed for use in low-voltage electrical distribution systems. Acti9 Series: The Acti9 series by Schneider Electric is known for its modular and efficient solutions for low-voltage electrical distribution. These systems are designed for safety, reliability, and ease of installation K60H: The "K60H" designation likely refers to the specific model or range within the Acti9 series. The K60H MCBs are designed for circuit protection and are available in various current ratings and trip characteristics 16A B-Curve: The MCB has a current rating of 16 amperes, indicating the maximum continuous current it can carry under normal operating conditions. The "B-Curve" designation refers to the tripping characteristic of the MCB. B-Curve MCBs are typically used for applications with moderate inrush currents Single Pole: This MCB is a single-pole device, providing protection for one phase or conductor in an electrical system. Single-pole MCBs are commonly used in both residential and commercial applications Breaking Capacity: 10 kA: The breaking capacity of 10 kA (kiloamperes) indicates the maximum fault current that the MCB can safely interrupt without sustaining damage. A higher breaking capacity is suitable for installations where fault currents can be relatively high Application: The A9KF21116BQ MCB is suitable for a variety of low-voltage electrical applications where circuit protection is required. It can be used in distribution boards, switchboards, and other electrical panels Modular Design: MCBs in the Acti9 series typically have a modular design, allowing for easy installation and integration into electrical panels and switchboards

Schneider A9N3P06D 6 A Three Pole Modular Circuit Breakers - xC60

Ships within 25 days

Schneider A9N3P06D 6 A Three Pole Modular Circuit Breakers - xC60

By Schneider Electric

₹2,005 ~~₹2,369~~

You save ₹364!

15.38% OFF

Ships within 30 days

Schneider Electric Easy9 3 Pole 6 kA Miniature Circuit Breaker (MCB), EZ9F763__ Series

By Schneider Electric

₹1,415 - ₹5,073

Schneider Electric Easy9 3 Pole 6 kA Miniature Circuit Breaker (MCB) a Miniature Circuit Breaker (MCB) is an essential component in electrical systems designed to protect circuits from overloads and short circuits. Compact in size, MCBs are widely used in residential, commercial, and industrial applications due to their efficiency and reliability. At its core, an MCB consists of a switch mechanism operated by a bimetallic strip or an electromagnet. When the current flowing through the circuit exceeds the rated capacity of the MCB, it trips, interrupting the flow of electricity and preventing damage to the circuit and connected devices. This quick response helps safeguard against overheating and fire hazards. MCBs are available in various current ratings and trip characteristics to suit different applications. Common trip curves include B, C, and D types, each offering specific levels of protection against overloads and short circuits. Installation of MCBs is straightforward, typically done within electrical distribution panels or consumer units. They provide a convenient alternative to traditional fuses, offering faster response times and the ability to reset after tripping, reducing downtime. Overall, Miniature Circuit Breakers play a crucial role in electrical safety, providing reliable protection against electrical faults and ensuring the smooth operation of electrical systems.

Type of Product : Miniature Circuit Breaker (MCB)

Breaking Capacity : 6 kA

No. of Pole : 3 Pole

Schneider GV2L32 3 Pole Motor Circuit Breaker 32 A

Ships within 25 days

Schneider GV2L32 3 Pole Motor Circuit Breaker 32 A

By Schneider Electric

₹9,321

TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 50kA@400V. Connection by screw clamp terminals. Start-stop control by rotary handle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD32 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). TeSys GV motor circuit breakers are designed for heavy duty industrial applications such as motors and transformers up to 150kW three-phase. They provide a magnetic protection with a tripping level at 13xIn and high breaking capacity Icu 50kA@400V. Connection by screw clamp terminals or busbar terminal block (max 6 poles). These breakers are available in different models according to the rated current from 10A to 630A and voltages from 400V to 600V three phase dry type.

Schneider A9N1P02C 2 A Single Pole Modular Circuit Breakers - xC60

Ships within 25 days

Schneider A9N1P02C 2 A Single Pole Modular Circuit Breakers - xC60

By Schneider Electric

₹695

Schneider A9N1P03D Modular Circuit Breakers - xC60 (1 Pole D Type 3 A)

Ships within 30 days

Schneider A9N1P03D Modular Circuit Breakers - xC60 (1 Pole D Type 3 A)

By Schneider Electric

₹683 ~~₹695~~

You save ₹12!

1.73% OFF

Page 1 of 3 results

Product Name	Specifications	Expected Price	Dispatch Time	Discount
Schneider A9N61515 32 A Single Pole DC MCB	Breaking Capacity 6 kA \| Dimension 18(L)x73(W)x18(D) mm	₹648	24 hrs	55.4% OFF
Schneider MCB 10A 2 Pole A9N61528	Breaking Capacity 6 kA \| Impulse Withstand Voltage 6kV	₹2,123	25 days	--
Schneider A9N61519 63 A Single Pole DC MCB	Breaking Capacity 6 kA \| Dimension 81(H)x18(W)x78.5(D) mm	₹778	24 hrs	54.98% OFF

Schneider-Electric Miniature Circuit Breakersmcb

Top Selling Schneider-Electric Miniature Circuit Breakersmcb Products Price List for June 2026
