Schneider-Electric Relay

Showing 40 out of 705 products

Sort by

Recommended New Price : Low to High Price : High to Low

Ships within 24 hrs

Schneider Electric 5 A 2 C/O Without Push-Button Miniature Plug-in Relay, RXM2LB_ Series

By Schneider Electric

₹412 - ₹447

You save ₹129!

23.84% OFF

The Schneider Electric 5 A 2 C/O Without Push-Button Miniature Plug-in Relay is a compact and versatile control device designed for switching applications in industrial and commercial environments. Manufactured by Schneider Electric, a global leader in energy management and automation solutions, this relay offers reliable performance and ease of installation. With a current rating of 5 A and two changeover (C/O) contacts, this miniature plug-in relay provides robust switching capabilities for various automation and control tasks. It is suitable for controlling electrical circuits, such as motors, lights, heaters, and more. Featuring a plug-in design, the relay can be easily installed into compatible relay sockets without the need for wiring or soldering, reducing installation time and complexity. Its compact size and durable construction make it suitable for use in control panels, enclosures, and machinery. The Schneider Electric 5 A 2 C/O Without Push-Button Miniature Plug-in Relay is an ideal solution for applications requiring reliable and efficient switching of electrical loads.

Type of Product : Miniature Plug-in Relay

Explore other Variants (3)

Ships within 24 hrs

Schneider Electric Residual Current Protection Relay RH99M Type 50/60 Hz

By Schneider Electric

₹21,239 - ₹27,139

The Schneider Electric Residual Current Protection Relay RH99M Type 50/60 Hz is a sophisticated electrical protection device used primarily to detect and respond to residual currents in AC power systems operating at frequencies of 50 or 60 Hz. Residual currents are imbalances in electrical currents that occur when leakage to ground or through a person occurs, posing significant electrical safety risks. Key features of the Schneider Electric RH99M Residual Current Protection Relay include its capability to continuously monitor the residual currents in the electrical system. It is designed to swiftly detect even small imbalances between the live and neutral conductors, which can indicate a fault or leakage scenario. The relay is programmable and adjustable, allowing for precise configuration to match specific installation requirements. This flexibility ensures optimal performance without unnecessary tripping. Upon detecting a residual current above the preset threshold, the RH99M relay initiates a protective action, such as activating an alarm or tripping the circuit breaker. This rapid response helps prevent electric shocks, fire hazards, and equipment damage. The RH99M is suitable for various industrial, commercial, and residential applications where electrical safety is paramount. It complies with international standards and regulations, ensuring reliability and adherence to safety protocols. Overall, the Schneider Electric Residual Current Protection Relay RH99M Type 50/60 Hz provides essential protection against residual currents, enhancing the safety and reliability of electrical installations.

Application : Protection

Type of Product : Residual Current Protection Relay

Mounting Type : DIN Rail

Type : RH99M

Range : VigiPacT

Minimum Load : 10 mA at 12 V

Thermal Current : 8 A

Maximum Power Consumption : 4 VA

Sensitivity : 0.03-30 A

Explore other Variants (2)

Ships within 24 hrs

Schneider Electric TeSys DecaThermal Overload Relay (0.1-32 Amp), LRD0_ Series

By Schneider Electric

₹1,769 - ₹4,955

Schneider Electric TeSys DecaThermal Overload Relay (0.1-32 Amp) thermal overload relay is a protective device used in electrical circuits to prevent damage caused by overheating. It works by monitoring the current flowing through the circuit and detecting any excessive current that could lead to overheating of the system. When the current exceeds a preset threshold for a specified period, the relay triggers a response to interrupt the circuit, thus preventing further flow of electricity. This type of relay contains a bimetallic strip or a heating element that expands when exposed to excessive heat, causing it to actuate a switch and break the circuit. By disconnecting the power supply in case of overload, thermal overload relays help prevent damage to equipment, electrical fires, and other hazards. Thermal overload relays are commonly used in applications such as motor protection, where they provide crucial protection against overcurrent conditions.

Type of Product : Thermal Overload Relay

Explore other Variants (15)

Ships within 3 days

Schneider IH14000100 Selector Switch for Fan, Wiser 4A

By Schneider Electric

₹27,139

The Z-Wave Plus technology offers an increased range and enhanced signal strength. The Z-Wave Plus controller is capable of communicating with other Z-Wave Plus devices. This feature allows the network to grow larger and more powerful without additional hardware costs or installation hassles. One Touch Add: One touch add makes it easy to add new devices to your network. Simply hold down the button on your controller for 5 seconds and then press the button on any device you wish to add. This will ensure that your device is added securely and automatically, saving you time and effort during setup. Flexible Networking: Z-Wave networks can be extended in size by adding more controllers at any location in your home or business. This allows you to expand functionality by adding additional sensors, lights, thermostats and more anywhere in your home or business without worrying about running out of ports on any given controller.

Add to Cart Buy Now

Related Searches

schneider electric power relay

schneider electric general purpose relay

schneider electric solid state relay

schneider electric pluggable interface relay

schneider electric measuring and monitoring relay

Ships within 6 days

Schneider Electric EasyPact TVS Thermal Overload Relay for E06__E38, LRE0_ Series

By Schneider Electric

₹1,651 - ₹5,663

Schneider Electric EasyPact TVS Thermal Overload Relay for E06__E38 thermal overload relay is a protective device used in electrical circuits to prevent damage caused by overheating. It works by monitoring the current flowing through the circuit and detecting any excessive current that could lead to overheating of the system. When the current exceeds a preset threshold for a specified period, the relay triggers a response to interrupt the circuit, thus preventing further flow of electricity. This type of relay contains a bimetallic strip or a heating element that expands when exposed to excessive heat, causing it to actuate a switch and break the circuit. By disconnecting the power supply in case of overload, thermal overload relays help prevent damage to equipment, electrical fires, and other hazards. Thermal overload relays are commonly used in applications such as motor protection, where they provide crucial protection against overcurrent conditions.

Type of Product : Thermal Overload Relay

Explore other Variants (13)

Ships within 6 days

Schneider Electric TeSys DecaThermal Overload Relay Series (23-104 Amp), LRD33_ Series

By Schneider Electric

₹3,539 - ₹8,613

Schneider Electric TeSys DecaThermal Overload Relay Series (23-104 Amp) thermal overload relay is a protective device used in electrical circuits to prevent damage caused by overheating. It works by monitoring the current flowing through the circuit and detecting any excessive current that could lead to overheating of the system. When the current exceeds a preset threshold for a specified period, the relay triggers a response to interrupt the circuit, thus preventing further flow of electricity. This type of relay contains a bimetallic strip or a heating element that expands when exposed to excessive heat, causing it to actuate a switch and break the circuit. By disconnecting the power supply in case of overload, thermal overload relays help prevent damage to equipment, electrical fires, and other hazards. Thermal overload relays are commonly used in applications such as motor protection, where they provide crucial protection against overcurrent conditions.

Type of Product : Thermal Overload Relay

Explore other Variants (7)

Ships within 6 days

Schneider Electric EasyPact TVS Thermal Overload Relay for E40__E95, LRE3_ Series

By Schneider Electric

₹5,899 - ₹7,905

Schneider Electric EasyPact TVS Thermal Overload Relay for E40__E95 thermal overload relay is a protective device used in electrical circuits to prevent damage caused by overheating. It works by monitoring the current flowing through the circuit and detecting any excessive current that could lead to overheating of the system. When the current exceeds a preset threshold for a specified period, the relay triggers a response to interrupt the circuit, thus preventing further flow of electricity. This type of relay contains a bimetallic strip or a heating element that expands when exposed to excessive heat, causing it to actuate a switch and break the circuit. By disconnecting the power supply in case of overload, thermal overload relays help prevent damage to equipment, electrical fires, and other hazards. Thermal overload relays are commonly used in applications such as motor protection, where they provide crucial protection against overcurrent conditions.

Type of Product : Thermal Overload Relay

Explore other Variants (5)

Ships within 6 days

Schneider RE17RAMU Electric Timer Func A At 1C O 24VAC Dc 240VAC

By Schneider Electric

₹2,949

The RE17R is a single function timer with a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. The RE17R has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. The RE17R can be set between 0.1 seconds and 100 hours in 0.1 second increments by means of rotary trimmers. It has an output rating of 8A, is 17.5mm wide and can be supplied with 24 V DC or 24 to 240 V AC. It also has 1 changeover contact SPDT (single pole double throw). This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It

Add to Cart Buy Now

Ships within 6 days

Schneider Electric Harmony Range Multifunction Type Electronic Timer Relay, RE22 Series

By Schneider Electric

₹4,483 - ₹16,519

The Schneider Electric Harmony Range Multifunction Type RE22 Electronic Timer Relay is an advanced device designed to provide versatile timing control in industrial automation and control applications. This timer relay from the Harmony range offers multiple timing functions within a single unit, allowing it to perform various timing operations based on specific application requirements. Equipped with intuitive controls and settings, the RE22 timer relay enables users to select and configure different timing functions easily using selector switches or programmable inputs. These functions typically include delay on operate, interval, asymmetrical flashing, pulse shaping, and more. This flexibility allows the relay to support a wide range of automation tasks where precise timing and operational sequences are crucial. The timer relay ensures accurate timing with adjustable delay periods and settings tailored to optimize operational processes and enhance efficiency in automated systems. Its robust construction and design ensure durability and reliability in challenging industrial environments, contributing to long-term performance and stability. Built to meet international standards for quality and safety, the Harmony Range RE22 timer relay exemplifies Schneider Electric's commitment to delivering high-performance solutions for industrial automation and control. It integrates seamlessly into electrical panels and systems, facilitating straightforward installation and maintenance. Overall, the Schneider Electric Harmony Range Multifunction Type RE22 Electronic Timer Relay offers comprehensive timing capabilities and versatility, supporting efficient and reliable operation in diverse industrial applications where precise timing control is essential for optimizing productivity and ensuring operational efficiency.

Type of Product : RE22 Electronic Timer Relay

Type : Multifunction

Range : Harmony

Nominal Output Current : 8 A

Discrete Output Type : Relay

Voltage Range : 0.85 - 1.1 Us

Explore other Variants (4)

Ships within 6 days

Relay Model No. LRD07/range 1.6 to 2.5 Amp.

By Schneider Electric

₹2,713

Relay Model No. LRD07/range 1.6 to 2.5 Amp.

Add to Cart Buy Now

Ships within 6 days

Schneider Electric EasyPact TVS Thermal Overload Relay for E300__E400, LRE48_ Series

By Schneider Electric

₹21,239 - ₹25,959

Schneider Electric EasyPact TVS Thermal Overload Relay for E300__E400 thermal overload relay is a protective device used in electrical circuits to prevent damage caused by overheating. It works by monitoring the current flowing through the circuit and detecting any excessive current that could lead to overheating of the system. When the current exceeds a preset threshold for a specified period, the relay triggers a response to interrupt the circuit, thus preventing further flow of electricity. This type of relay contains a bimetallic strip or a heating element that expands when exposed to excessive heat, causing it to actuate a switch and break the circuit. By disconnecting the power supply in case of overload, thermal overload relays help prevent damage to equipment, electrical fires, and other hazards. Thermal overload relays are commonly used in applications such as motor protection, where they provide crucial protection against overcurrent conditions.

Type of Product : Thermal Overload Relay

Explore other Variants (2)

Ships within 6 days

Schneider Electric Coil MX or MN For Fixe Breaker, 336_ Series

By Schneider Electric

₹8,259 - ₹11,091

The Schneider Electric Coil MX or MN is an essential component used in fixed circuit breakers, such as those in the 33659, 33662, and 33673 series. Here's an overview of its features and functions: Key Features: Electromagnetic Actuation: The MX or MN coil is an electromagnetic coil that serves as the actuator for the fixed circuit breaker. When energized, the coil generates a magnetic field, which in turn causes the breaker's contacts to open or close, thereby controlling the flow of electrical current through the circuit. Voltage Compatibility: The coil is designed to operate at specific voltage ratings, typically matching the voltage rating of the circuit breaker it is intended for. Common voltage ratings include 24V, 48V, 110V, 220V, and 380V, among others, depending on the application requirements. Coil Type: Schneider Electric offers different types of coils, including MX and MN types. The choice between MX and MN coils may depend on factors such as the application, voltage compatibility, and regional standards. Compatibility: The MX or MN coil is specifically designed for compatibility with Schneider Electric fixed circuit breakers in the 33659, 33662, and 33673 series. It is engineered to seamlessly integrate with these circuit breakers, ensuring reliable operation and performance. Reliability: Schneider Electric coils are known for their reliability and durability, even in demanding industrial environments. They are designed to withstand mechanical stress, temperature variations, and other environmental factors encountered in electrical installations. Easy Installation: The coil is designed for easy installation, typically featuring plug-in or screw-type terminals for quick and convenient connection to the circuit breaker. This simplifies installation and maintenance tasks, reducing downtime and labor costs. Compliance: Schneider Electric coils comply with relevant industry standards and regulations for electrical safety and performance. Compliance with standards ensures reliability and compatibility with other components in the electrical system. Applications: The Schneider Electric Coil MX or MN is used in a wide range of applications where fixed circuit breakers are employed, including: Industrial power distribution systems Commercial buildings Residential electrical panels Motor control centers Electrical substations Process control systems Conclusion: The Schneider Electric Coil MX or MN is a critical component used in fixed circuit breakers to control the flow of electrical current in various applications. With features such as electromagnetic actuation, voltage compatibility, coil type options, compatibility with Schneider Electric circuit breakers, reliability, easy installation, and compliance with standards, the MX or MN coil ensures safe and reliable operation of electrical systems while providing efficient protection against overcurrents and electrical faults.

Type of Product : Voltage Release

Frequency : 50/60 Hz

Range : ComPacT

Power : 4.5 VA

Explore other Variants (3)

Ships within 6 days

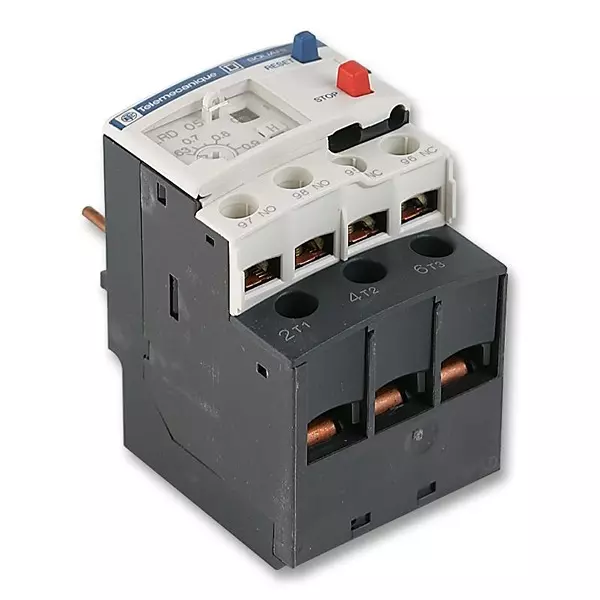

SCHNEIDER ELECTRIC Relay, Overload, 7.0-10A, Lrd14

By Schneider Electric

₹2,477

Add to Cart Buy Now

Ships within 10 days

Schneider Electric 2 CO Plug In Relay With LED Indicator and Standard Cover Lockable Test Button, RXG22_ Series

By Schneider Electric

₹719 - ₹872

The Schneider Electric 2 CO Plug In Relay with LED indicator and standard cover lockable test button integrates essential features for efficient and reliable electrical control applications. Designed for ease of use and visibility, this relay model incorporates a clear LED indicator that provides instant visual feedback on relay status, enhancing monitoring and troubleshooting capabilities. Its plug-in design facilitates quick installation and maintenance, minimizing operational downtime and ensuring seamless integration into various industrial and commercial environments. The standard cover lockable test button promotes safety by preventing unintended activation and enabling controlled testing procedures without compromising operational integrity. Schneider Electric's commitment to durability and performance is evident in this relay's robust construction, capable of withstanding rigorous operational conditions. It supports a wide range of voltage and current ratings, accommodating diverse application requirements with consistent reliability. Overall, the Schneider Electric 2 CO Plug In Relay with LED indicator and standard cover lockable test button exemplifies the brand's dedication to providing innovative solutions in electrical control, combining functionality, visibility, and safety to meet the needs of modern industrial automation effectively.

Type of Product : Plug In Relay

Controls Type : Standard Cover Lockable Test Button

Range : Harmony

Type : With LED Indicator

Contact Type : 2 CO

Conventional Enclosed Thermal Current : 5 A at -40 to 55 °C

Load Current : 5 A at 250 V AC

Rated Current : 5 A

Explore other Variants (6)

Ships within 25 days

Schneider Electric TeSys Deca Electronic Overload Relay D-Model (0.1-32 Amp), LR9D_ Series

By Schneider Electric

₹9,085 - ₹20,059

Schneider Electric TeSys Deca Electronic Overload Relay D-Model (0.1-32 Amp) electronic overload relay is a crucial component in electrical systems, designed to protect motors from damage caused by overloading. Unlike traditional thermal overload relays that use bimetallic strips, electronic overload relays utilize advanced electronic circuits to monitor motor current. When the current exceeds a preset threshold for a specified duration, the relay trips, disconnecting power to the motor and preventing overheating and potential damage. These relays offer several advantages over their mechanical counterparts, including greater accuracy, faster response times, and the ability to adjust trip settings more precisely. Additionally, electronic overload relays often feature advanced diagnostics and communication capabilities, allowing for remote monitoring and integration with broader control systems. Overall, electronic overload relays play a vital role in ensuring the safe and efficient operation of electrical equipment in various industrial and commercial applications.

Type of Product : Electronic Overload Relay

Explore other Variants (4)

Ships within 25 days

Schneider Electric 4 NO 50 Hz Control Relay, CAE40__ Series

By Schneider Electric

₹955 - ₹4,011

The Schneider Electric 4 NO 50 Hz Control Relay, part of the CAE40__ Series, is a versatile and reliable solution for a wide range of control applications. With four normally open (NO) contacts, this relay offers flexibility in controlling multiple circuits simultaneously. Operating at a frequency of 50 Hz, it is optimized for compatibility with standard power systems. Designed with Schneider Electric's renowned quality and engineering expertise, this relay ensures robust performance and longevity. It features a compact and durable construction, making it suitable for various industrial environments. The CAE40__ Series relay is easy to install and integrate into existing control systems, thanks to its standardized form factor and terminal connections. It provides precise and efficient control, enhancing the reliability and efficiency of your operations. Equipped with advanced features such as overload protection and low power consumption, this relay offers peace of mind while optimizing energy usage. Whether used in manufacturing plants, utilities, or commercial buildings, the Schneider Electric 4 NO 50 Hz Control Relay delivers superior performance and reliability, making it an essential component in modern control systems.

Auxiliary Contacts : 4NO

Type of Product : Control Relay

Frequency : 50Hz

Explore other Variants (5)

Ships within 25 days

Schneider Electric 2NO + 2NC Control Relay, CAE22_5 Series

By Schneider Electric

₹955 - ₹3,303

The Schneider Electric CAE22_5 Series Control Relay offers a versatile solution for controlling electrical circuits in industrial applications. With its configuration of 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, this relay provides flexibility and reliability in managing circuit operations. Designed with precision engineering, the CAE22_5 Series ensures efficient performance and long-term durability, meeting the rigorous demands of industrial environments. Its robust construction and high-quality components guarantee dependable operation even in harsh conditions, enhancing operational efficiency and minimizing downtime. This control relay is engineered to seamlessly integrate into existing electrical systems, offering ease of installation and compatibility with a wide range of equipment and machinery. Its compact design saves space while delivering optimal functionality, making it suitable for various industrial settings. Equipped with advanced features, including reliable switching mechanisms and superior insulation, the CAE22_5 Series Control Relay delivers precise control over electrical circuits, ensuring safety and efficiency in operations. Whether used for motor control, lighting systems, or other industrial applications, this relay provides dependable performance and peace of mind. In summary, the Schneider Electric CAE22_5 Series Control Relay combines reliability, versatility, and efficiency, making it an ideal choice for industrial control applications where precise and dependable circuit management is essential.

Auxiliary Contacts : 2NO + 2NC

Type of Product : Control Relay

Frequency : 50Hz

Series : EasyPact TVS

Explore other Variants (5)

Ships within 25 days

Schneider Electric Harmony Solid State Relay

By Schneider Electric

₹506 - ₹4,483

The Schneider Electric Harmony Solid State Relay is a high-performance control device designed for precise and reliable switching of electrical circuits in industrial and commercial applications. Manufactured by Schneider Electric, a global leader in energy management and automation solutions, this solid-state relay offers advanced features for optimal performance. With its solid-state design, the Harmony Solid State Relay provides fast and efficient switching without mechanical contacts, resulting in reduced wear and tear and enhanced durability. It offers precise control over electrical loads, ensuring accurate and reliable operation. Featuring a compact and robust construction, the relay can be easily integrated into control panels, enclosures, and machinery. Its versatile functionality makes it suitable for a wide range of applications, including motor control, lighting control, heating control, and more. The Schneider Electric Harmony Solid State Relay is an ideal solution for applications requiring precise and reliable switching of electrical loads, contributing to improved efficiency and productivity.

Type of Product : Harmony Solid State Relays

Explore other Variants (2)

Ships within 25 days

Schneider Electric 2 Pole TeSys Series AC Control Relay, CA2KN____ Series

By Schneider Electric

₹1,415 - ₹4,365

The Schneider Electric 2 Pole TeSys Series AC Control Relay, specifically the CA2KN series, epitomizes reliability and efficiency in industrial control applications. Designed with precision and crafted with quality, this relay is engineered to meet the demands of modern control systems. With two poles, it efficiently manages electrical currents, ensuring seamless operation in a variety of scenarios. Its compact design belies its robust capabilities, making it ideal for space-constrained environments without compromising on performance. The TeSys series is renowned for its durability, capable of withstanding harsh industrial conditions and maintaining consistent operation over extended periods. The CA2KN series offers versatility, catering to a wide range of control needs across industries. Whether in manufacturing plants, automotive facilities, or commercial buildings, this relay delivers consistent performance, contributing to smooth and reliable operations. Schneider Electric, a leader in energy management and automation, has imbued the TeSys series with cutting-edge technology and engineering prowess. With the CA2KN series, they continue to uphold their commitment to innovation and excellence, providing businesses with the tools they need to optimize their control systems and drive efficiency.

Type of Product : AC Control Relay

Pole : 2.0

Series : TeSys

Features : Conformity to International Standard: IEC, UL, CSA

Explore other Variants (9)

Ships within 25 days

Schneider Electric Analog Electronic Over Current Relay without Display, EOCRSS-__S Series

By Schneider Electric

₹5,781 - ₹6,489

The Schneider Analog Electronic Over Current Relay without Display is a reliable protection device engineered to monitor electrical circuits and safeguard against overcurrent conditions. Manufactured by Schneider Electric, a global leader in energy management and automation solutions, this relay offers advanced functionality for precise current monitoring. Utilizing analog electronic technology, the relay continuously monitors the current passing through the circuit and activates when the current exceeds a predetermined threshold. It provides fast and accurate tripping to prevent damage to equipment and ensure personnel safety. Although it lacks a built-in display, the relay is designed for seamless integration into existing monitoring and control systems. Its compact and robust construction makes it suitable for a variety of applications, including motor protection, feeder protection, and distribution systems, in industrial and commercial environments. The Schneider Analog Electronic Over Current Relay without Display offers dependable protection against overcurrent events, contributing to the reliability and safety of electrical installations.

Type of Product : Analog Electronic Over Current Relay

Explore other Variants (3)

Ships within 25 days

Schneider Electric 8 A 2 C/O Voltage Control Relay, RM22UA3_MR Series

By Schneider Electric

₹11,681 - ₹12,979

The Schneider Electric 8 A 2 C/O Voltage Control Relay is a versatile control device designed for voltage monitoring and control applications in industrial and commercial environments. Manufactured by Schneider Electric, a global leader in energy management and automation solutions, this relay offers reliable performance and precise voltage regulation. With a current rating of 8 A and two changeover (C/O) contacts, this voltage control relay provides robust switching capabilities for various automation and control tasks. It is suitable for monitoring and controlling voltage levels in electrical circuits to ensure optimal performance and safety. Featuring advanced voltage control functionality, the relay can automatically regulate voltage levels within a specified range, preventing overvoltage or undervoltage conditions that could damage equipment or disrupt operations. Its compact size and durable construction make it suitable for use in control panels, enclosures, and machinery. The Schneider Electric 8 A 2 C/O Voltage Control Relay is an ideal solution for applications requiring precise voltage monitoring and control.

Type of Product : Voltage Control Relay

Explore other Variants (2)

Ships within 25 days

Schneider RM17TG20 Control Relay 183-484 V

By Schneider Electric

₹3,775

The RM17-TG relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. The RM17-TG relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts

Add to Cart Buy Now

Ships within 25 days

Schneider 33671 Electric Undervoltage Trip Mn 200 To 250 V Dc And

By Schneider Electric

₹8,731

This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage ranges from 24VDC to 30VDC or 24VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. The Auxiliary opens between 0 and 120 seconds after reaching the set response level and remains open for another 60 seconds. Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary

Add to Cart Buy Now

Ships within 26 days

Schneider Electric Acti9 iTLm 16A 1NO 230-240VAC Modular Impulse Relay, A9C34811

By Schneider Electric

₹3,893   ₹4,608

You save ₹715!

15.52% OFF

The Acti9 iTLm impulse relay is a sophisticated modular device designed for precise and reliable control in lighting applications. With a single pole (1P) configuration and one normally open contact (1NO), this relay offers a rated current of 16A, making it suitable for a variety of lighting setups. Its versatility is evident in its wide operating voltage range of 24VAC to 250VAC, and it functions seamlessly with control voltages of 230VAC to 240VAC or 110VDC. Boasting impressive electrical endurance, the iTLm can handle up to 200,000 cycles for AC-21 and 100,000 cycles for AC-22, providing durability and longevity in its operation. The relay operates with a switching frequency of 5 operations per minute or 100 operations per day, and the duration of the command order can be precisely set between 50ms to 1s, offering flexibility in control. Primarily designed for lighting control applications, the iTLm supports latched-type control orders from a changeover contact, such as a switch, time switch, or thermostat. Its DIN rail mountable design, compact dimensions (W) 18mm x (H) 84mm x (D) 60mm, and dual degree of protection (IP20 in the open and IP40 in an enclosure) make it easy to integrate into various electrical setups. The iTLm adheres to international standards, including IEC/EN 60669-1 and IEC/EN 60669-2-2, ensuring compliance with stringent safety and performance criteria. With a Ui rated insulation voltage of 440VAC, a Uimp rated impulse withstand voltage of 6kV, and an overvoltage category of IV, this impulse relay offers robust protection against electrical hazards. Its pollution degree of 3, operating temperature range from -20°C to 50°C, and storage temperature range from -40°C to 70°C make it suitable for diverse environmental conditions.

Add to Cart Buy Now

Ships within 25 days

Schneider Electric Varlogic APFC Relays Classic Range

By Schneider Electric

₹14,159 - ₹28,319

The Schneider Varlogic APFC Relays Classic Range is a reliable and cost-effective solution for power factor correction (APFC) in industrial and commercial electrical systems. Manufactured by Schneider Electric, a global leader in energy management and automation solutions, this relay offers essential features for efficient power factor correction. Designed to optimize energy efficiency and reduce electricity costs, the Varlogic APFC Relays Classic Range automatically monitors and regulates reactive power to maintain a stable power factor. This helps to minimize penalties associated with poor power factor and improve overall system efficiency. With its user-friendly interface and straightforward setup, the relay is easy to install and configure, making it suitable for a wide range of applications. Its robust construction and proven performance ensure reliable operation in demanding industrial environments. The Schneider Varlogic APFC Relays Classic Range provides an affordable and efficient solution for improving power quality and reducing energy consumption in electrical systems.

Type of Product : APFC Relays

Explore other Variants (3)

Ships within 25 days

Schneider Electric k Model TeSys Control Relay, CA3KN22__ Series

By Schneider Electric

₹2,005 - ₹2,477

The Schneider k Model TeSys Control Relay, from the CA3KN22__ series, is a versatile and reliable component designed for industrial control applications. With its robust construction and advanced features, this relay offers seamless control and protection for various electrical systems. Built to meet demanding industrial standards, the TeSys Control Relay excels in providing precise control over motor circuits, lighting systems, and other essential equipment. Its modular design allows for easy installation and integration into existing setups, simplifying maintenance and troubleshooting processes. Equipped with innovative technology, including thermal overload protection and short-circuit prevention mechanisms, the relay ensures optimal performance and safety in diverse operating conditions. Additionally, its compact size and efficient design make it suitable for space-constrained environments without compromising functionality. The CA3KN22__ series stands out for its reliability and durability, making it a preferred choice for engineers and technicians across industries. Whether in manufacturing plants, commercial facilities, or infrastructure projects, the Schneider TeSys Control Relay delivers consistent performance and peace of mind, ensuring smooth operations and minimizing downtime.

Auxiliary Contacts : 2NO + 2NC

Type of Product : DC Control Relay

Pole : 2

Series : TeSys

Features : Conformity to International Standard: IEC, UL, CSA

Explore other Variants (3)

Ships within 25 days

Schneider Electric Plug-In Relay with LED, RXM__B2__ Series

By Schneider Electric

₹459 - ₹754

You save ₹127!

14.46% OFF

The Schneider Electric Plug-In Relay with LED is a versatile control device designed for switching applications in industrial and commercial environments. Manufactured by Schneider Electric, a global leader in energy management and automation solutions, this relay offers reliable performance and enhanced visibility. Equipped with an LED indicator, the relay provides visual feedback of its status, allowing operators to easily monitor its operation from a distance. The LED indicator illuminates when the relay is activated, providing a clear indication of its switching state. Featuring a plug-in design, the relay can be easily installed into compatible relay sockets without the need for wiring or soldering, reducing installation time and complexity. Its compact size and durable construction make it suitable for use in control panels, enclosures, and machinery. The Schneider Electric Plug-In Relay with LED is an ideal solution for applications requiring reliable switching and clear status indication of electrical loads.

Type of Product : Plug-In Relay with LED

Explore other Variants (3)

Ships within 25 days

Schneider Electric Earth Leakage Relay RH10M Type AC 50/60 Hz 55-110 %

By Schneider Electric

₹15,339 - ₹15,339

The Schneider Electric Earth Leakage Relay RH10M Type AC 50/60 Hz 55-110% is a specialized device designed to protect electrical installations from earth leakage currents in AC power systems operating at 50 or 60 Hz frequencies. Earth leakage currents occur when electrical insulation fails or current flows to earth through unintended paths, potentially leading to electric shocks or equipment damage. This relay continuously monitors the current flowing through the protective earth conductor. It is adjustable, allowing sensitivity settings between 55% and 110% to accommodate varying installation requirements without compromising safety. When it detects an earth leakage current exceeding the set threshold, the relay activates a response to mitigate risks. This can include tripping the circuit breaker to disconnect power, thus preventing hazards like electric shocks or fires. The RH10M relay is versatile, suitable for industrial, commercial, and residential applications where safety and compliance with electrical standards are crucial. It meets international safety regulations, ensuring reliable operation and protection against electrical faults. Overall, the Schneider Electric Earth Leakage Relay RH10M enhances the safety and reliability of electrical systems by promptly detecting and responding to potentially hazardous earth leakage currents.

Mounting Type : DIN Rail

Type of Product : Earth Leakage Relay

Type : RH10M

Application : Protection

Sensitivity : 0.03 A

Minimum Load : 10 mA at 12 V

Thermal Current : 8 A

Range : VigiPacT

Maximum Power Consumption : 4 VA

Explore other Variants (2)

Ships within 25 days

Schneider Electric k Model TeSys Control Relay, CA3KN31__ Series

By Schneider Electric

₹2,005 - ₹4,837

The Schneider Electric TeSys Control Relay, specifically the CA3KN31__ Series, is a versatile and reliable component designed to control and protect electrical circuits in a variety of industrial applications. With its robust construction and advanced features, this control relay ensures optimal performance and safety. The TeSys Control Relay is engineered with precision and efficiency in mind, offering seamless integration into electrical systems. Its compact design allows for easy installation in control panels and switchboards, saving valuable space while providing essential functionality. Key features of the CA3KN31__ Series include high-quality contacts for reliable switching, a wide range of coil voltage options to suit different power requirements, and compatibility with various accessories for enhanced functionality. Additionally, this relay is designed for durability, capable of withstanding harsh environmental conditions and prolonged use in demanding industrial environments. Whether used in motor control, lighting systems, or other electrical applications, the Schneider Electric TeSys Control Relay delivers consistent performance and peace of mind. With its reputation for quality and innovation, Schneider Electric continues to be a trusted name in the electrical industry, providing solutions that meet the evolving needs of customers worldwide.

Auxiliary Contacts : 3NO + 1NC

Type of Product : DC Control Relay

Pole : 2

Series : TeSys

Features : Conformity to International Standard: IEC, UL, CSA

Explore other Variants (3)

Ships within 25 days

Schneider Electric TeSys DecaThermal Overload Relay (30-80 Amp), LRD3_ Series

By Schneider Electric

₹3,421 - ₹9,203

Schneider Electric TeSys DecaThermal Overload Relay (30-80 Amp) thermal overload relay is a protective device used in electrical circuits to prevent damage caused by overheating. It works by monitoring the current flowing through the circuit and detecting any excessive current that could lead to overheating of the system. When the current exceeds a preset threshold for a specified period, the relay triggers a response to interrupt the circuit, thus preventing further flow of electricity. This type of relay contains a bimetallic strip or a heating element that expands when exposed to excessive heat, causing it to actuate a switch and break the circuit. By disconnecting the power supply in case of overload, thermal overload relays help prevent damage to equipment, electrical fires, and other hazards. Thermal overload relays are commonly used in applications such as motor protection, where they provide crucial protection against overcurrent conditions.

Type of Product : Thermal Overload Relay

Explore other Variants (5)

Ships within 25 days

Schneider Electric Miniature 3 A 4 C/O Without Push-Button Relay, RXM4LB_ Series

By Schneider Electric

₹412 - ₹506

The Schneider Electric Miniature 3 A 4 C/O Without Push-Button Relay is a compact and versatile control device designed for switching applications in industrial and commercial settings. Manufactured by Schneider Electric, a global leader in energy management and automation solutions, this relay offers reliable performance in a miniature form factor. With a current rating of 3 A and four changeover (C/O) contacts, this relay provides precise control over electrical circuits, making it suitable for various automation and control applications. The absence of a push-button feature simplifies the relay's design, offering a straightforward and cost-effective solution for switching operations. Featuring a compact and space-saving design, the relay is easy to install in control panels or enclosures with limited space. Its robust construction and high-quality components ensure long-term reliability and performance in demanding industrial environments. The Schneider Electric Miniature 3 A 4 C/O Without Push-Button Relay is ideal for applications requiring compact and efficient switching solutions, such as lighting control, motor control, HVAC systems, and more.

Type of Product : Relay

Explore other Variants (6)

Ships within 25 days

Schneider Electric Compact Smart Relay, SR___ Series

By Schneider Electric

₹17,699 - ₹30,679

The Schneider Electric Compact Smart Relay is a versatile and intelligent control device designed for automation applications in industrial and commercial settings. Manufactured by Schneider Electric, a global leader in energy management and automation solutions, this relay offers advanced features in a compact and user-friendly package. Equipped with programmable logic capabilities, the Compact Smart Relay allows users to create custom control sequences and logic functions without the need for complex programming languages. It features a user-friendly interface and intuitive programming software, making it accessible to both novice and experienced users. With its compact size and DIN rail mounting, the relay can be easily integrated into existing control panels or enclosures. It offers a wide range of inputs and outputs to interface with sensors, actuators, and other devices, providing flexible control solutions for various applications. The Schneider Electric Compact Smart Relay provides reliable and efficient control, enhancing automation processes and improving system efficiency in diverse industrial and commercial environments.

Series : Zelio Logic

Type of Product : Compact Smart Relay

Cycle Time : 6-90 ms

Operating Altitude : 2000 m

Tightening Torque : 0.5 N.m

Explore other Variants (5)

Ships within 25 days

Schneider Electric 1 CO Plug In Relay Without LED Indicator and With Standard Test Button, RXG11_ Series

By Schneider Electric

₹565 - ₹719

The Schneider Electric 1 CO Plug In Relay without LED Indicator and with Standard Cover Lockable Test Button is a crucial component in industrial automation and control systems. This relay features a single changeover contact configuration, allowing it to switch between two positions to control electrical circuits effectively. Designed for easy installation, the plug-in format enables quick replacement and maintenance. The absence of an LED indicator simplifies the relay's design while maintaining essential functionality. Instead of an LED, it includes a standard cover that houses terminals for electrical connections and protects internal components. A notable feature is the lockable test button integrated into the relay's housing. This button facilitates manual testing of the relay's operation, ensuring reliability and allowing for verification without disrupting normal operation. Its lockable nature prevents unintended or unauthorized use, enhancing safety in industrial environments. The relay is suitable for various applications where dependable switching is required, such as in control panels, motor controls, and HVAC systems. It meets stringent reliability and durability standards, ensuring consistent performance in demanding industrial settings. Overall, the Schneider Electric 1 CO Plug In Relay without LED Indicator and with Standard Cover Lockable Test Button combines essential functionality with ease of installation and robust design, making it a reliable choice for industrial automation and control applications.

Type of Product : Plug In Relay

Controls Type : Standard Cover Lockable Test Button

Range : Harmony

Type : Without LED Indicator

Contact Type : 1 CO

Conventional Enclosed Thermal Current : 10 A at -40 to 55 °C

Load Current : 10 A 250 V AC

Rated Current : 10 A

Explore other Variants (4)

Ships within 25 days

Schneider Electric 4 CO 14 Pin RXM Miniature Relay Without LED Indicator, RXM4AB2_ Series

By Schneider Electric

₹754 - ₹766

The Schneider Electric 4 CO 14 Pin RXM Miniature Relay without LED Indicator is a compact and versatile electrical relay designed for precise control and switching of electrical circuits in various industrial and commercial applications. Featuring 4 CO (changeover) contacts, this relay allows a circuit to switch between four different states, providing flexibility in controlling multiple loads or functions within a system. The 14-pin configuration ensures compatibility with standard relay sockets, facilitating easy installation and replacement in existing systems. Unlike its counterpart with an LED indicator, this model does not include a visual status indicator. While lacking the LED feature for direct visual feedback of the relay's operational state, it maintains reliable performance in applications where external monitoring or control systems provide sufficient status indication. The RXM series relays from Schneider Electric are recognized for their robust construction and dependable operation, meeting industry standards for quality and reliability. They are suitable for use in control panels, automation systems, and other critical applications where precise switching and control of electrical circuits are essential. In summary, the Schneider Electric 4 CO 14 Pin RXM Miniature Relay without LED Indicator offers reliable functionality with four changeover contacts, making it an effective solution for applications requiring versatile and efficient electrical control. Its compact design and standardized pin configuration ensure seamless integration into various electrical systems.

Type of Product : RXM Miniature Relay

Controls Type : Standard Cover Lockable Test Button

Range : Harmony

Type : Without LED Indicator

Contact Material : AgNi

Utilisation Coefficient : 0.2

Contact Configuration : 4 CO

Operational Current : 6 A

No. Of Pin : 14

Explore other Variants (4)

Ships within 25 days

Schneider Electric 2 CO 8 Pin RXM Miniature Relay With LED Indicator, RXM2AB_ Series

By Schneider Electric

₹565 - ₹636

The Schneider Electric 2 CO 8 Pin RXM Miniature Relay with LED Indicator is a versatile component designed for precise control and switching of electrical circuits in industrial and commercial applications. Featuring 2 CO (changeover) contacts, this relay allows a circuit to switch between two different states, providing flexibility in controlling various loads. The 8-pin configuration ensures compatibility with standard relay sockets, facilitating easy installation and replacement. The integrated LED indicator provides visual feedback of the relay's operational status, indicating whether the relay coil is energized or de-energized. This feature enhances monitoring and troubleshooting capabilities, allowing operators to quickly verify the relay's condition without the need for additional equipment. The RXM series from Schneider Electric is renowned for its robust construction and reliable performance, meeting stringent industry standards for quality and durability. It is suitable for use in control panels, automation systems, and other critical applications where accurate switching and monitoring of electrical circuits are essential. In summary, the Schneider Electric 2 CO 8 Pin RXM Miniature Relay with LED Indicator offers enhanced functionality with visual status indication, making it an ideal choice for applications requiring precise control and monitoring of electrical loads. Its reliable operation and ease of integration make it a valuable component in modern electrical installations.

Type of Product : RXM Miniature Relay

Controls Type : Standard Cover Lockable Test Button

Range : Harmony

Type : With LED Indicator

Contact Material : AgNi

Utilisation Coefficient : 0.2

Contact Configuration : 2 CO

Operational Current : 12 A

No. Of Pin : 8

Explore other Variants (4)

Ships within 25 days

Schneider Electric EasyPact TVS Thermal Overload Relay (0.1-1 Amp), LRE0_ Series

By Schneider Electric

₹1,533 - ₹1,887

Schneider Electric EasyPact TVS Thermal Overload Relay (0.1-1 Amp) thermal overload relay is a protective device used in electrical circuits to prevent damage caused by overheating. It works by monitoring the current flowing through the circuit and detecting any excessive current that could lead to overheating of the system. When the current exceeds a preset threshold for a specified period, the relay triggers a response to interrupt the circuit, thus preventing further flow of electricity. This type of relay contains a bimetallic strip or a heating element that expands when exposed to excessive heat, causing it to actuate a switch and break the circuit. By disconnecting the power supply in case of overload, thermal overload relays help prevent damage to equipment, electrical fires, and other hazards. Thermal overload relays are commonly used in applications such as motor protection, where they provide crucial protection against overcurrent conditions.

Type of Product : Thermal Overload Relay

Explore other Variants (3)

Ships within 25 days

Schneider Electric 4 NO + 1 NC DC Tesys Control Relay, CA3KN40__ Series

By Schneider Electric

₹1,887 - ₹2,005

You save ₹340!

14.5% OFF

The Schneider Electric CA3KN40__ Series DC Control Relay is a versatile and reliable component designed for industrial control applications. Featuring four normally open (NO) and one normally closed (NC) contacts, this relay offers flexibility in configuring circuits for various control needs. Built with Schneider Electric's renowned quality and durability, this relay ensures long-term performance even in demanding environments. Its compact design allows for easy integration into control panels and systems, saving valuable space. With a focus on efficiency and safety, this relay provides reliable switching capabilities for DC circuits, offering peace of mind to operators and engineers. The combination of NO and NC contacts allows for diverse control strategies, enhancing the adaptability of the relay to different applications. Whether used in manufacturing, automation, or other industrial settings, the Schneider Electric CA3KN40__ Series DC Control Relay delivers consistent and dependable performance. It exemplifies Schneider Electric's commitment to providing innovative solutions for industrial control and automation needs, empowering businesses to optimize their operations effectively.

Auxiliary Contacts : 4NO + 0NC

Type of Product : DC Control Relay

Pole : 2

Series : TeSys

Features : Conformity to International Standard: IEC, UL, CSA

Explore other Variants (2)

Ships within 25 days

Schneider Electric 3 A 4 C/O Without Push-Button Miniature Plug-in Relay, RXM4LB_ Series

By Schneider Electric

₹471 - ₹518

The Schneider Electric 3 A 4 C/O Without Push-Button Miniature Plug-in Relay is a compact and versatile control device designed for switching applications in industrial and commercial environments. Manufactured by Schneider Electric, a global leader in energy management and automation solutions, this relay offers reliable performance and ease of installation. With a current rating of 3 A and four changeover (C/O) contacts, this miniature plug-in relay provides robust switching capabilities for various automation and control tasks. It is suitable for controlling electrical circuits, such as motors, lights, heaters, and more. Featuring a plug-in design, the relay can be easily installed into compatible relay sockets without the need for wiring or soldering, reducing installation time and complexity. Its compact size and durable construction make it suitable for use in control panels, enclosures, and machinery. The Schneider Electric 3 A 4 C/O Without Push-Button Miniature Plug-in Relay is an ideal solution for applications requiring reliable and efficient switching of electrical loads.

Type of Product : Miniature Plug-in Relay

Explore other Variants (3)

Ships within 25 days

Schneider RXM2LB2P7 Electric Miniature Relay Optimum 2 Co 230VAC

By Schneider Electric

₹400

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 5A, control circuit voltage of 230 V AC 50/60 Hz. It also offers a mechanical indicator where an orange flag indicates the relay contact status. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE. RXM relay need to be used with a RXZE socket RXZE1M2C. To protect against vibrations, metal clamp RXZ410/RXZ420 can be added to the socket. It is sold in lots of 10 and reference includes relay only. The RXMLB plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (5A), 4 CO (3A) contacts.

Add to Cart Buy Now

Ships within 25 days

Schneider Electric AC 50/60 Hz DC Under Voltage Release MN, 336_ Series

By Schneider Electric

₹7,197 - ₹7,433

The Schneider Electric AC 50/60 Hz DC Under Voltage Release MN is a component used in electrical distribution systems to provide protection against voltage anomalies, specifically under-voltage conditions. Designed for both alternating current (AC) and direct current (DC) circuits, this device plays a crucial role in ensuring the safe and reliable operation of electrical equipment. Under-voltage releases (UVRs) like the Schneider Electric AC 50/60 Hz DC MN are typically integrated into circuit breakers or switchgear. Their primary function is to monitor the voltage levels in the electrical network. When the voltage drops below a predefined threshold, indicating a potential risk to the connected equipment or system, the UVR activates. It then triggers the disconnection or shutdown of the circuit breaker or switchgear to prevent damage or malfunction. Key features of the Schneider Electric AC 50/60 Hz DC Under Voltage Release MN include its compatibility with both AC and DC power systems, ensuring versatility in various industrial and commercial applications. It is designed to be reliable and durable, capable of withstanding the rigors of continuous operation in demanding environments. Overall, the Schneider Electric AC 50/60 Hz DC Under Voltage Release MN is essential for maintaining the integrity and safety of electrical installations by promptly responding to under-voltage conditions and preventing potential damage or hazards. Its integration enhances the overall reliability and efficiency of electrical distribution systems.

Type of Product : Under Voltage Release MN

Range : ComPacT

Mounting Type : Fixed

Type : Voltage Release

Application : Control

Controls Type : Standard

Compatibility : ComPact NS630b-1600, ComPact NS1600b-3200

Explore other Variants (3)

Previous Next

Page 1 of 18 results
