| White Balance | Auto / Manual |
| Type of Product | Motorised Bullet Camera |
| Resolution | Main Stream @30fps: 5MP (2592x1944), 4MP (2592x1520), 3MP (2304x1296), 1080P (1920x1080), 960P (1280*960) | Sub Stream @30fps: 1080P (1920x1080), 720P (1280x720), VGA (640x480) | Third Stream @30fps: VGA (640x480), QVGA (320x240) |
| Model No | I-HIPB5PI-MV |
White Balance |
Auto / Manual |
Type of Product |
Motorised Bullet Camera |
Resolution |
Main Stream @30fps: 5MP (2592x1944), 4MP (2592x1520), 3MP (2304x1296), 1080P (1920x1080), 960P (1280*960) | Sub Stream @30fps: 1080P (1920x1080), 720P (1280x720), VGA (640x480) | Third Stream @30fps: VGA (640x480), QVGA (320x240) |
Model No |
I-HIPB5PI-MV |
IP Rating |
IPv6 |
IR Distance |
Up to 50 m |
Power Consumption |
IR OFF: 3-4 W, IR ON: 7-9 W |
Weight |
811 g |
Lens Type |
Motorised (Փ14) |
Digital Noise Reduction |
3D DNR |
Color |
White |
Minimum Illumination |
Color 0.004 lux @F1.6(AGC ON); B/W 0 lux @IR 0N |
Camera |
5 MP |
Ingress Protection |
IP67 |
Electronic Shutter Speed |
1/5-1/20000s |
Focal Length (Mm) |
2.8-12 mm |
Operating Conditions |
-35 to +60°C/Less than ≤95% RH |
Material |
Metal |
Audio |
1 Input (RCA), 1 Output (RCA) |
Certification |
CE,FCC,ROHS,BIS,ISO 9001,Essential Requirement (ER) by STQC |
Wide Dynamic Range |
True WDR |
Camera Resolution |
2592(H)x1944(V) Pixels |
Gain control |
Auto |
Ethernet |
RJ45 (10/100BASE-T) |
Backlight Compensation |
Off/On (5 Zone) |
Alarm |
1 Input, 1 Output |
Protocol |
TCP/IP, HTTP, HTTPS, DHCP, RTP/RTSP, SMTP, NTP, UPnP, SNMP, SFTP |
DORI Distance |
(2.8 mm) D-56.0 m, O-22.4 m, R-11.2 m, I-5.6 m | (12 mm) D-240 m, O-96.0 m, R-48.0 m, I-24.0 m |
Motion Detection |
Off/On (8 Level) |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Accurate Surveillance India Pvt Ltd |
Privacy Masking |
Off/On (4 Zone, Rectangle) |
Web Browser |
IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
Onboard Storage |
Micro SD Slot, up to 512GB |
Streaming Capability |
Triple-Stream (Main/Sub/Third) |
Bitrate Control Method |
CBR/VBR |
Hardware Reset |
Yes |
Video Quality Ajustment |
256 Kbps - 8 Mbps |
Day and Night |
IR Cut Filter with Auto Switch (Day/Night/Auto/Image/Schedule) |
Scanning Systems |
Progressive CMOS |
Angular Field of View |
Horizontal: 107-34°, Vertical: 55-19°, Diagonal: 134-38° |
Min. Object Distance |
0.2 m-INF |
Imaging Device |
1/2.7" |
Video Compression Format |
H.265+/H.265/H.264 |

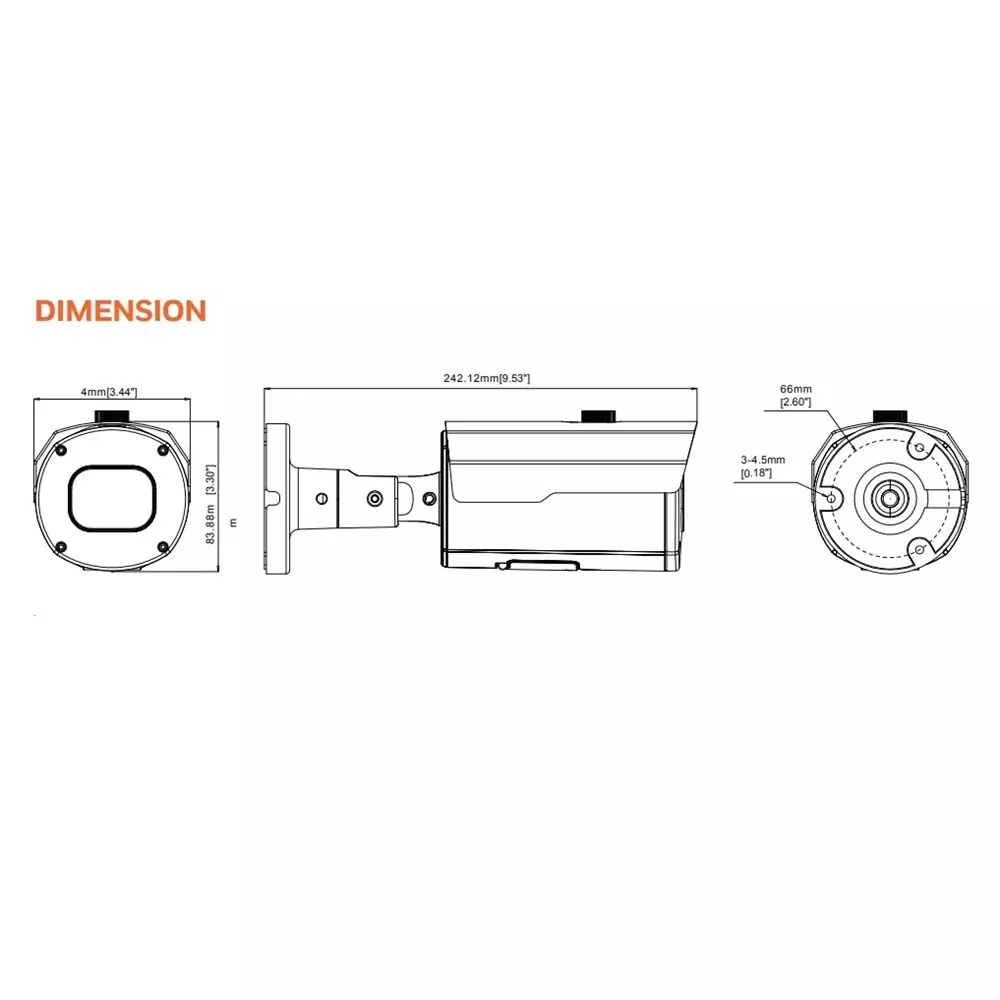

Dimensions (H x W x D) (mm) |
242x87.4x83.88 mm |
Security Mechanism |
IP Address Filter, Complicated Password, Authenticated Username and Password |
Max. Aperture Ratio |
F No. 1.8 (W)-3.3 (T) |
Smart Features |
Face Detection (FD), Human & Vehicle Detection (PD & VD), Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), Cross Counting (CC), Stationary Object Detection (SOD), Heat Map (HM), Crowd Density Detection (CD), Queue Length Detection (QD), Rare Sound Detection (RSD) |
Input Voltage/Current |
D12 V/POE (IEEE802.3af) |
Streaming Method |
Unicast/Multicast |
Application Programming Interface |
ONVIF (Profile S/G/T/M) |
