| Lens | 2.7-13.5 mm |

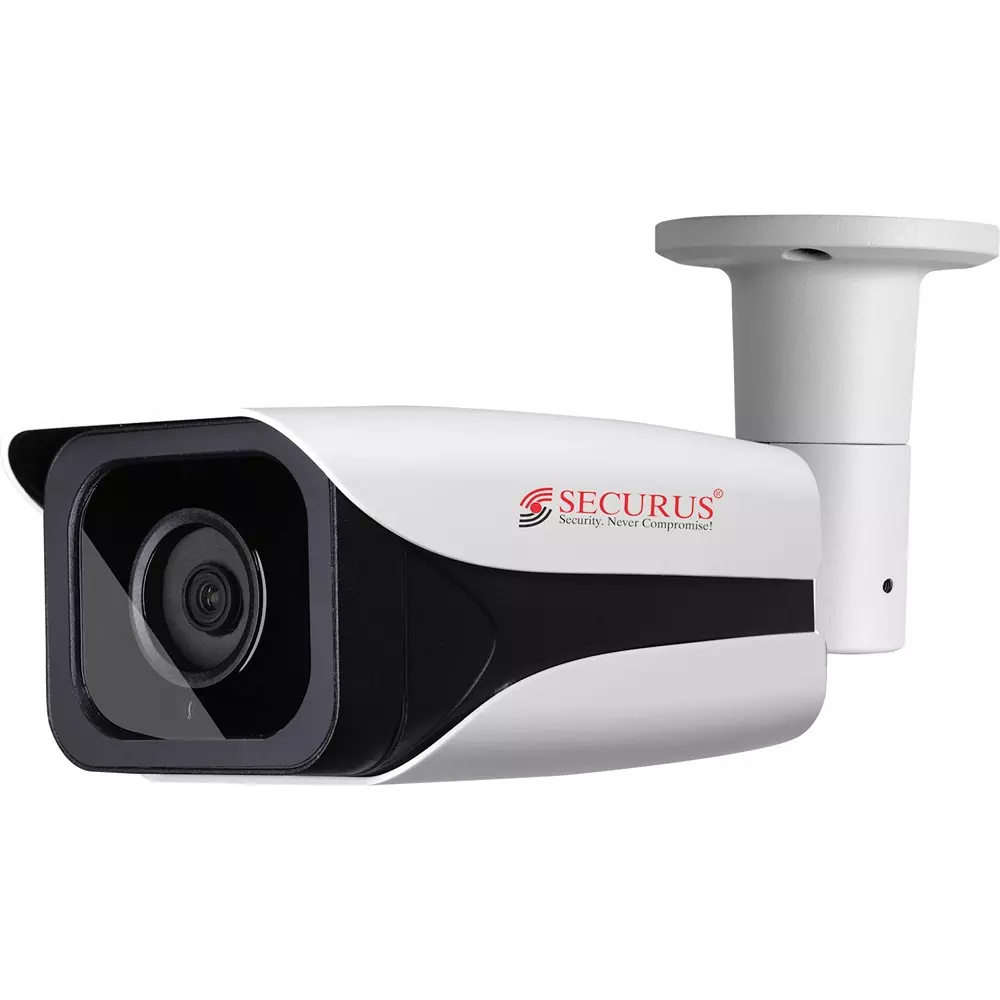

| Type of Product | Network CCTV Camera |
| Model No | SS-NC50L5CP-QMPX-VF-M8(4K) |
| IP Rating | IP67 |
Lens |
2.7-13.5 mm |
Type of Product |
Network CCTV Camera |
Model No |
SS-NC50L5CP-QMPX-VF-M8(4K) |
IP Rating |
IP67 |
IR Distance |
30 to 100 m |
Power Consumption |
≤3.6 W Without IR, ≤8 W With IR |
Weight |
≤1.0 Kg |
Lens Type |
Motorized Auto-Focus Lens |
Dimension |
180 mm x 70 mm x 70 mm |
Color |
White & Black |
Image Sensor |
1/2.7 inch (9.41 mm) Sony STARVIS CMOS Sensor |
Minimum Illumination |
Color: 0.0001 Lux@F1.2, B/W: 0.0001 Lux@F1.2, AGC ON, 0 Lux with IR |
Lens Mount |
2.8 mm to 12.0 mm/2.7 mm to 13.55 mm/6.0 mm to 22.0 mm/5.0 mm to 50.0 mm |
Power Supply |
DC 12 V, PoE (IEEE802.3af)(Class 0) |
Shutter Speed |
1/25 s to 1/100000 s |
Camera |
8.0 MP |
Warranty Duration |
2 Year |
Series |
Motorized Varifocal Series |
Network Protocol |
HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP |
Material |
Aluminum + ABS |
Audio Compression |
G.711 |
Features |
Human Detection, Face Detection, Vehicle Detection, Active Deterrence, Line Crossing, Trip Wire |
sd card option |
Supported (Max: 512 GB) (Optional) |
WDR |
≤140 db |
Certification |
CE, FCC, RoHS, BIS |
Day/Night Mode |
Auto (ICR) / Color / Black & White |
Video Bit Rate |
128 KBPS to 8 MBPS |
Digital Zoom |
Supported (Max: 16X) |
Audio Input |
Yes, 1 Ch, 2 Vp-p 1 kᲲ Impedance (Optional) |
Audio Output |
Yes, 1 Ch, 16 Ჲ Impedance (Optional) |
IR LED |
4 Pcs High Power LED Array |
Video Streaming |
Triple Stream |
Operation Temperature |
-10°C to +65°C |
Video Resolution |
Main Stream: 3840 x 2160 @15FPS, 2880 x 1616 @25/30FPS, 2560 x 1440 @25/30FPS, 1920 x 1080 @25/30 FPS, Sub Stream 1: 800 x 448 @25/30FPS |
Browser |
Supports (Chrome, Mozilla, Edge, Opera) |
Country of Origin |
India |
Network Interface |
10/100 MBPS RJ45 Connector |
Name of Manufacturer/Packer/Importer |
Securus South India Coordinator |
Video Encoding |
H.265AI/H.265+/H.265/H.264+/H.264 |
Image Settings |
Mirror Image/Reverse/Color Settings |
Shutter Type |
Manual/Auto |
Housing Material |
Aluminium + ABS |
Image Size |
3840x2160 (8.0MP), 2880x1616 (5.0MP), 2560x1440 (4.0MP), 2304x1296 (3.0MP), 1920x1080 (2.0MP) |
Operation humidity |
0% to 90% |
Onvif |
ONVIF Conformant |
Alarm & Indication |
Motion detection, HDD full, HDD error, IP Address conflict, Illegal Login, Video Loss |
