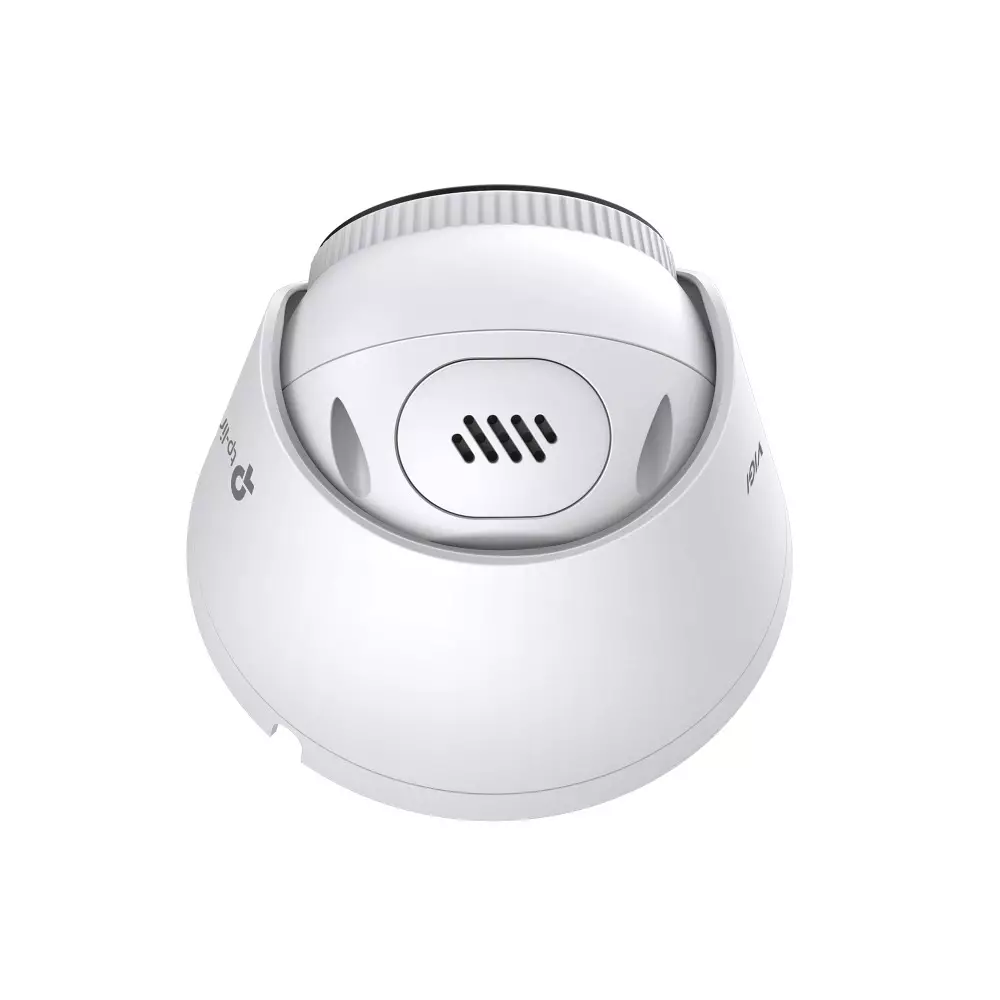

| Type of Product | Turret Network Camera |
| Model No | InSight S455 |
| IR Distance | Upto 30 m (98 ft) |
| SNR | ≥ 52 dB |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Turret Network Camera |
Model No |
InSight S455 |
IR Distance |
Upto 30 m (98 ft) |
SNR |
≥ 52 dB |
Lens Type |
Fixed Focal Lens |
Color |
White |
Operating Temperature |
-30 to 60°C |
Image Sensor |
1/2.7 inch Progressive Scan CMOS |
Minimum Illumination |
0.005 Lux; 0 Lux with IR Light |
Lens Mount |
M12*P 0.5 |
Power Supply |
12 V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max. 12 W |
Shutter Speed |
1/3 to 1/10000 s |
Slow Shutter |
Yes |
Day/Night Switch |
Unified/Scheduled/Auto |
Camera |
5 MP |
Aperture |
F1.6 |
Maximum Resolution |
2880x1620 Pixels |
Operating Humidity |
95% or Less (Non-Condensing) |
Focal Length (Mm) |
2.8/4 mm |
Series |
VIGI |
Network Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
Main Stream |
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps@50 Hz & 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps @60 Hz | Resolution: 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264 |
Wide Dynamic Range |
120 dB |
Day/Night Mode |
IR Cut Filter |
Video Bit Rate |
Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps |
IR Wavelength |
850 nm |
Audio Sample Rate |
8 KHz |
Sub-Stream |
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps@50 Hz & 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps @60 Hz | Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 |
audio bit rate |
64 Kbps (G.711 alaw) |
Protection |
IP67 Weatherproof |
DORI Distance |
2.8 mm - Detect: 64 m (210 ft), Observe: 27 m (89 ft), Recognize: 13 m (43 ft), Identify: 6 m (20 ft) | 4 mm - Detect: 80 m (262 ft), Observe: 33 m (108 ft), Recognize: 16 m (52 ft), Identify: 8 m (26 ft) |
FOV |
2.8 mm - Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° | 4 mm: Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° |
Notes |
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps |
Country of Origin |
India |
Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Package Contains |
VIGI Network Camera, Quick Start Guide, Waterproof Cable, Attachments, Mounting Accessories |
Bit Rate Control |
CBR, VBR |
Name of Manufacturer/Packer/Importer |
TP-Link |
Privacy Masking |
Up to 4 Masks |
Web Browser |
Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above |
Storage Humidity |
95% or Less (Non-Condensing) |
Onboard Storage |
Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
Storage Temperature |
-40 to 60°C |
Audio Communication |
Two-Way Audio |
Angle Adjustment Range |
Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360° |
Image Sensor (mm) |
68.6 mm Progressive Scan CMOS |
Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
Dimensions (L x W X H) (mm) |
111x111x83.7 mm |
Dimensions (L x W x H) (inch) |
4.4x4.4x3.3 inch |
