Ships within 30 days
View
View
View
View
| Material | Stainless Steel-304 |
| Country of Origin | India |
| Color | Silver |
| Size | 160 mm |
Material |
Stainless Steel-304 |
Country of Origin |
India |
Color |
Silver |
Size |
160 mm |
Type of Product |
Rolled Knuckle Spring Hinges |
Model No |
16046-02 |
Finish Type |
Electro Polish |
Type |
Opening Spring Hinges Long-Punched Pin |
Name of Manufacturer/Packer/Importer |
Steel-Smith |
Angle (Degree) |
270° |
Spring Material |
Stainless Steel-304 |
Closing Force |
M(0°): 0.9 N.m, M(90°): 0.86 N.m, M(180°): 0.6 N.m |

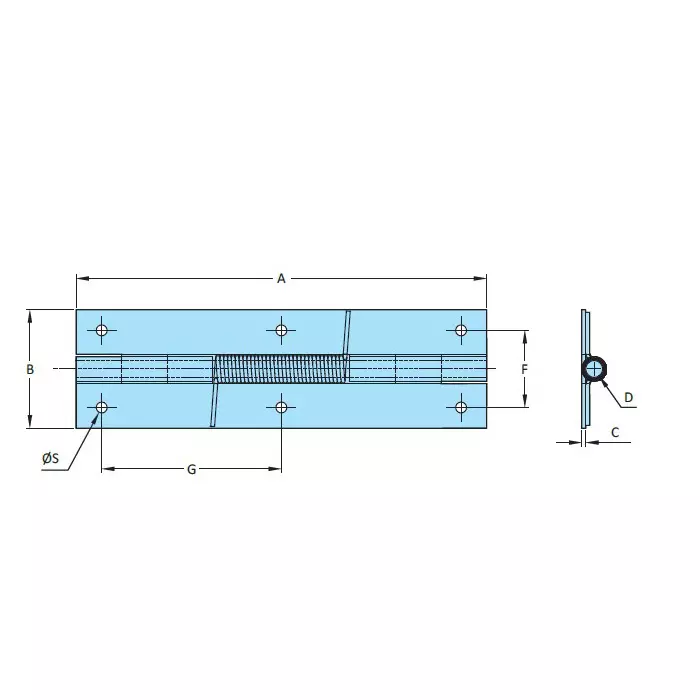

Dimension S |
4.2 mm |
Dimension A |
160 mm |
Dimension G |
70 mm |
Dimension F |
30 mm |
Dimension C |
3 mm |
Dimension B |
46 mm |
Dimension d |
6.5 mm |
