| Material | Stainless Steel Sheet (SUS304) |
| Country of Origin | Japan |

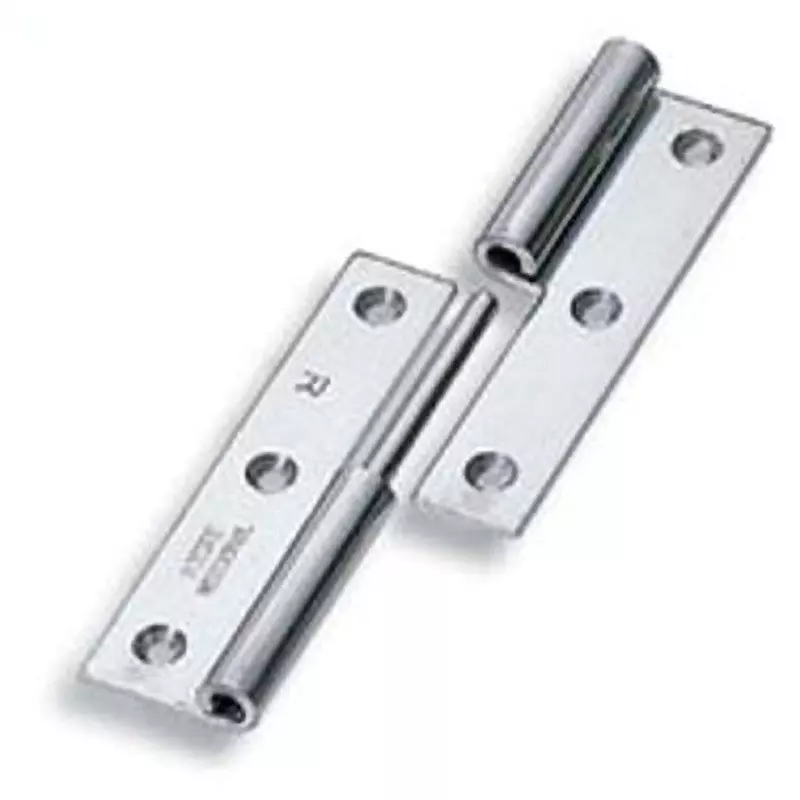

| Type of Product | Square Insertion / Removal Hinge |
| Model No | B-1004-2-L Perforated |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Stainless Steel Sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
Square Insertion / Removal Hinge |
Model No |
B-1004-2-L Perforated |
Weight |
40 g, 10 g (Reference Door for 2 Vertical Specifications) |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Mirror Buffing |
Monotaro ID |
61110482 |

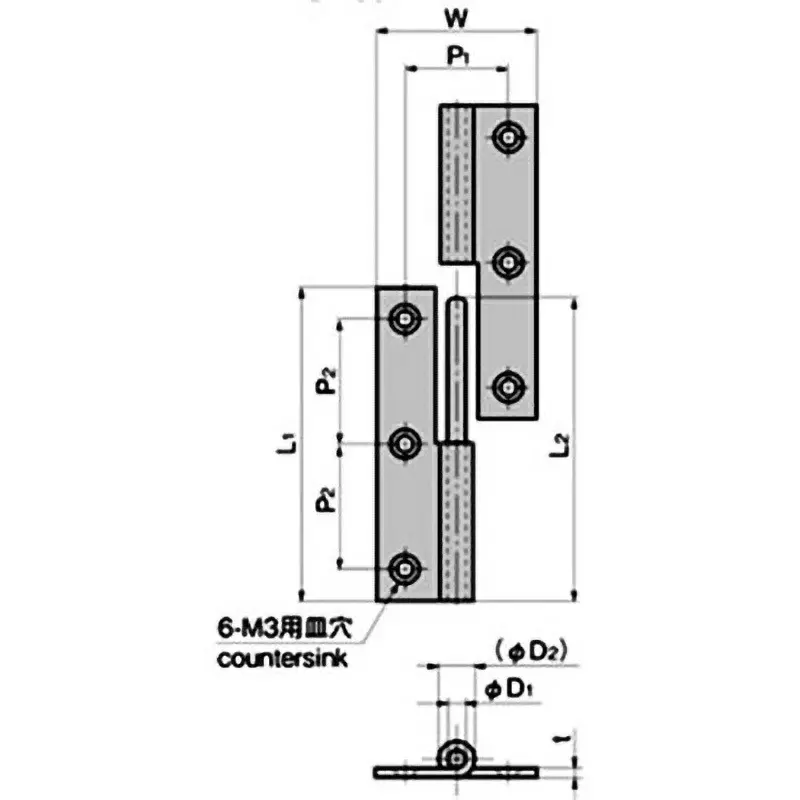

Dimensions w (mm) |
36 |
Dimension d2 (Φmm) |
7.3 |
TAKIGEN Code |
10565 |
Dimensions T (mm) |
1.5 |
Dimension d1 (Φmm) |
4 |
Dimensions L1 (mm) |
64 |
Dimensions l2 (mm) |
63 |
Dimension P2 (mm) |
24 |
Dimension P1 (mm) |
24 |
Left or Right |
Left Type |
with or without Hole |
Autumn |
