| Material | Cold Rolled Stainless Steel Sheet (SUS304) |
| Country of Origin | Japan |
| Type of Product | Leaf Hinge |
| Model No | B-1031-1 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
Leaf Hinge |
Model No |
B-1031-1 |
Weight |
170 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Buffing |
Monotaro ID |
61111146 |

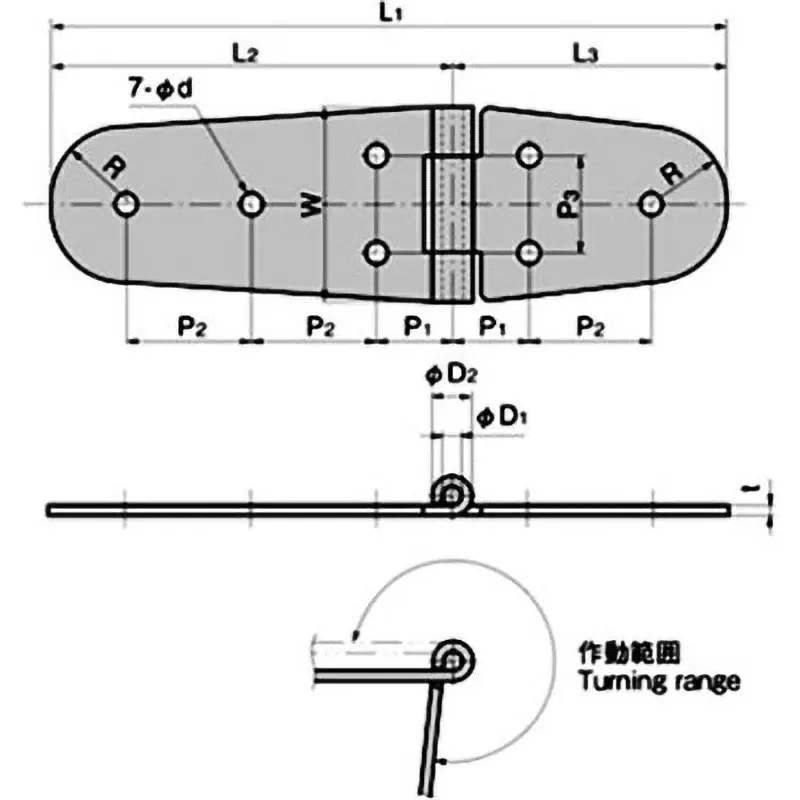

Dimensions w (mm) |
50 |
Dimension d2 (Φmm) |
10 |
TAKIGEN Code |
11473 |
Dimensions T (mm) |
2.5 |
Dimension d1 (Φmm) |
5 |
Dimensions L1 (mm) |
190 |
Dimensions l2 (mm) |
115 |
Dimension L3 (mm) |
75 |
Dimensions R (mm) |
18 |
with or without Hole |
None |
