| Country of Origin | Japan |

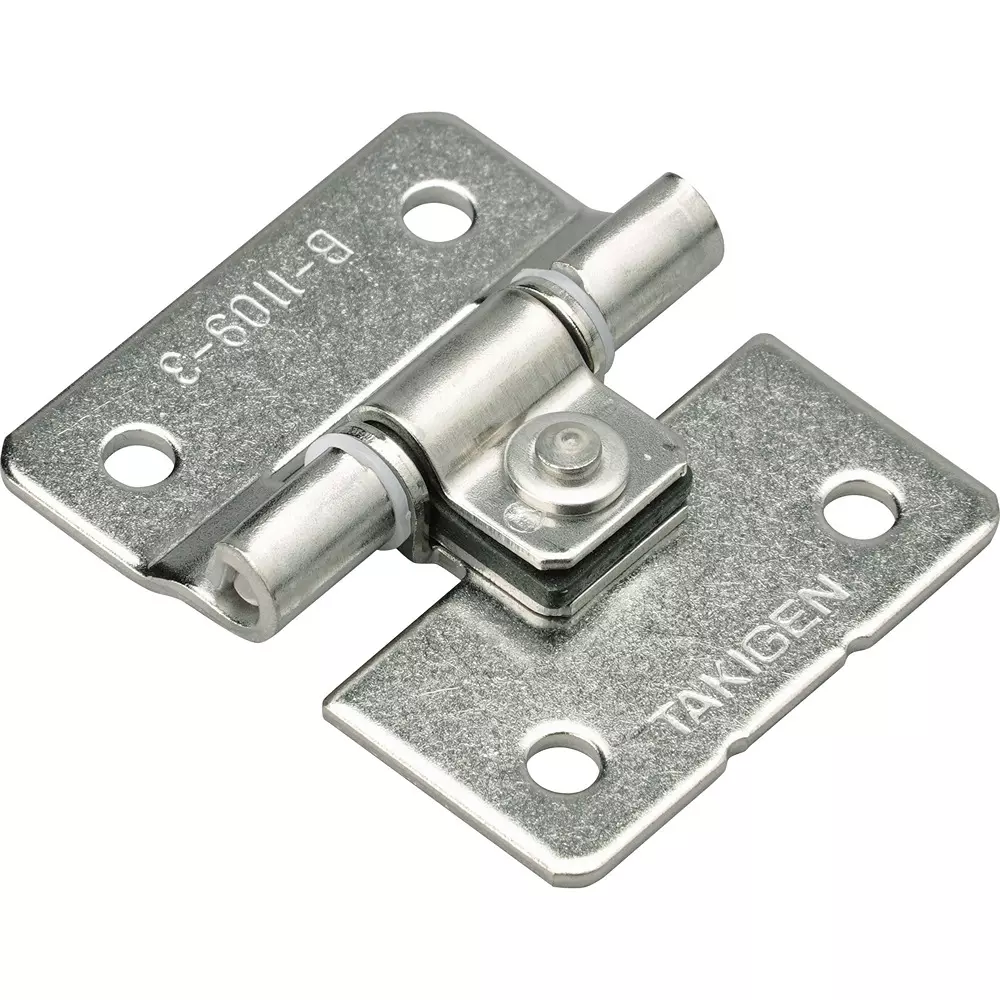

| Type of Product | Flat Torque Hinge |
| Model No | B-1109-3 |
| Weight | 14 g |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Type of Product |
Flat Torque Hinge |
Model No |
B-1109-3 |
Weight |
14 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Gloss Barrel Polishing |
Monotaro ID |
61112442 |

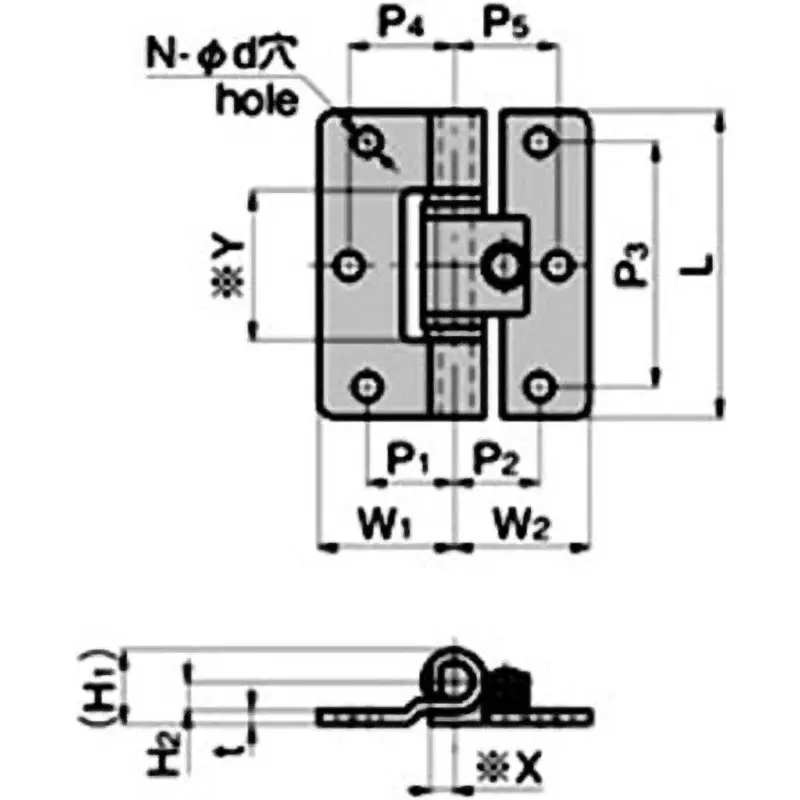

Dimension L (mm) |
30 |
Dimensions T (mm) |
1.2 |
Dimension P2 (mm) |
15 |
Dimension P1 (mm) |
10 |
Main Unit Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Dimensions W2 (mm) |
20 |
Dimension P3 (mm) |
20 |
Dimensions W1 (mm) |
15 |
Dimension n (mm) |
4 |
Dimensions H2 (mm) |
3 |
Dimensions H1 (mm) |
7.5 |
Plug Material |
Polyacetal (POM) |
Dimension X (mm) |
2.5 |
Operating Temperature Range |
-10 to +45 |
Dimension Y (mm) |
14.2 |
