| Material | Cold Rolled Stainless Steel Sheet (SUS304) |
| Country of Origin | Japan |

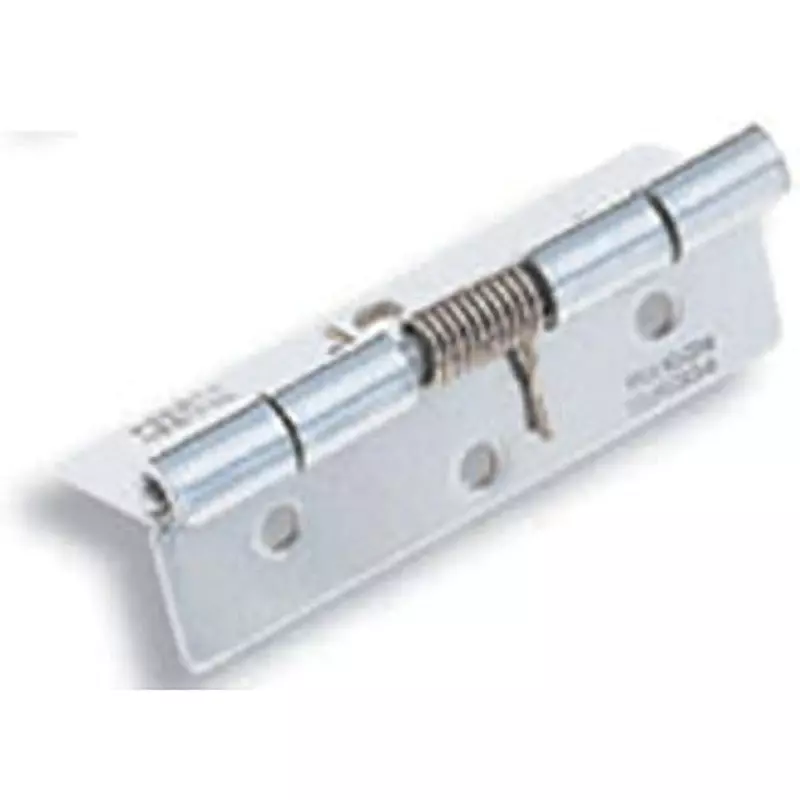

| Type of Product | Hinge with Spring |
| Model No | B-1146-2 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
Hinge with Spring |
Model No |
B-1146-2 |
Weight |
86 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Glossy Barrel Polishing |
Monotaro ID |
61113027 |
Import Country |
Direct Import from Japan |

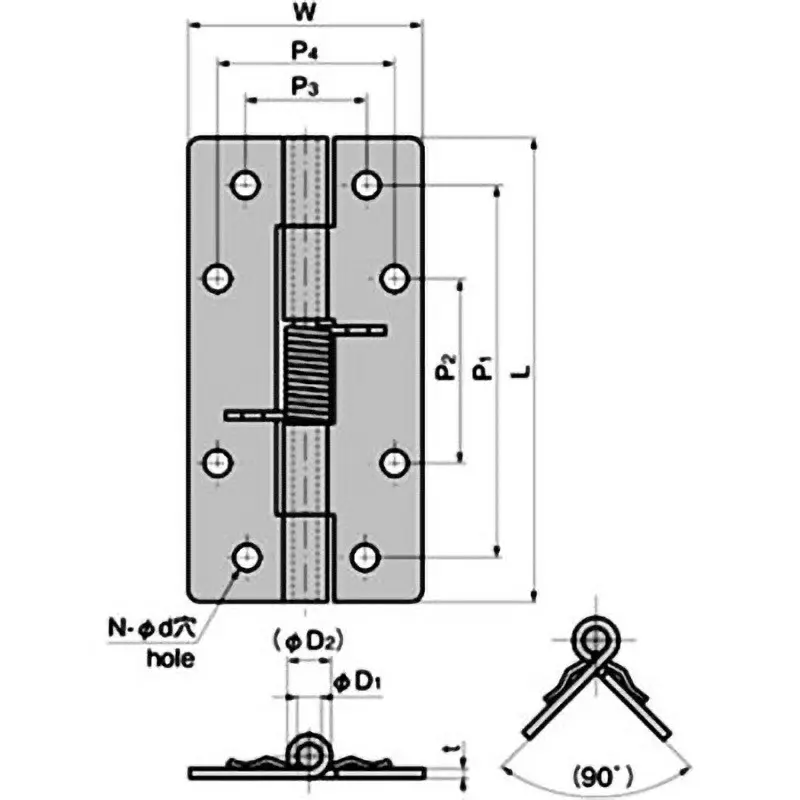

Dimensions w (mm) |
50 |
Dimension d2 (Φmm) |
9.5 |
Dimension L (mm) |
80 |
TAKIGEN Code |
11283 |
Dimensions T (mm) |
2 |
Dimension d1 (Φmm) |
5 |
Dimension P1 (mm) |
50 |
Dimension P3 (mm) |
26 |
Dimension P4 (mm) |
38 |
Dimension n (mm) |
6 |
Rated Torque (cNm) |
90°:55.1, 180°:32.1 |
