| Country of Origin | Japan |

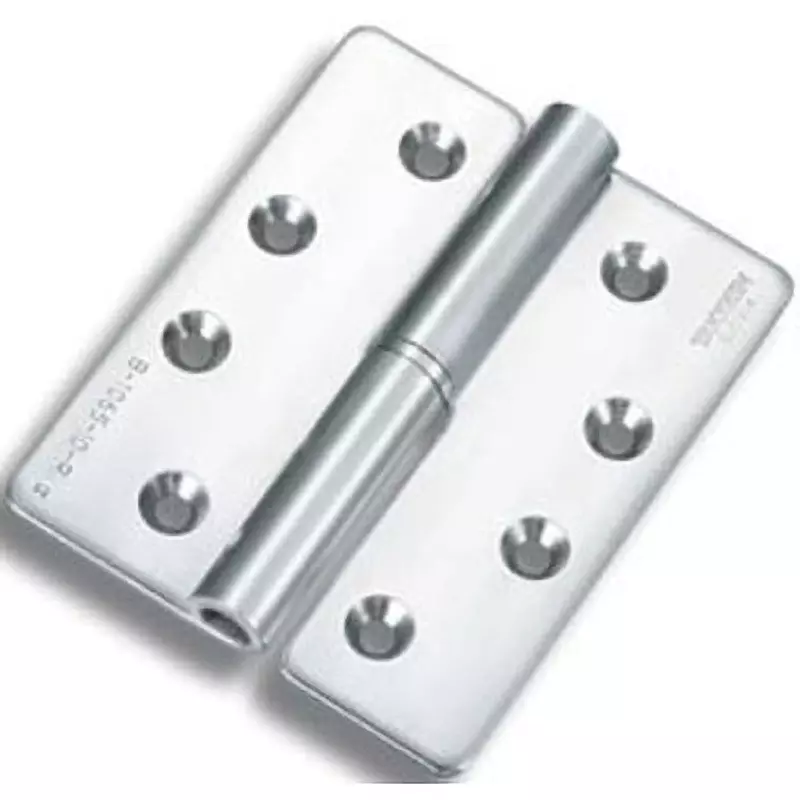

| Type of Product | Heavy Duty Hinge |
| Model No | B-1065-14-L |
| Weight | 15 Kg (Reference Door When Using 2 Vertical) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Type of Product |
Heavy Duty Hinge |
Model No |
B-1065-14-L |
Weight |
15 Kg (Reference Door When Using 2 Vertical) |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Mirror Buffing |
Monotaro ID |
61111803 |

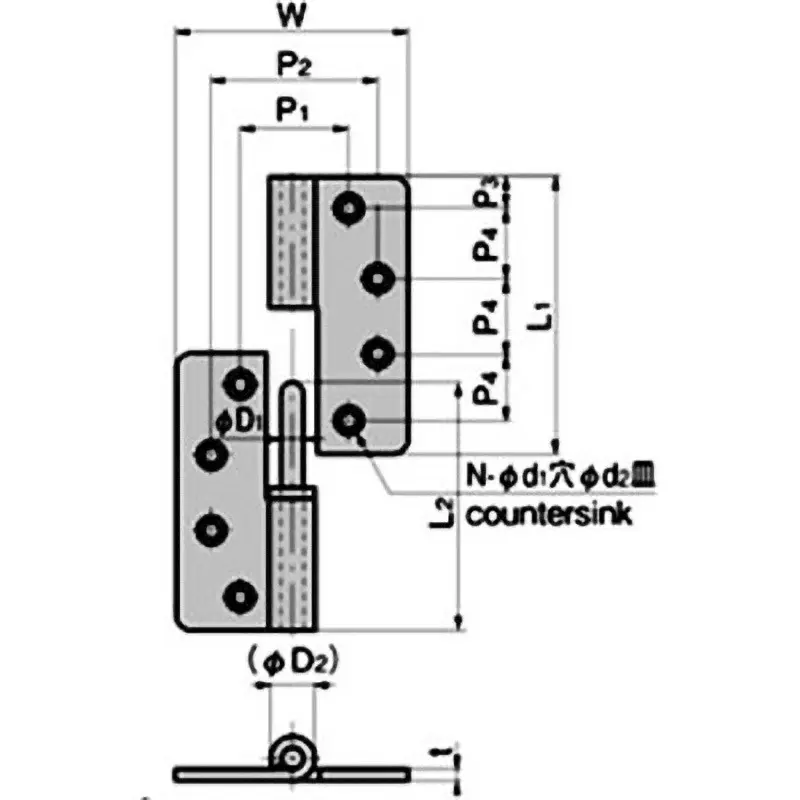

Dimensions w (mm) |
40 |
Dimension d2 (Φmm) |
10.5 |
TAKIGEN Code |
13043 |
Dimensions T (mm) |
2.5 |
Dimension d1 (Φmm) |
5 |
Dimensions L1 (mm) |
50 |
Dimensions l2 (mm) |
45 |
Dimension P4 (mm) |
30 |
Left or Right |
Left Type |
Number of Holes |
4 |
