| Material | Aluminum Alloy (ADC) |
| Country of Origin | Japan |

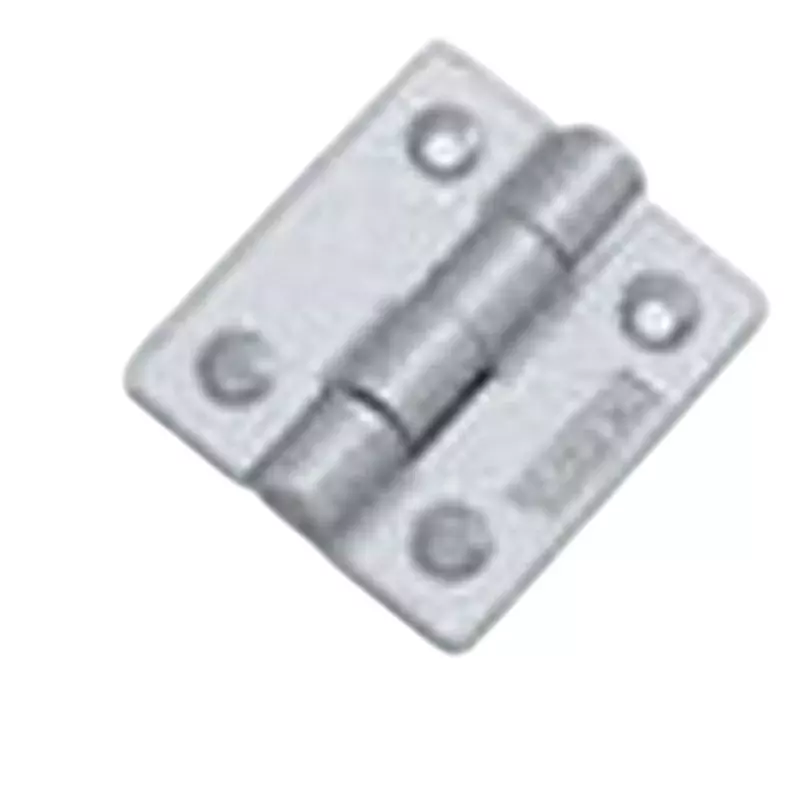

| Type of Product | Flat Hinge |
| Model No | B-78-A-13 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Aluminum Alloy (ADC) |
Country of Origin |
Japan |
Type of Product |
Flat Hinge |
Model No |
B-78-A-13 |
Weight |
38 g, 10 g (Reference Door When Using 2 Vertical) |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Silver Satin Paint |
Monotaro ID |
61106447 |

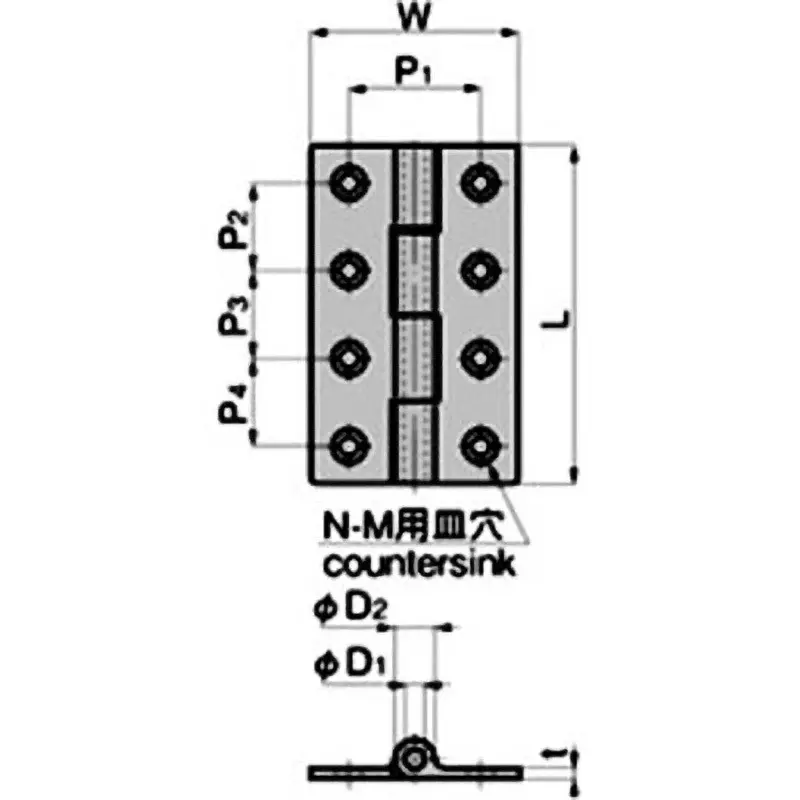

Dimensions w (mm) |
50 |
Dimension d2 (Φmm) |
10 |
Dimension L (mm) |
65 |
TAKIGEN Code |
11444 |
Dimensions T (mm) |
3 |
Dimension d1 (Φmm) |
5 |
Dimension P2 (mm) |
23 |
Dimension M |
M4 |
Dimension P1 (mm) |
30 |
Dimension P3 (mm) |
23 |
Dimension n (mm) |
6 |
No. of Mounting Holes |
3 |
