Ships within 25 days
View
View
View
View
| Country of Origin | Japan |
| Type of Product | Super Clean Hinge |
| Model No | B-214-4 |
| Weight | 29 g |
Country of Origin |
Japan |
Type of Product |
Super Clean Hinge |
Model No |
B-214-4 |
Weight |
29 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Bearing Material |
Stainless Steel (SUS440) |
Surface Finish Type |
Anodized and Clear Baking Finish |
Monotaro ID |
61108452 |
Import Country |
Direct Import from Japan |

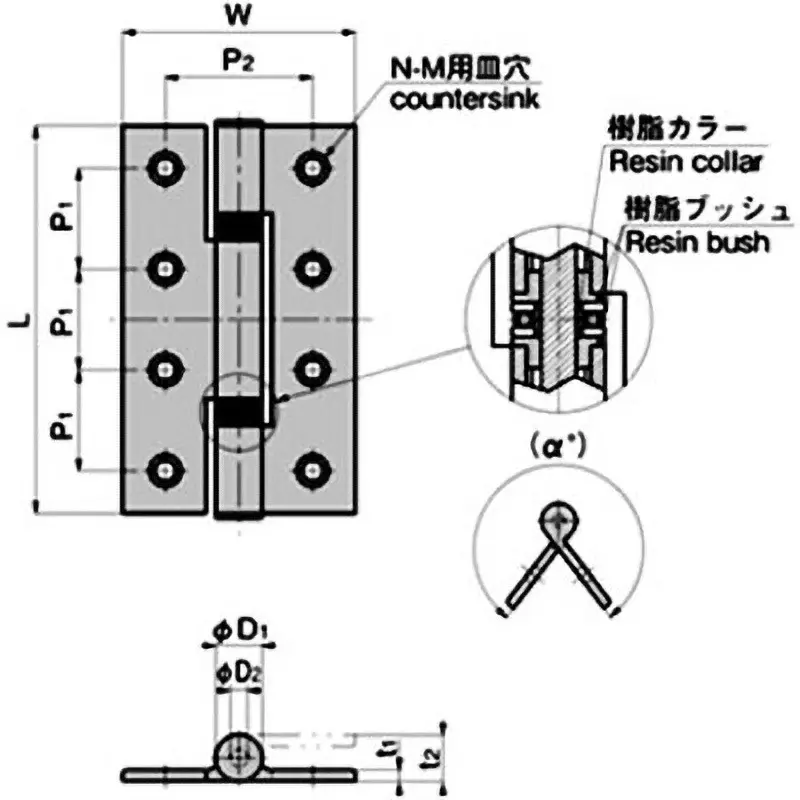

Dimensions w (mm) |
50 |
Dimension d2 (Φmm) |
3 |
Dimension L (mm) |
65 |
TAKIGEN Code |
13114 |
Dimension d1 (Φmm) |
9 |
Dimension P2 (mm) |
30 |
Dimension M |
4 |
Dimension P1 (mm) |
23 |
Material (Fan Blade) |
Aluminum Alloy Extruded Material (A6N01S) |
Dimension n (mm) |
6 |
Dimension α(°) |
280 |
Dimension t1 (mm) |
2.5 |
Material (Plastic Part) |
Polyacetanol (POM) |
Dimension t2 (mm) |
9 |
