| Country of Origin | Japan |
| Type of Product | Torque Hinge with Spring |
| Model No | B-1346-1 |
| Weight | 580 g, Door: 10 g |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Type of Product |
Torque Hinge with Spring |
Model No |
B-1346-1 |
Weight |
580 g, Door: 10 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Monotaro ID |
61113368 |
Import Country |
Direct Import from Japan |

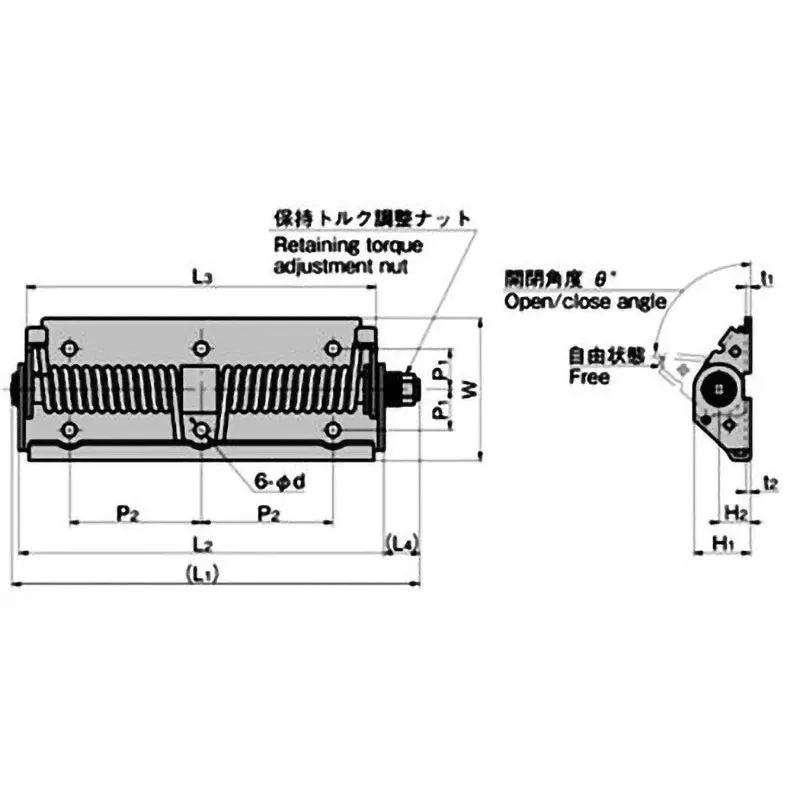

Dimensions w (mm) |
70 |
Length (mm) |
Door: 500 |
Dimensions L1 (mm) |
201 |
Dimensions l4 (mm) |
18 |
Dimensions l2 (mm) |
180 |
Dimension P2 (mm) |
65 |
Standard Color |
Ivory (B-1346-PC) |
Dimension P1 (mm) |
20 |
Main Unit Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Dimension L3 (mm) |
172.5 |
Dimensions H2 (mm) |
15.5 |
Dimensions H1 (mm) |
28 |
Dimension t1 (mm) |
2.5 |
Dimension t2 (mm) |
2.5 |
Cover Material |
Shaft Cover: Polyacetal (POM), Special Cover (B-1346-PC): Polypropylene (PP) |
Torque Adjustment Range (Nm) |
Hold: 0-4.9 |
Maximum Torque (Nm) |
Spring: 11.8 |
