| Country of Origin | Japan |
| Type of Product | Back Hinge |
| Model No | B-8-11 |
| Weight | 25 Kg (Reference Door for 2 Vertical Specifications) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Type of Product |
Back Hinge |
Model No |
B-8-11 |
Weight |
25 Kg (Reference Door for 2 Vertical Specifications) |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Blade: Antirust Treatment, Shaft: Zinc Plating Chromate Treatment (MFZn-C) |
Monotaro ID |
61105284 |

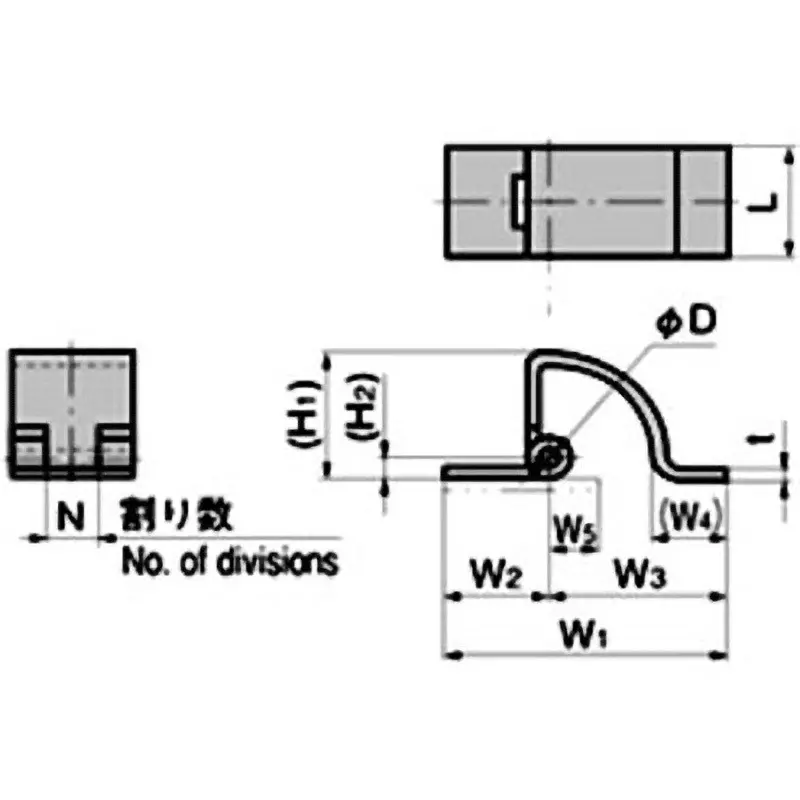

Dimension L (mm) |
65 |
TAKIGEN Code |
10065 |
Dimensions T (mm) |
3.2 |
Dimension D (Φmm) |
6 |
Material (Fan Blade) |
Steel Plate Cold Commercial (SPCC) |
Dimensions W2 (mm) |
28 |
Dimension W3 (mm) |
57 |
Dimensions W1 (mm) |
85 |
Dimension n (mm) |
5 |
Dimensions H2 (mm) |
6.4 |
Dimensions H1 (mm) |
43 |
Dimension W4 (mm) |
25 |
Dimension W5 (mm) |
27 |
