| Material | Body: Cold Rolled Stainless Steel Plate (SUS304), Shaft Cover: Polyacetal (POM) |
| Country of Origin | Japan |
| Type of Product | Torque Hinge with Spring |
| Model No | B-1346-2 |
Material |
Body: Cold Rolled Stainless Steel Plate (SUS304), Shaft Cover: Polyacetal (POM) |
Country of Origin |
Japan |
Type of Product |
Torque Hinge with Spring |
Model No |
B-1346-2 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Barrel Polishing |
Monotaro ID |
62806345 |
Import Country |
Direct Import from Japan |

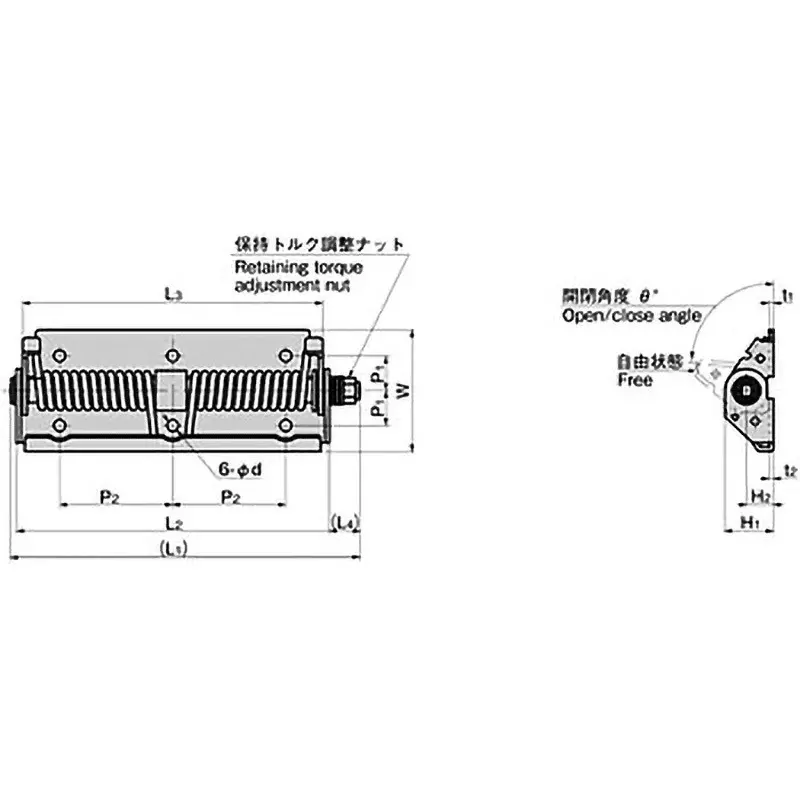

Dimensions w (mm) |
70 |
TAKIGEN Code |
13285 |
Dimensions L1 (mm) |
108 |
Dimensions l4 (mm) |
14.5 |
Dimensions l2 (mm) |
89 |
Dimension L3 (mm) |
82 |
Dimensions H2 (mm) |
15.5 |
Dimensions H1 (mm) |
28 |
Dimension t1 (mm) |
2 |
Dimension t2 (mm) |
2.5 |
Torque Adjustment Range (Nm) |
0 to 3.9 |
Torque (Nm) |
Maximum Spring: 3.9 |
Dimension θ |
100° |
