| Material | Aluminum Alloy Extruded Material (A6N01S) |
| Country of Origin | Japan |
| Type of Product | Bushing Hinge |
| Model No | B-211-7 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Aluminum Alloy Extruded Material (A6N01S) |
Country of Origin |
Japan |
Type of Product |
Bushing Hinge |
Model No |
B-211-7 |
Weight |
280 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Alumite Treatment |
Monotaro ID |
61108425 |
Import Country |
Direct Import from Japan |

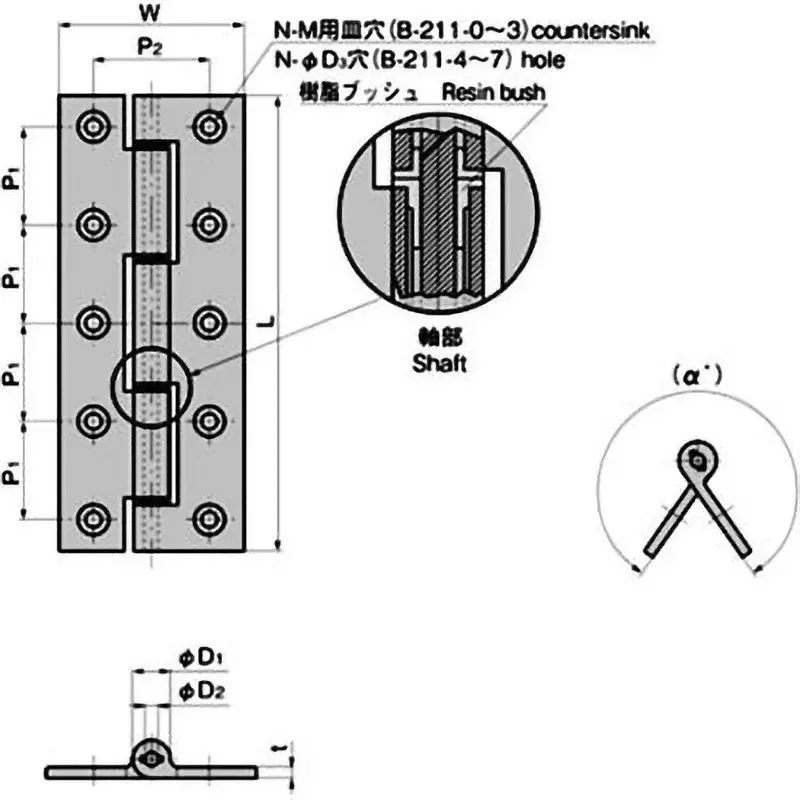

Dimensions w (mm) |
32 |
Dimension d2 (Φmm) |
3.5 |
Dimension L (mm) |
40 |
TAKIGEN Code |
12794 |
Dimensions T (mm) |
2.5 |
Dimension d1 (Φmm) |
9 |
Dimension P2 (mm) |
22 |
Dimension P1 (mm) |
24 |
Dimension n (mm) |
4 |
Dimension α(°) |
280 |
Dimension d3 (Φmm) |
3.2 |
